/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/01536ET3E215HP-W22 WEG 15HP P-Base Pump Electric Motor, 3600RPM

Product ID: 01536ET3E215HP-W22

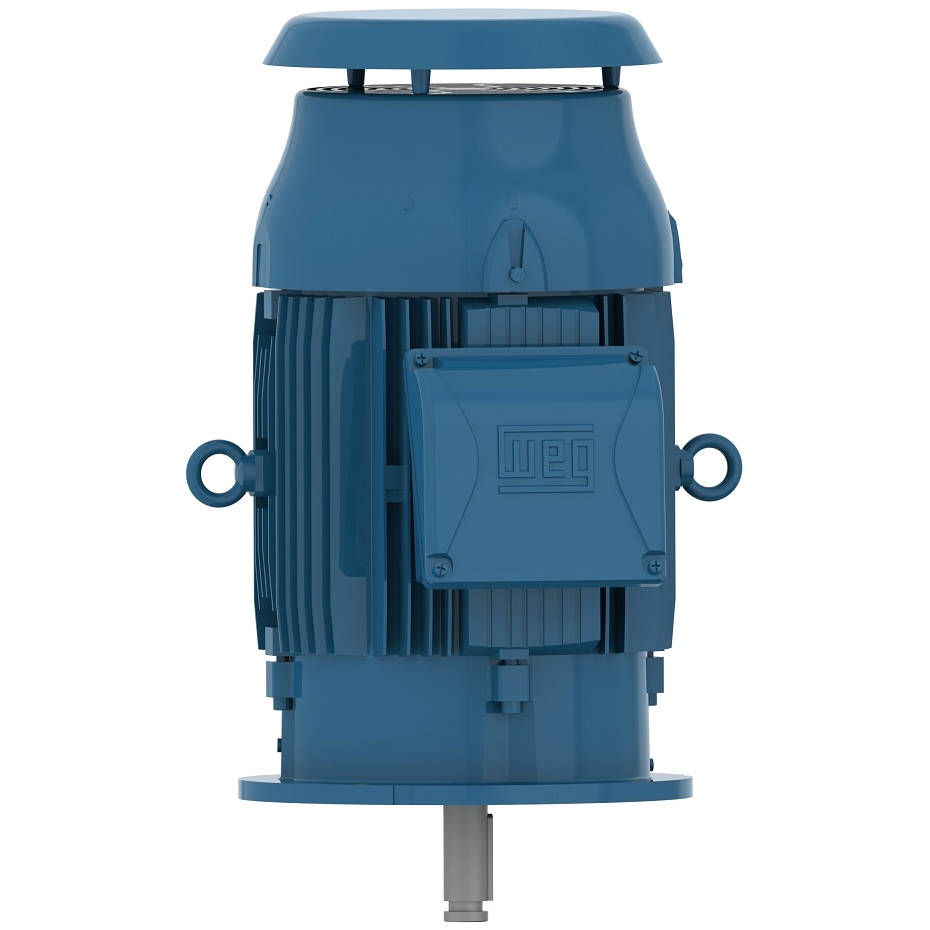

01536ET3E215HP-W22 WEG 15HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3E215HP-W22

Selected accessories will also be added to cart

$1,680.00 / Each

Quantity:

IC411 - TEFC, IP55, 215HP Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 13501990, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-1/8" Shaft

Details
Purchase Components

Electric Motors

Frame	215HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	34.0/17.0 A
L. R. Amperes	258/129 A
LRC	7.6x(Code H)
No load current	10.0/5.00 A
Rated torque	22.4 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	215HP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	14.4 A
L. R. Amperes	124 A
LRC	8.6x(Code K)
No load current	4.89 A
Rated torque	17.9 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.1	90.1

Power factor

50%	75%	100%
0.72	0.82	0.88

Frame	215HP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	400 V
Rated current	14.1 A
L. R. Amperes	133 A
LRC	9.4x(Code L)
No load current	5.56 A
Rated torque	17.9 ft.lb
Locked rotor torque	320 %
Breakdown torque	380 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	90.1	90.1

Power factor

50%	75%	100%
0.68	0.79	0.85

Frame	215HP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	14.0 A
L. R. Amperes	140 A
LRC	10.0x(Code M)
No load current	6.15 A
Rated torque	17.9 ft.lb
Locked rotor torque	340 %
Breakdown torque	420 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	90.1	90.1

Power factor

50%	75%	100%
0.64	0.77	0.83

Frame	215HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	380 V
Rated current	20.6 A
L. R. Amperes	124 A
LRC	6.0x(Code F)
No load current	4.89 A
Rated torque	27.3 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.0	89.0

Power factor

50%	75%	100%
0.81	0.88	0.91

Frame	215HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	19.7 A
L. R. Amperes	132 A
LRC	6.7x(Code G)
No load current	5.56 A
Rated torque	27.2 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	89.5	89.7

Power factor

50%	75%	100%
0.78	0.86	0.90

Frame	215HP
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	415 V
Rated current	19.3 A
L. R. Amperes	139 A
LRC	7.2x(Code H)
No load current	6.15 A
Rated torque	27.1 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.6362 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.0	90.0

Power factor

50%	75%	100%
0.75	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
