/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Footless/01518XT3ER254TC WEG 15HP Explosion Proof Electric Motor, 1800RPM

Product ID: 01518XT3ER254TC

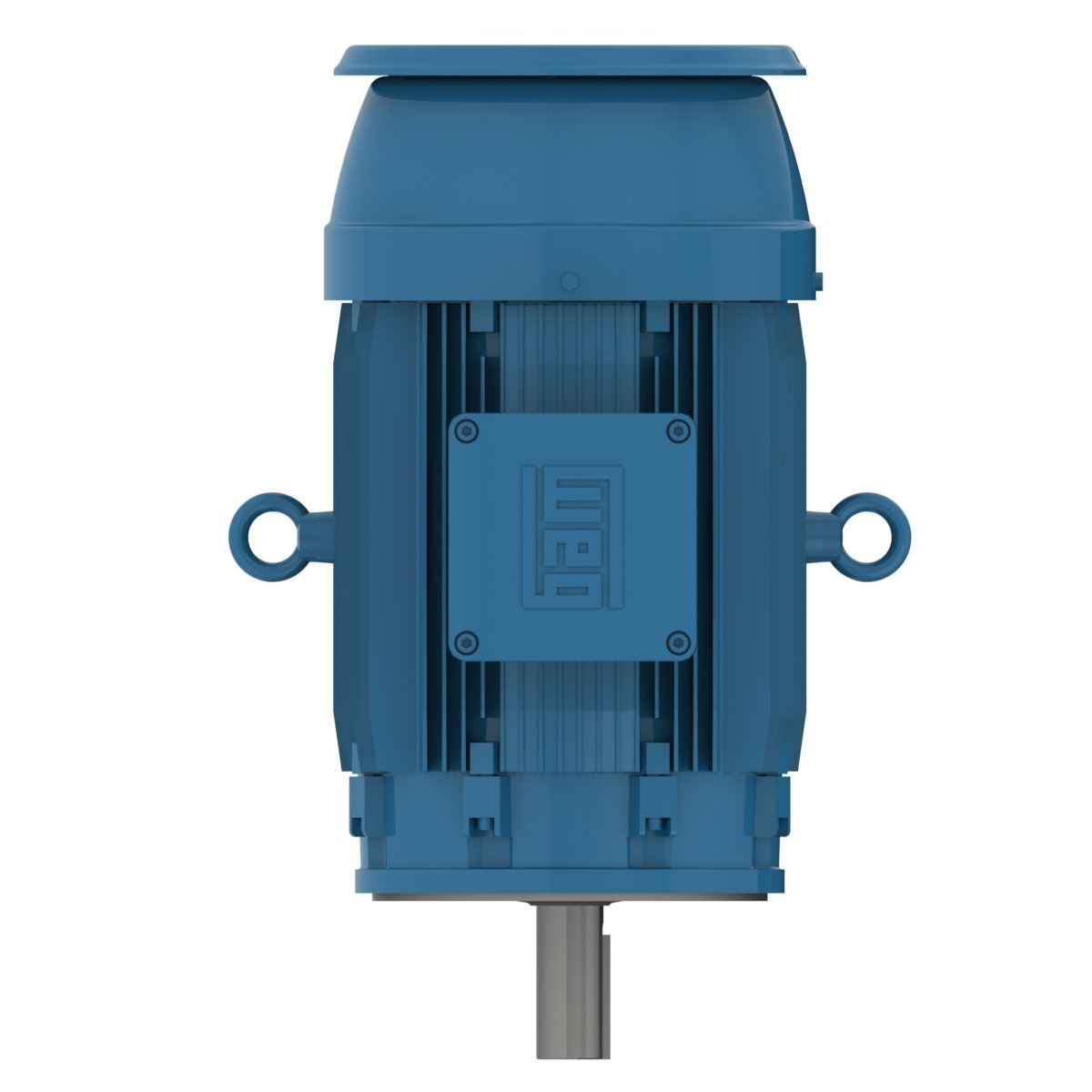

01518XT3ER254TC WEG 15HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518XT3ER254TC

Selected accessories will also be added to cart

$2,271.75 / Each

Quantity:

IC411 - TEFC, IP55, 254TC Frame, 208-230/460VAC 3-Phase 60Hz, 14407394, C-Face, Footless, Cast Iron Frame, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254TC
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	208-230/460 V
Rated current	40.7-36.8/18.4 A
L. R. Amperes	297-269/134 A
LRC	7.3x(Code J)
No load current	14.8-17.2/8.60 A
Rated torque	43.9 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	2.31 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	338 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.7	92.4

Power factor

50%	75%	100%
0.65	0.75	0.81

Frame	254TC
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	22.1 A
L. R. Amperes	128 A
LRC	5.8x(Code G)
No load current	8.40 A
Rated torque	53.4 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	2.31 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	338 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	90.2

Power factor

50%	75%	100%
0.71	0.79	0.84

Frame	254TC
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	21.3 A
L. R. Amperes	136 A
LRC	6.4x(Code G)
No load current	9.20 A
Rated torque	53.2 ft.lb
Locked rotor torque	250 %
Breakdown torque	250 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	2.31 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	338 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.0

Power factor

50%	75%	100%
0.68	0.77	0.82

Frame	254TC
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	20.8 A
L. R. Amperes	141 A
LRC	6.8x(Code H)
No load current	9.60 A
Rated torque	53.0 ft.lb
Locked rotor torque	270 %
Breakdown torque	270 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	2.31 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	338 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.64	0.75	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Sinterized, Exd
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
