/Products/Electric Motors/3 Phase Stainless Steel/WEG/HydroWash/Foot Mount/01518ET3EHW254T-S WEG 15HP Hydrowash Electric Motor, 1800RPM

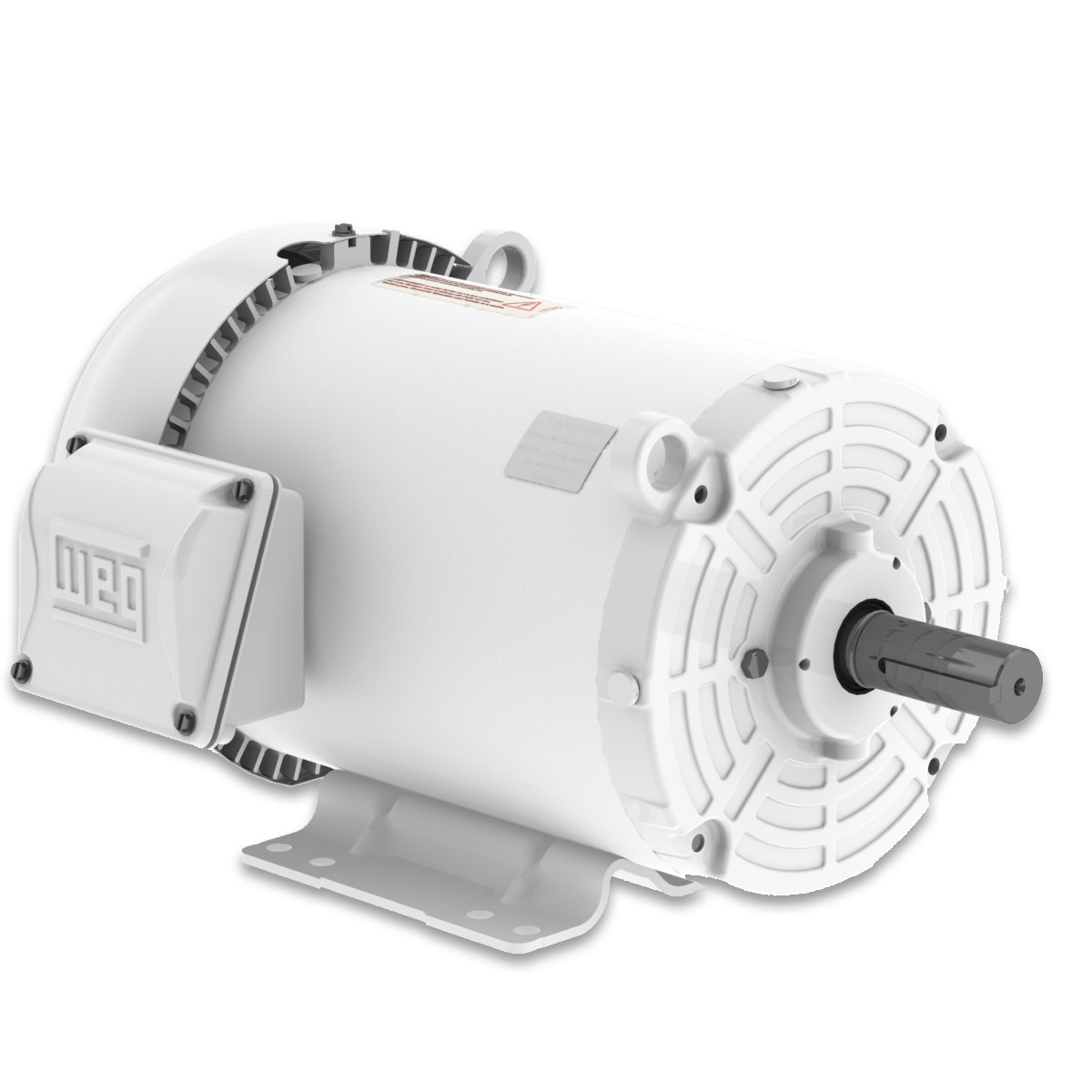

Click Image to Expand

Product ID: 01518ET3EHW254T-S

01518ET3EHW254T-S WEG 15HP Hydrowash Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3EHW254T-S

Selected accessories will also be added to cart
$3,451.50 / Each
Quantity:
TEFC, IP56, 254T/256T Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 15228375, Foot Mounted, NEMA Premium Efficiency, Rolled Steel Frame, 1-5/8" Keyed Stainless Steel Shaft
Accessories
Select any of the accessories below to purchase them with this inventory item:

Electric Motors

Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 36.4/18.2 A
L. R. Amperes 237/118 A
LRC 6.5x(Code G)
No load current 17.3/8.65 A
Rated torque 44.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 2.15 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  92.4  92.4

Power factor

50% 75% 100%
0.64  0.76  0.82
Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 190/380 V
Rated current 43.8/21.9 A
L. R. Amperes 241/120 A
LRC 5.5x(Code F)
No load current 17.1/8.53 A
Rated torque 54.1 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.15 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  91.2  89.9

Power factor

50% 75% 100%
0.71  0.81  0.85
Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 220/415 V
Rated current 39.4/20.9 A
L. R. Amperes 240/127 A
LRC 6.1x(Code G)
No load current 17.5/9.28 A
Rated torque 54.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.15 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.2  91.4  90.4

Power factor

50% 75% 100%
0.67  0.78  0.84

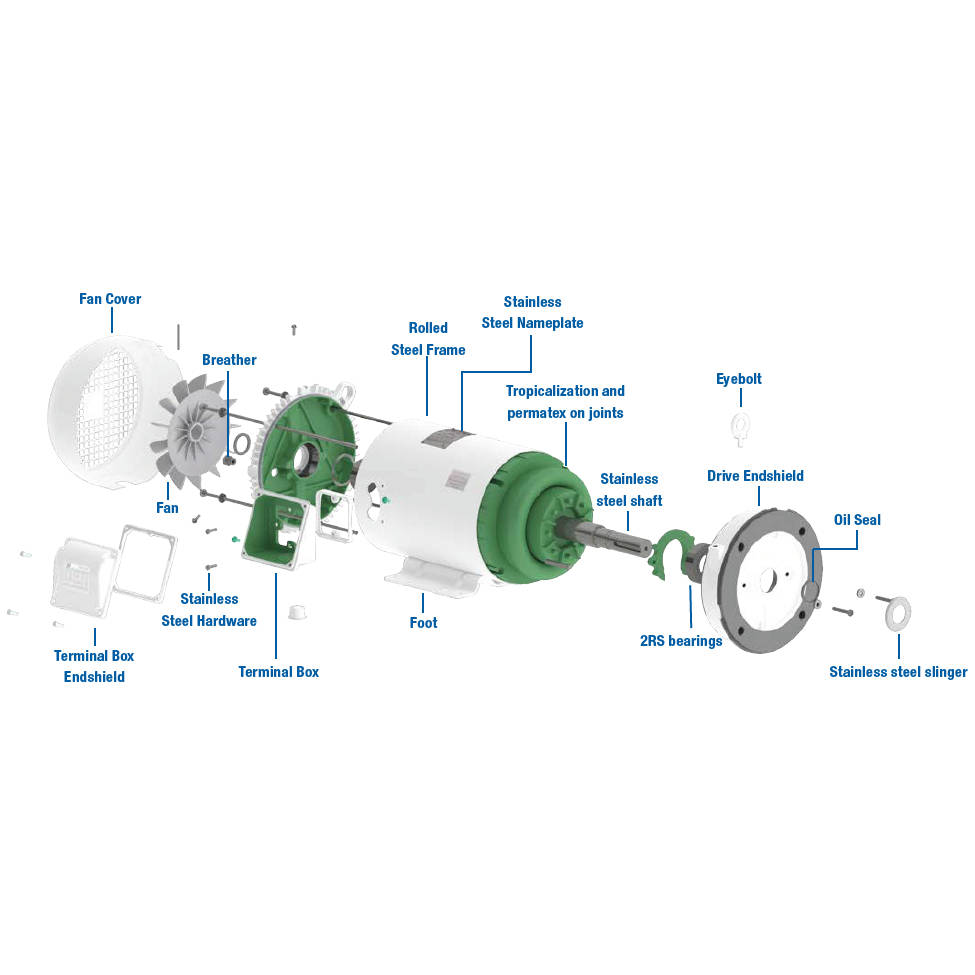

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1 1/4"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Superior
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
