/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/01518ET3E254JM-W22 WEG 15HP JM Close Coupled Pump Electric Motor, 1800RPM

Product ID: 01518ET3E254JM-W22

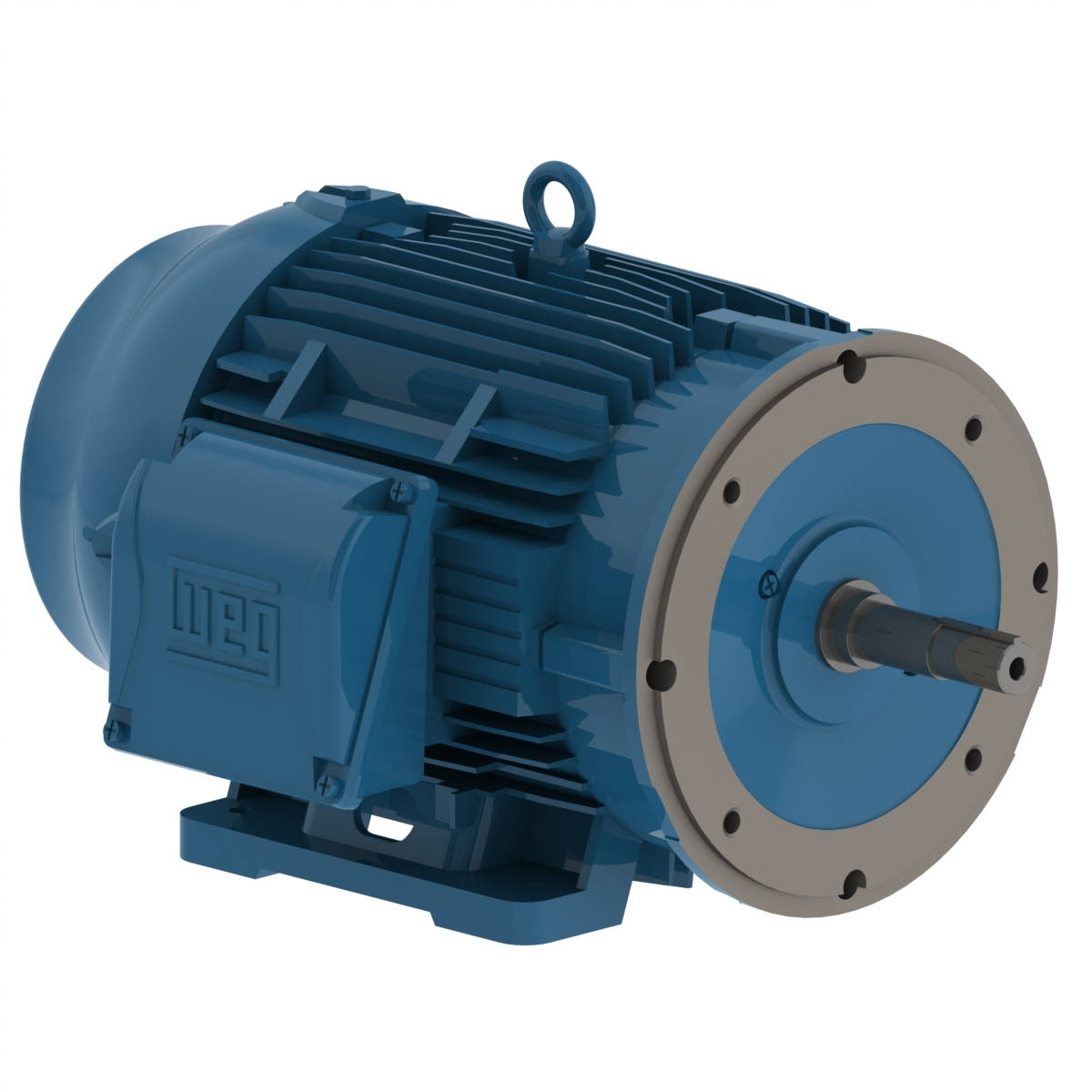

01518ET3E254JM-W22 WEG 15HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3E254JM-W22

Selected accessories will also be added to cart

$1,956.75 / Each

Quantity:

IC411 - TEFC, IP55, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12603920, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	36.0/18.0 A
L. R. Amperes	230/115 A
LRC	6.4x(Code G)
No load current	14.4/7.20 A
Rated torque	44.5 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	55s (cold) 31s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	92.4

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	254/6JM
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	15.2 A
L. R. Amperes	109 A
LRC	7.2x(Code J)
No load current	6.70 A
Rated torque	35.6 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.8	90.3	90.4

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	254/6JM
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	14.8 A
L. R. Amperes	115 A
LRC	7.8x(Code J)
No load current	7.10 A
Rated torque	35.5 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	63s (cold) 35s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	90.3	90.6

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	254/6JM
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	14.5 A
L. R. Amperes	120 A
LRC	8.3x(Code K)
No load current	7.40 A
Rated torque	35.5 ft.lb
Locked rotor torque	310 %
Breakdown torque	370 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.3	90.3	90.8

Power factor

50%	75%	100%
0.59	0.72	0.79

Frame	254/6JM
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	21.5 A
L. R. Amperes	105 A
LRC	4.9x(Code E)
No load current	7.10 A
Rated torque	54.1 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	90.2	90.2

Power factor

50%	75%	100%
0.74	0.82	0.86

Frame	254/6JM
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	20.5 A
L. R. Amperes	111 A
LRC	5.4x(Code F)
No load current	7.60 A
Rated torque	54.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.71	0.80	0.85

Frame	254/6JM
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	20.0 A
L. R. Amperes	118 A
LRC	5.9x(Code G)
No load current	7.40 A
Rated torque	53.8 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.69	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Mechanical Seal
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
