/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/01218ES1DFD215T-W22 WEG 12.5HP Farm Duty Electric Motor, 1740RPM
Click Image to Expand

Product ID: 01218ES1DFD215T-W22

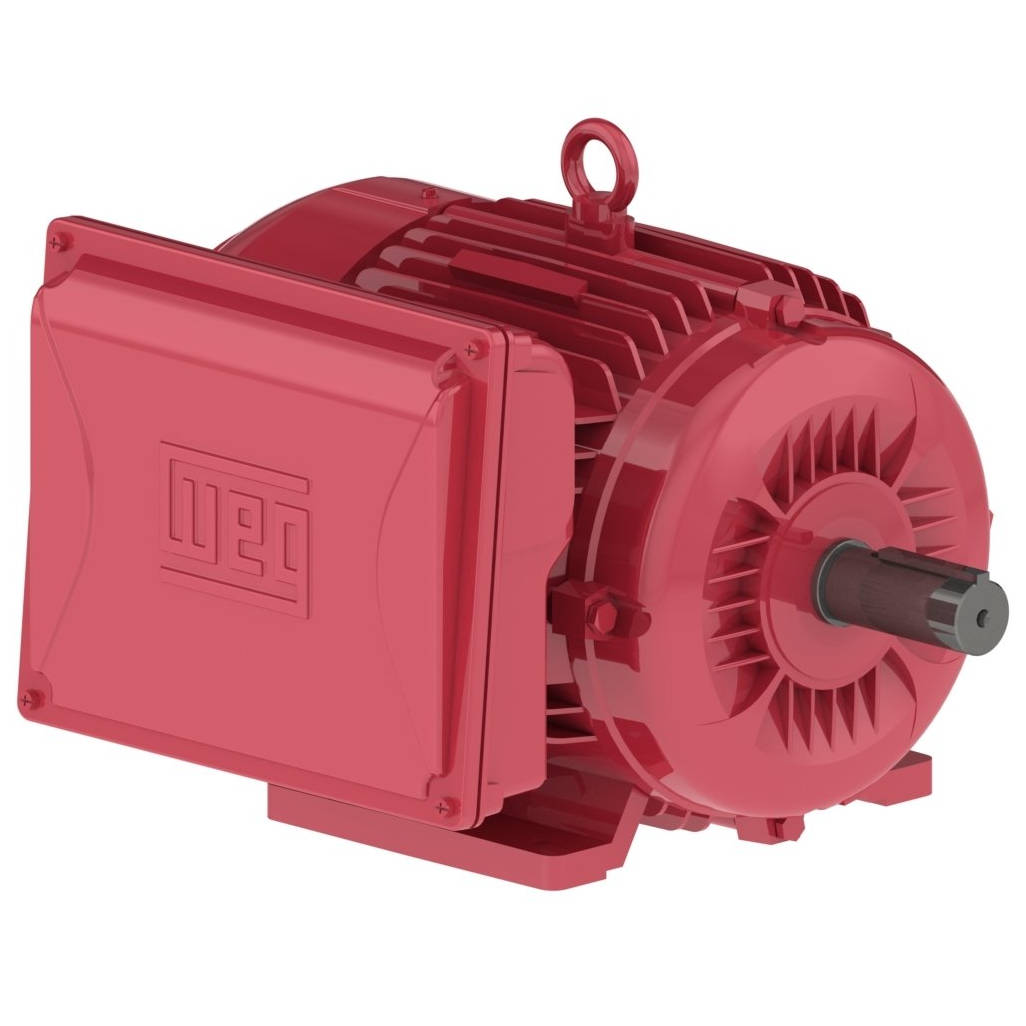

01218ES1DFD215T-W22 WEG 12.5HP Farm Duty Electric Motor, 1740RPM

MFG: WEG Electric Corporation
MFG Part Number: 01218ES1DFD215T-W22

Selected accessories will also be added to cart
$1,416.75 / Each
Quantity:
IC411 - TEFC, 213T/215T Frame, 230VAC Single Phase 60Hz, 14681029, Foot Mounted, Cast Iron

Electric Motors

Frame 213/5T
Output 12.5 HP (9.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 54.5 A
L. R. Amperes 436 A
LRC 8.0x(Code K)
No load current 27.0 A
Rated torque 37.2 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.29 sq.ft.lb
Insulation Class H
Service factor 1.15
Temperature rise 125 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 205 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.0  81.5  82.5

Power factor

50% 75% 100%
0.75  0.84  0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3003 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Manual

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 2RS   6206 2RS
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
401 lb  606 lb

 Loading...

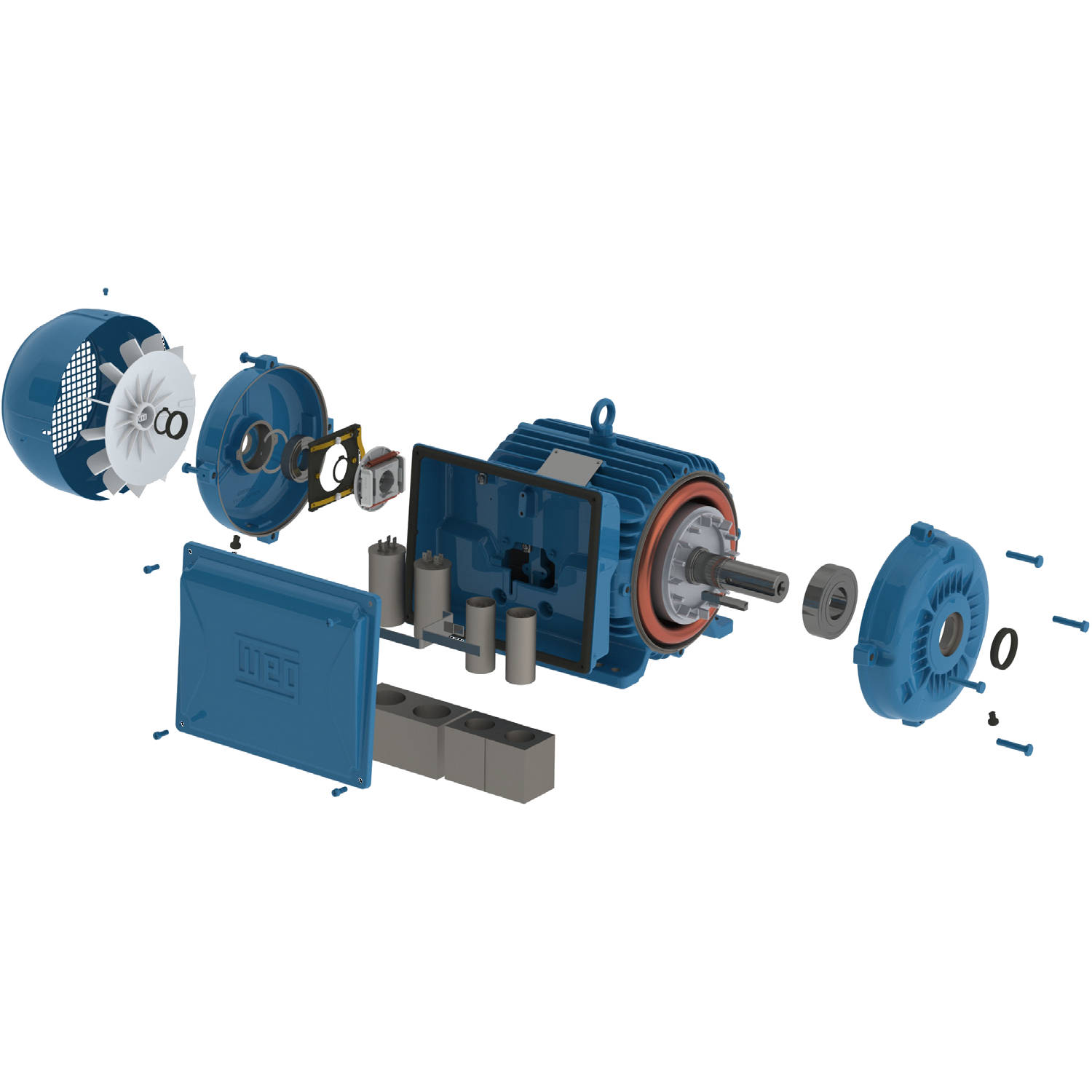

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.

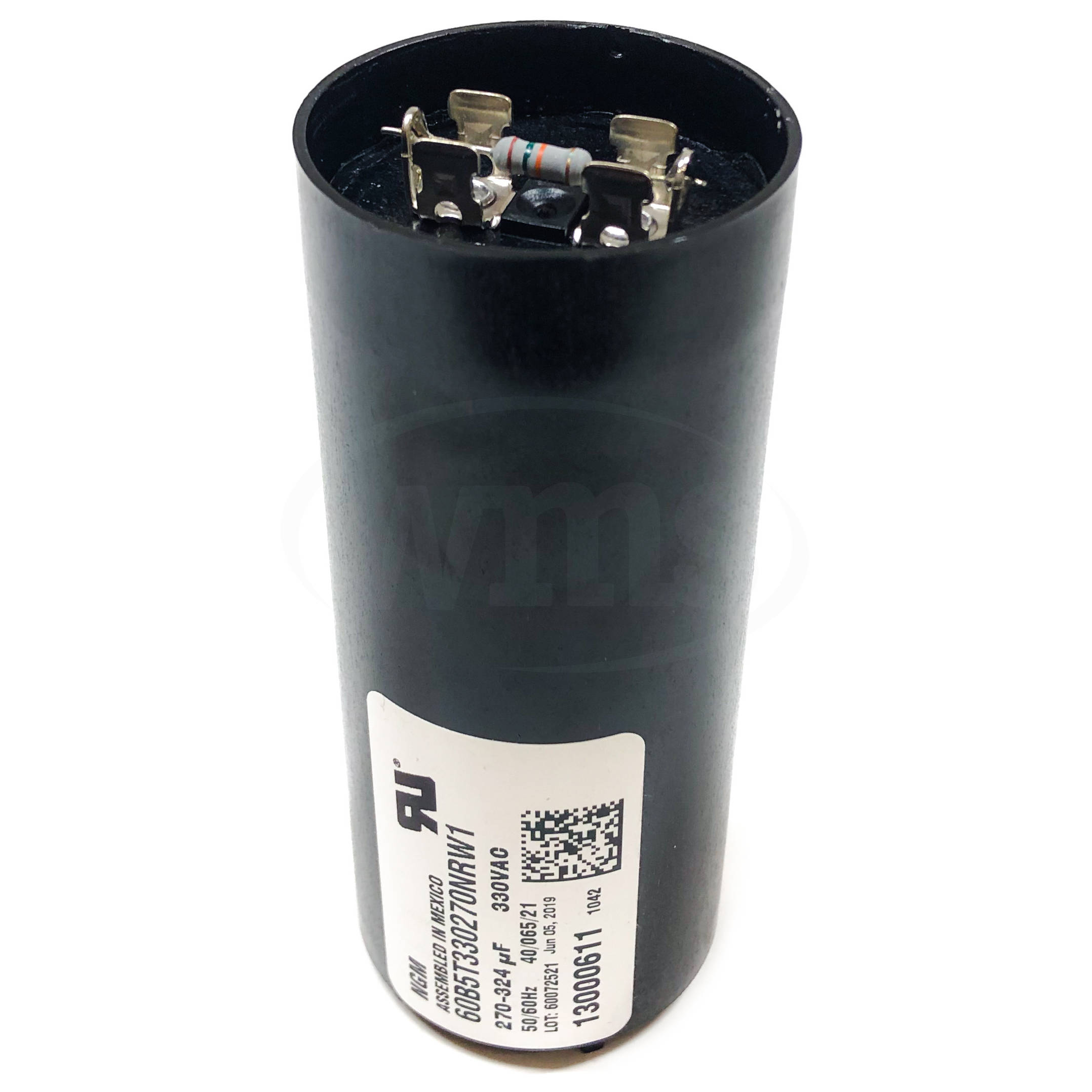

Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.
