/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/01018ES1DFD215T-W22 WEG 10HP Farm Duty Electric Motor, 1740RPM
Click Image to Expand

Product ID: 01018ES1DFD215T-W22

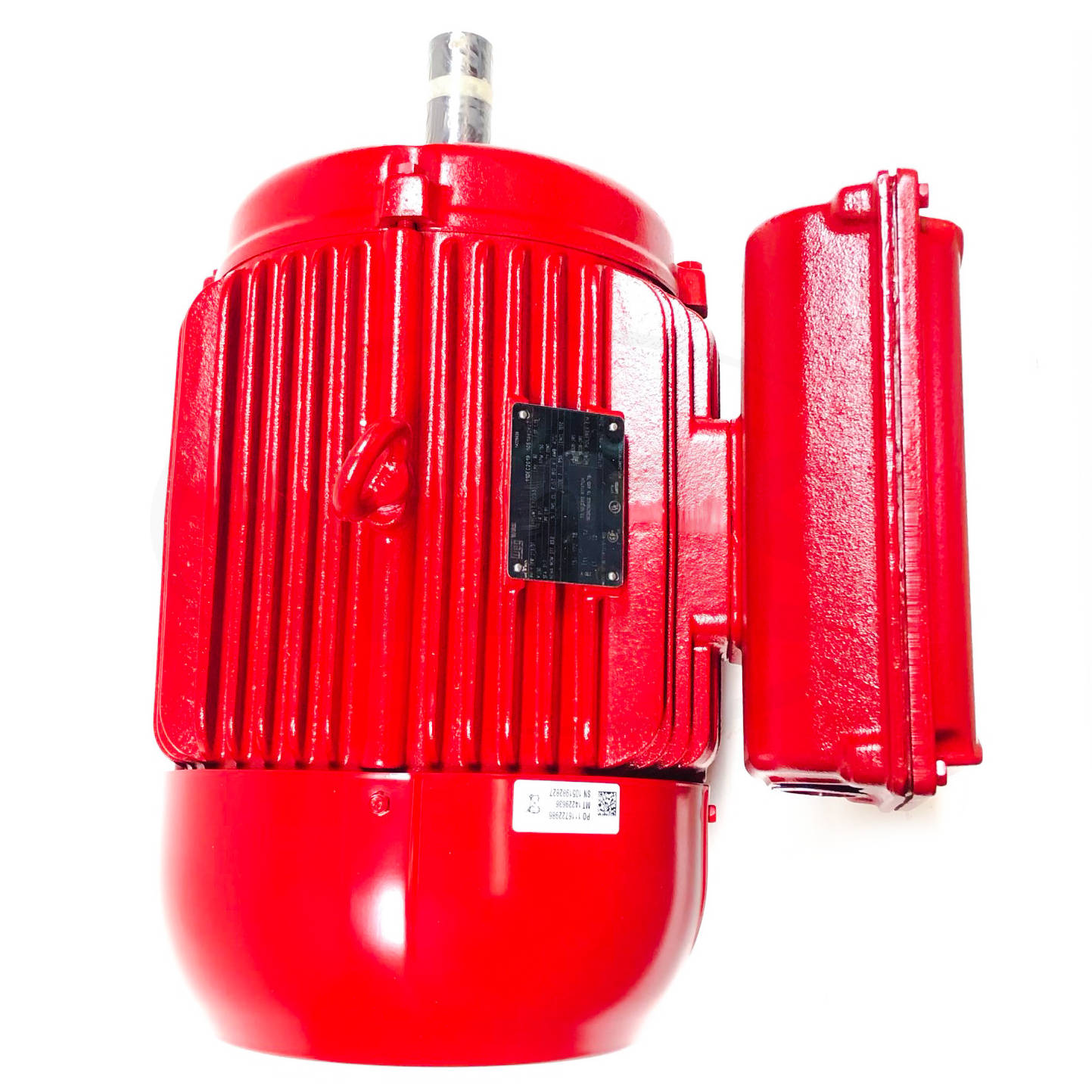

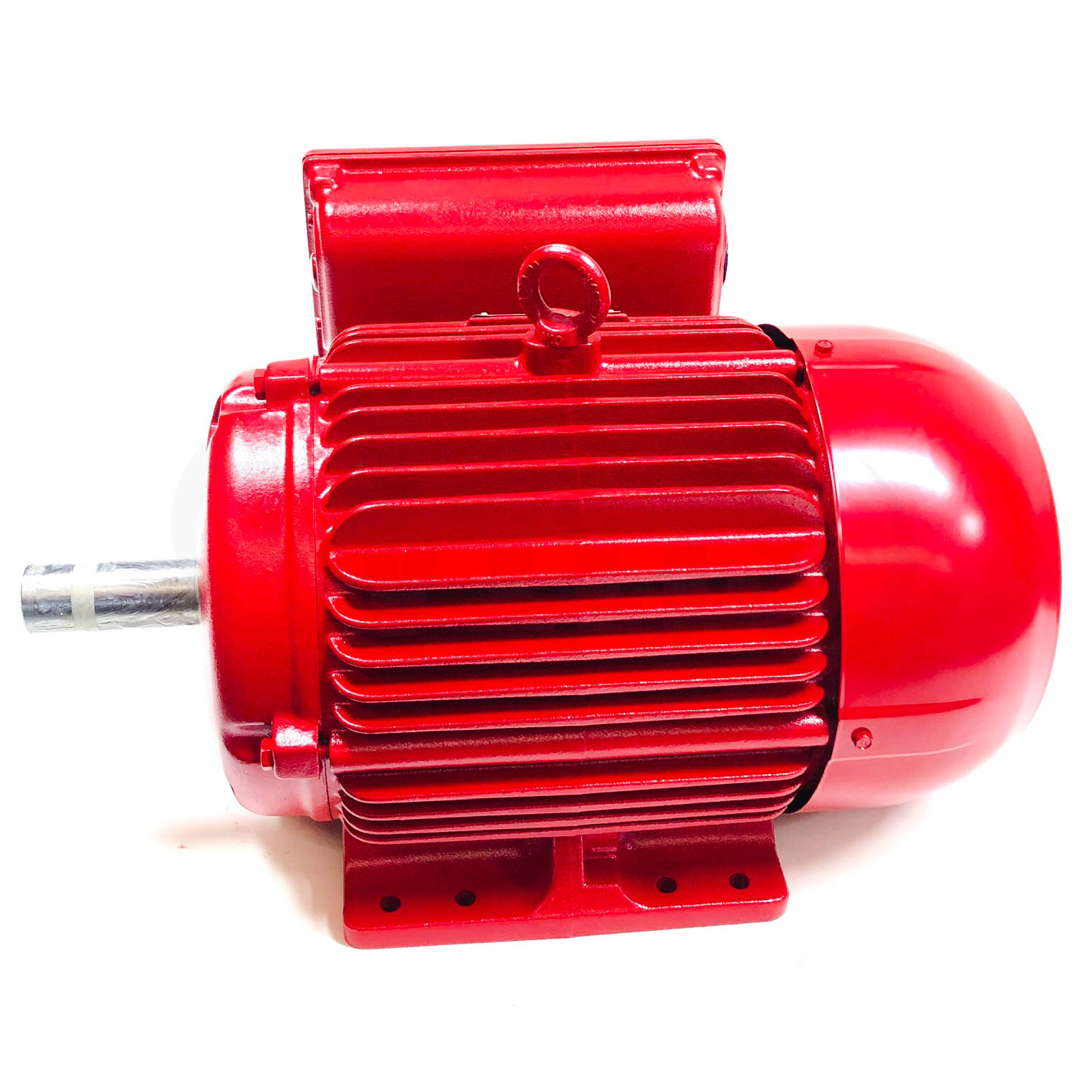

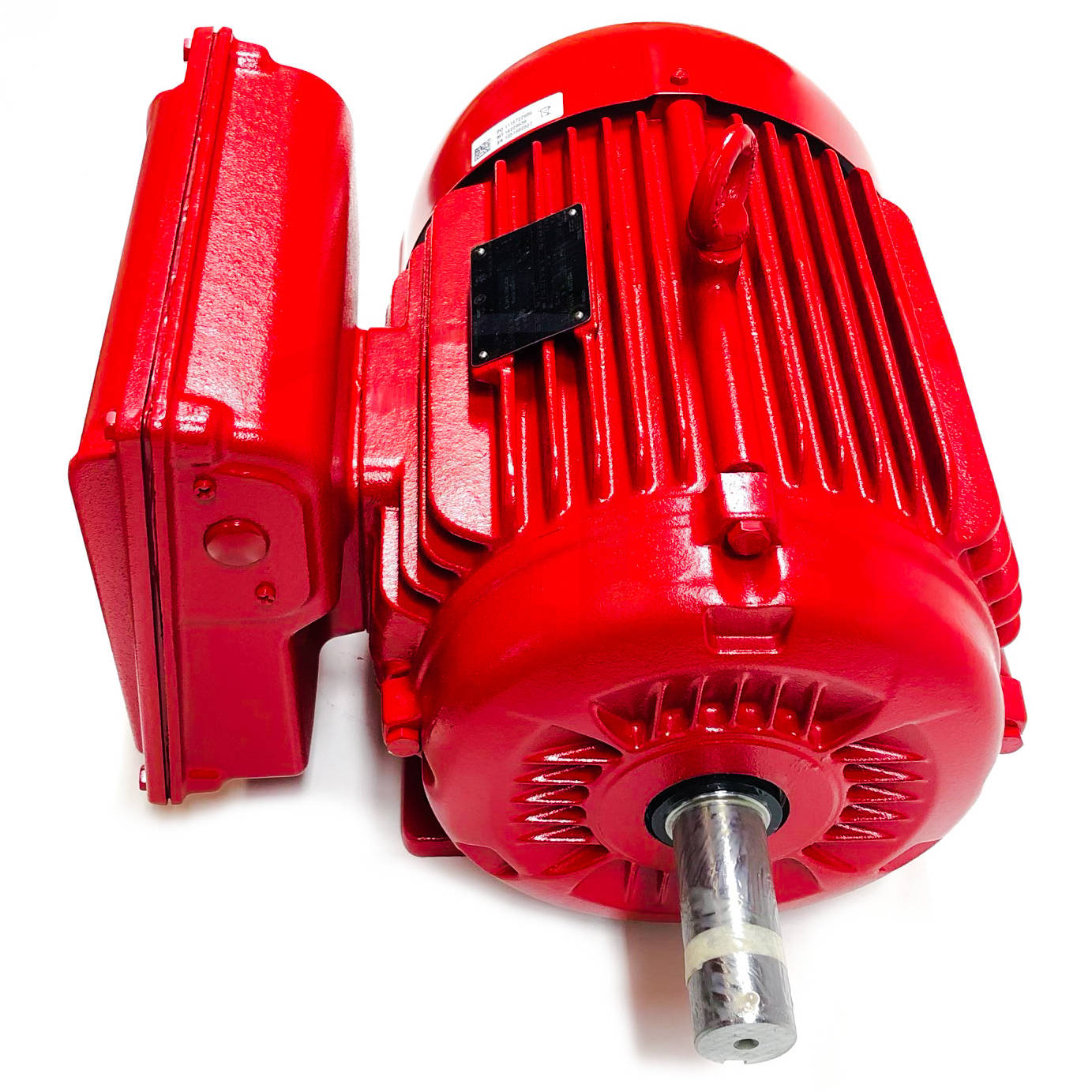

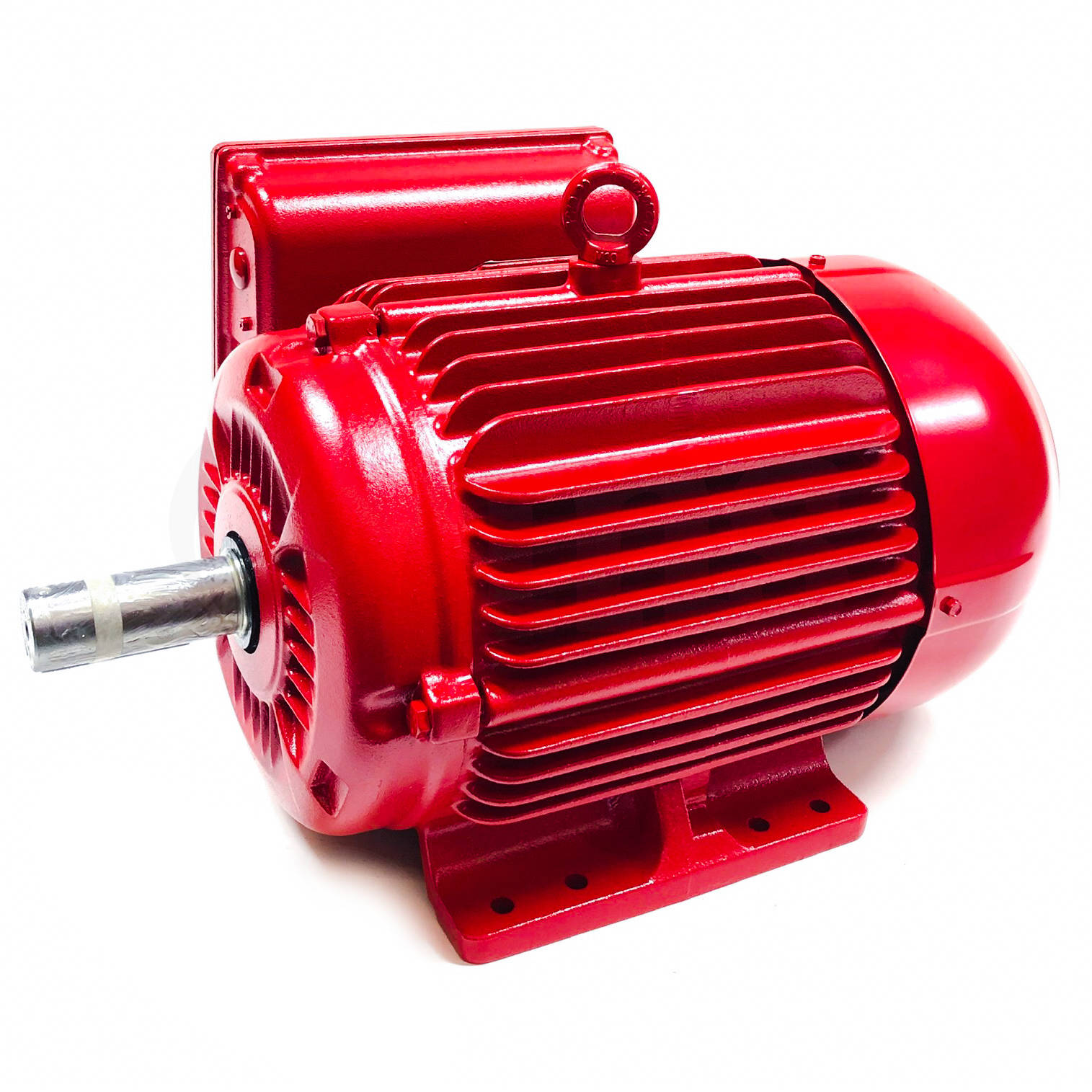

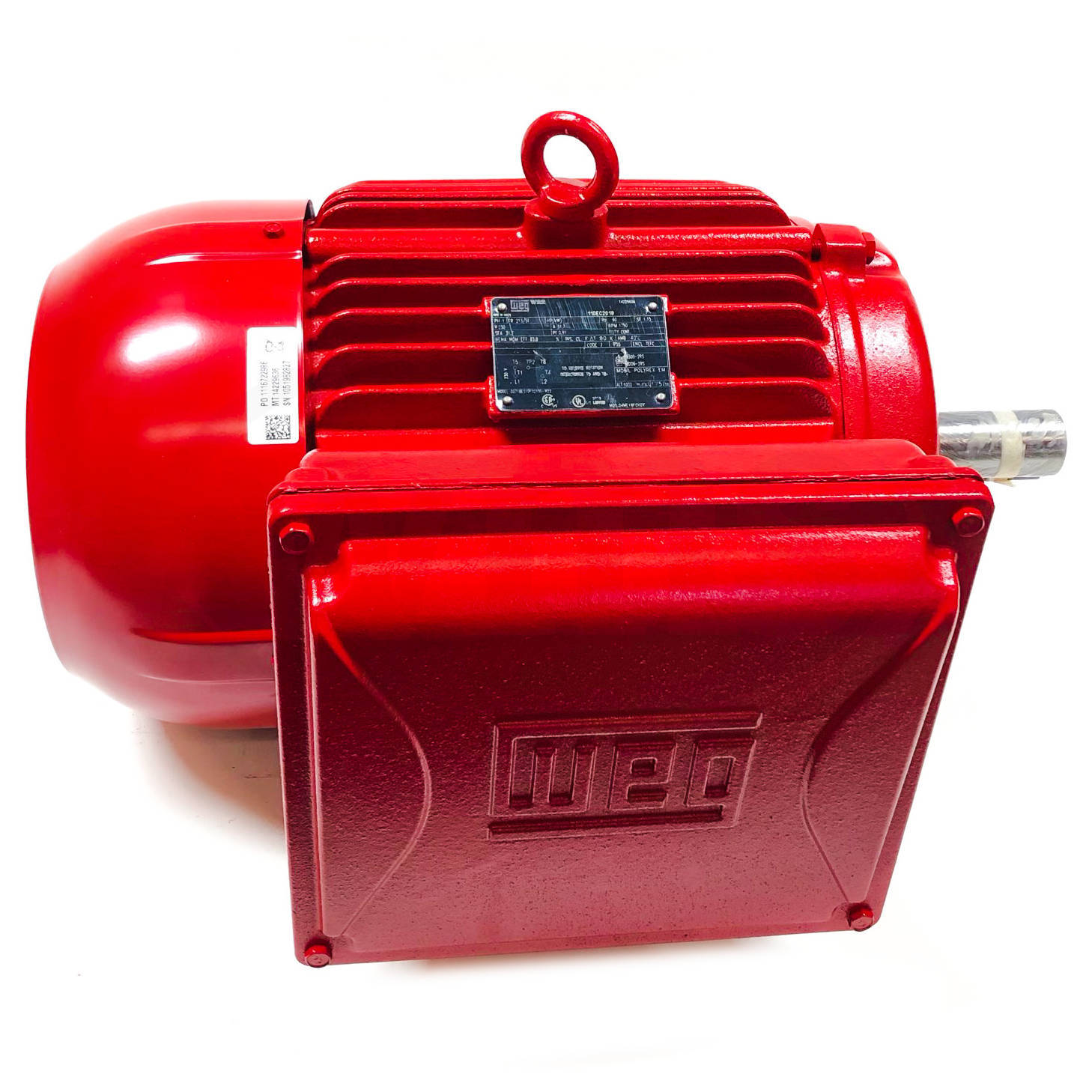

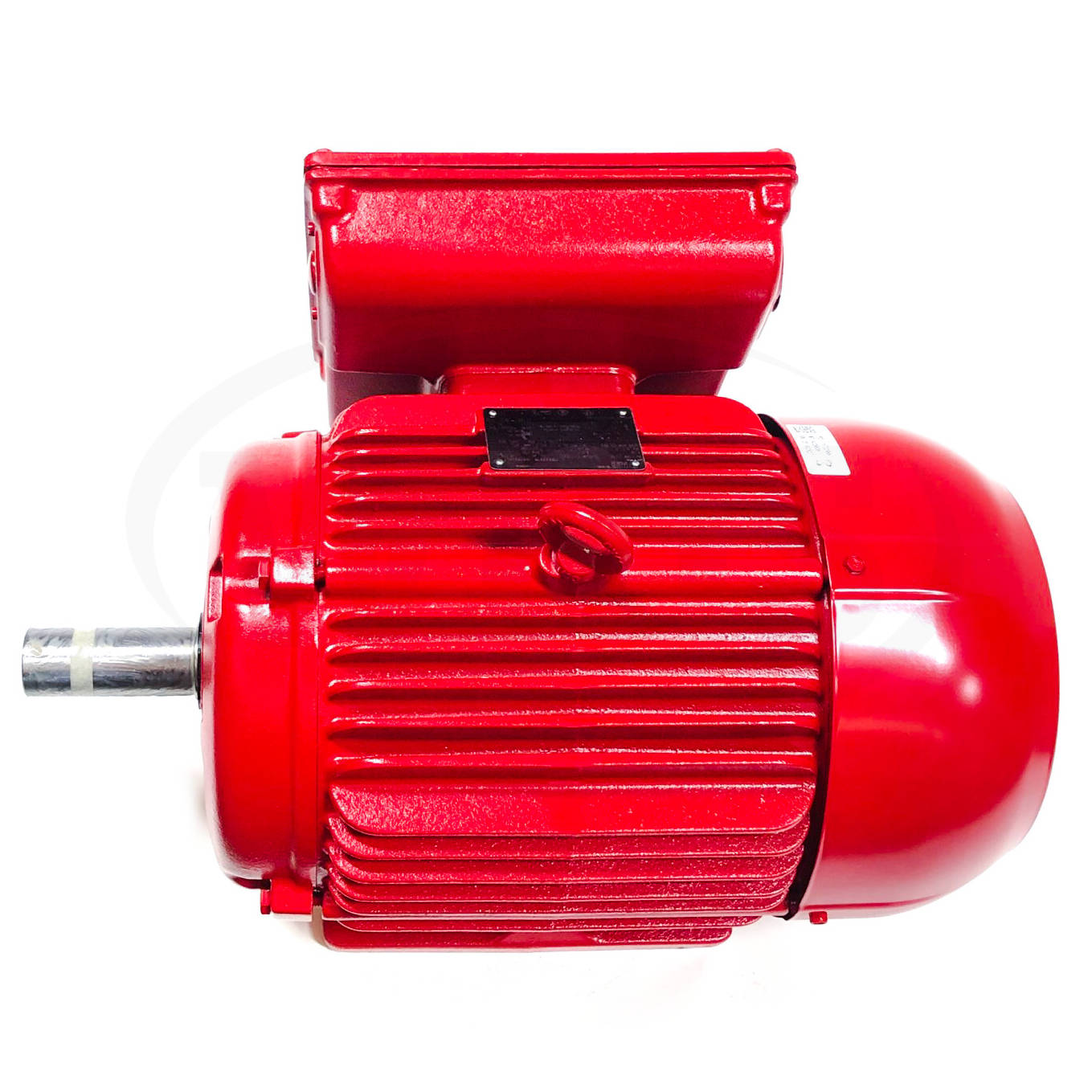

01018ES1DFD215T-W22 WEG 10HP Farm Duty Electric Motor, 1740RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ES1DFD215T

Selected accessories will also be added to cart
$1,269.00 / Each
Quantity:
IC411 - TEFC, IP55, 213/215T Frame, 230V, 60Hz, Single Phase

Electric Motors

Frame 215T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 40.5 A
L. R. Amperes 271 A
LRC 6.7x(Code G)
No load current 12.8 A
Rated torque 29.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.15 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 184 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  82.0  83.0

Power factor

50% 75% 100%
0.94  0.96  0.97

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 207A (ISO 12944 - C2)


Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
311 lb  495 lb

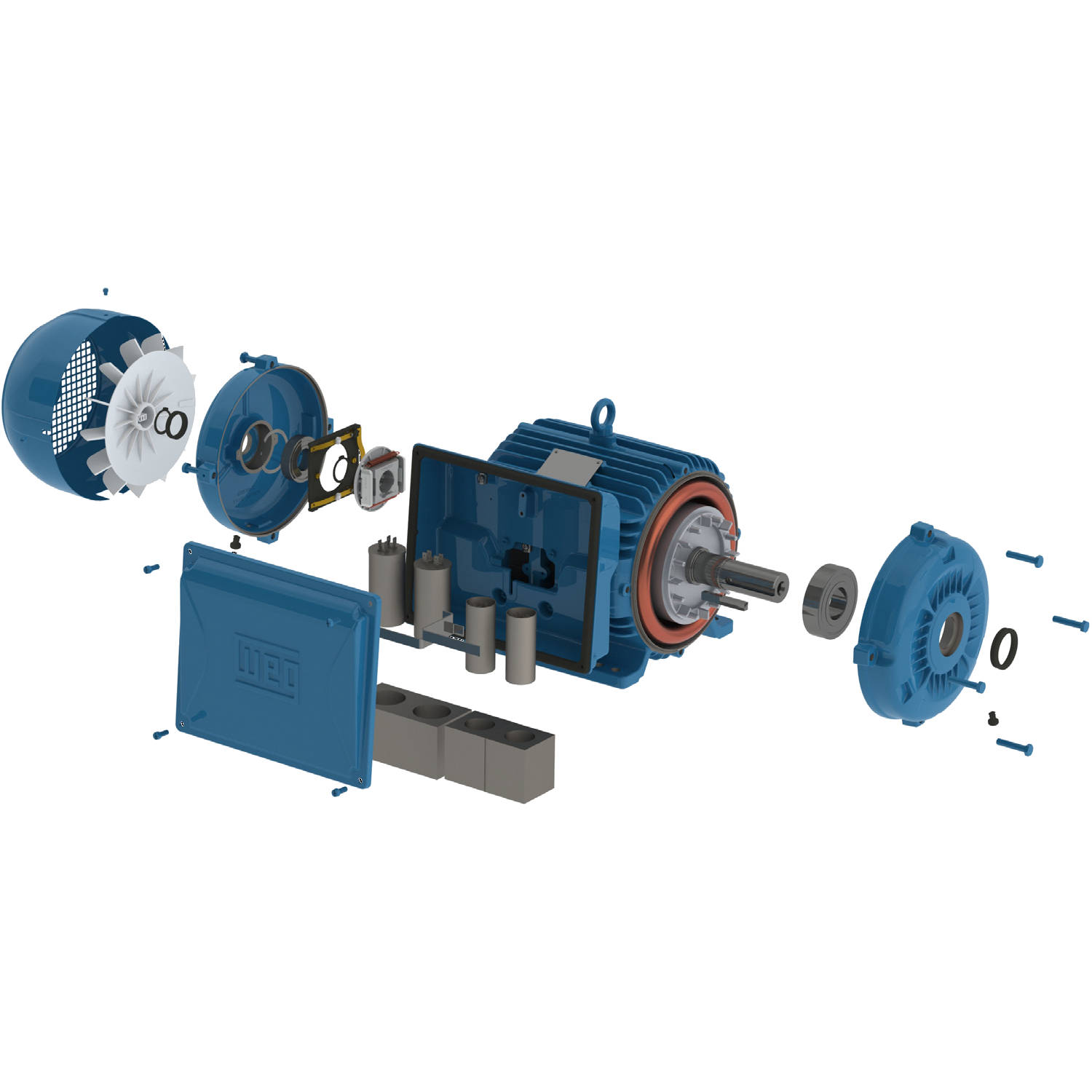

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.
