/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/01018ES1DFD215T-S WEG 10HP Farm Duty Electric Motor, 1800RPM

Product ID: 01018ES1DFD215T-S

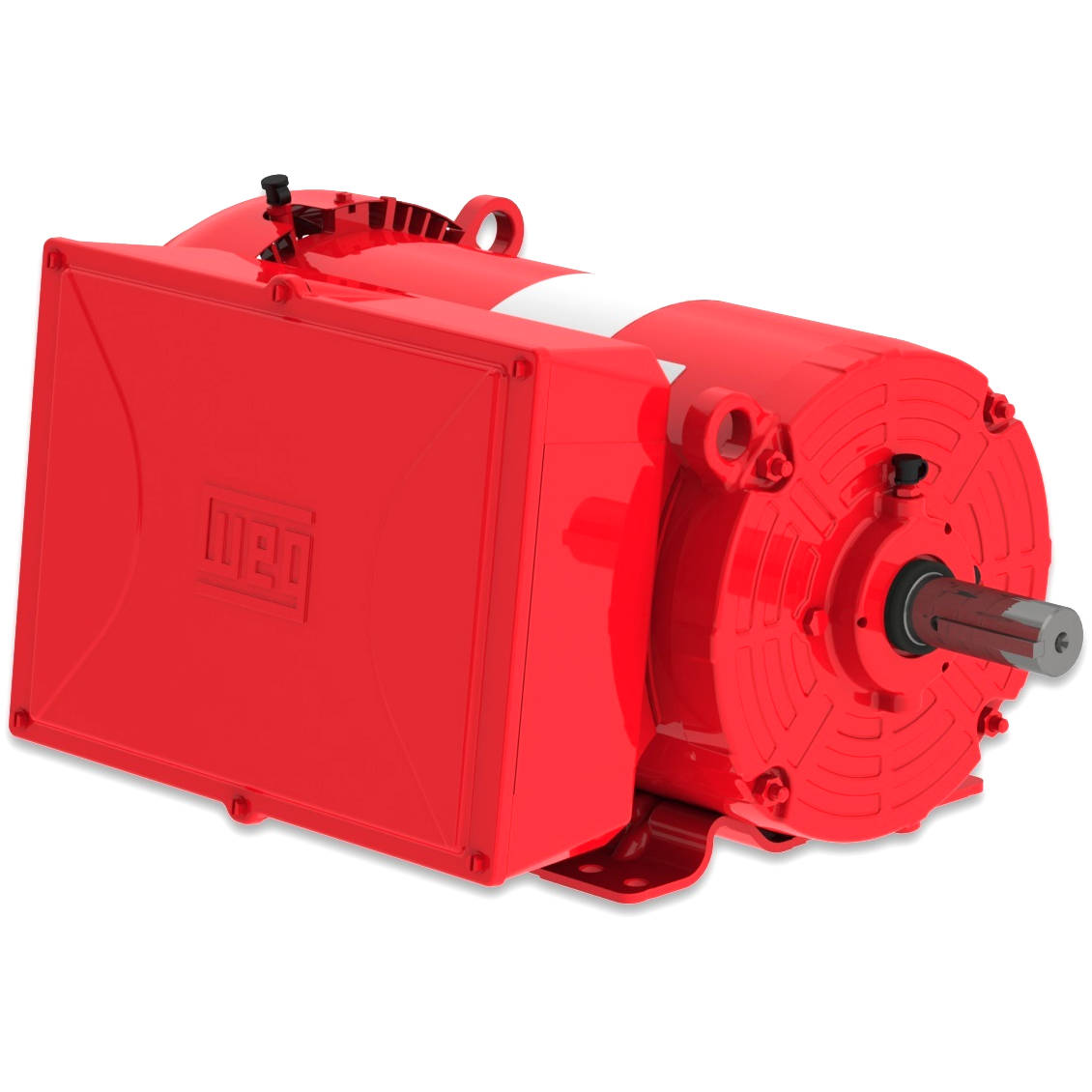

01018ES1DFD215T-S WEG 10HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ES1DFD215T-S

Available Stock: 1

Selected accessories will also be added to cart

$1,269.00 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 230VAC 60Hz Single Phase, 14058211, Rolled Steel, Foot Mounted, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	230 V
Rated current	39.1 A
L. R. Amperes	313 A
LRC	8.0x(Code J)
No load current	6.50 A
Rated torque	4.16 kgfm
Locked rotor torque	320 %
Breakdown torque	280 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.0601 kgm²
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	81.0 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	84.0	85.0

Power factor

50%	75%	100%
0.97	0.98	0.98

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3003 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Manual
