/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JP Close-Coupled Pump/01012ET3E256JP-W22 WEG 10HP JP Close Coupled Pump Electric Motor, 1200RPM

Product ID: 01012ET3E256JP-W22

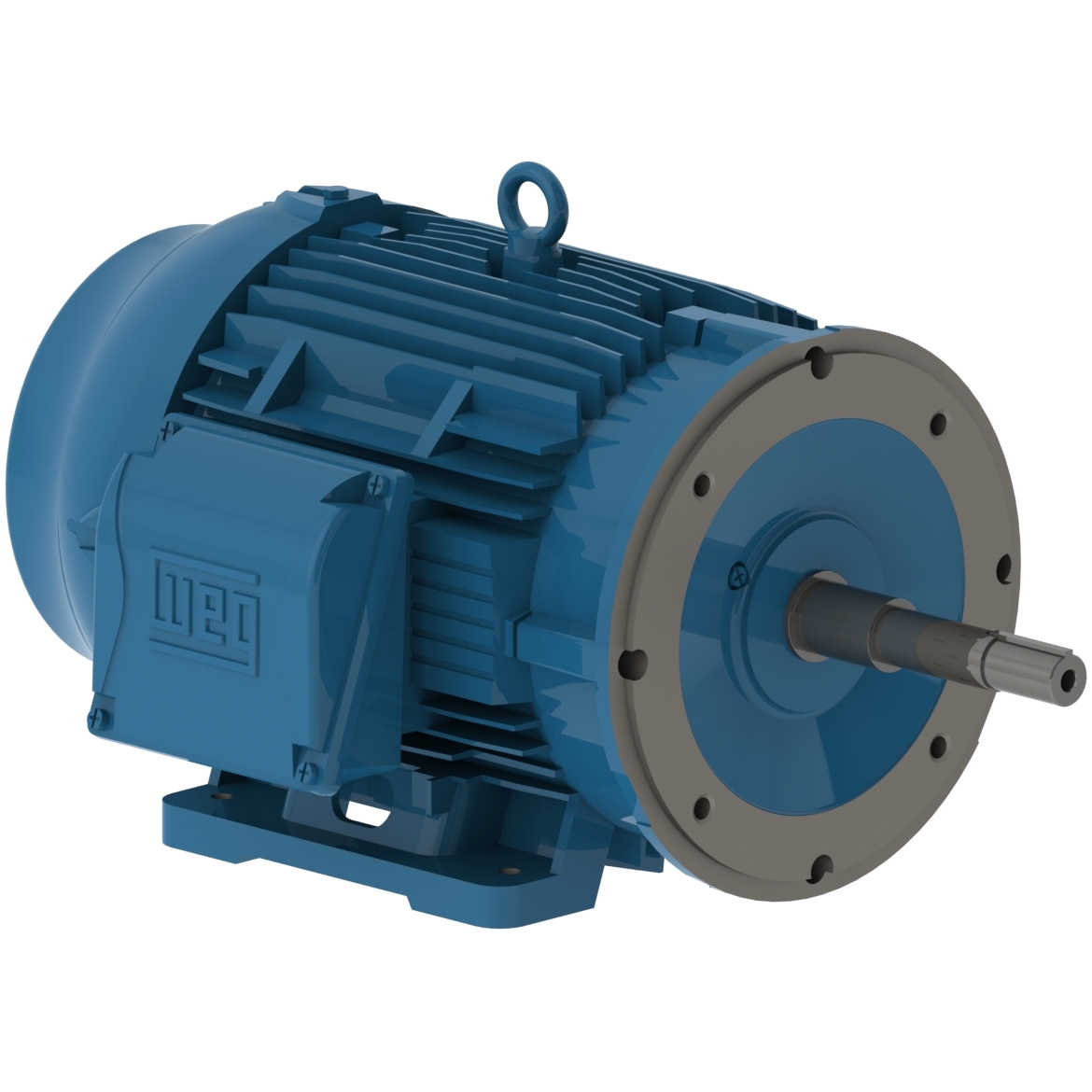

01012ET3E256JP-W22 WEG 10HP JP Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01012ET3E256JP-W22

Selected accessories will also be added to cart

$2,327.25 / Each

Quantity:

IC411 - TEFC, IP55, 254JP/256JP Frame, 230/460VAC 50/60Hz 3 Phase, 12758464, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	254/6JP
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	26.6/13.3 A
L. R. Amperes	173/86.5 A
LRC	6.5x(Code H)
No load current	12.0/6.00 A
Rated torque	44.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	307 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.63	0.74	0.78

Frame	254/6JP
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	15.4 A
L. R. Amperes	78.5 A
LRC	5.1x(Code F)
No load current	6.40 A
Rated torque	54.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	220 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	307 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	89.5	89.1

Power factor

50%	75%	100%
0.66	0.79	0.83

Frame	254/6JP
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	14.8 A
L. R. Amperes	84.4 A
LRC	5.7x(Code G)
No load current	6.80 A
Rated torque	54.1 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	307 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	89.5

Power factor

50%	75%	100%
0.63	0.77	0.82

Frame	254/6JP
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	14.4 A
L. R. Amperes	87.8 A
LRC	6.1x(Code H)
No load current	7.20 A
Rated torque	53.9 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	307 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	89.5

Power factor

50%	75%	100%
0.60	0.75	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Gasket
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
