/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Foot Mount/00736XT3E213TC WEG 7.5HP Explosion Proof Electric Motor, 3600RPM

Product ID: 00736XT3E213TC

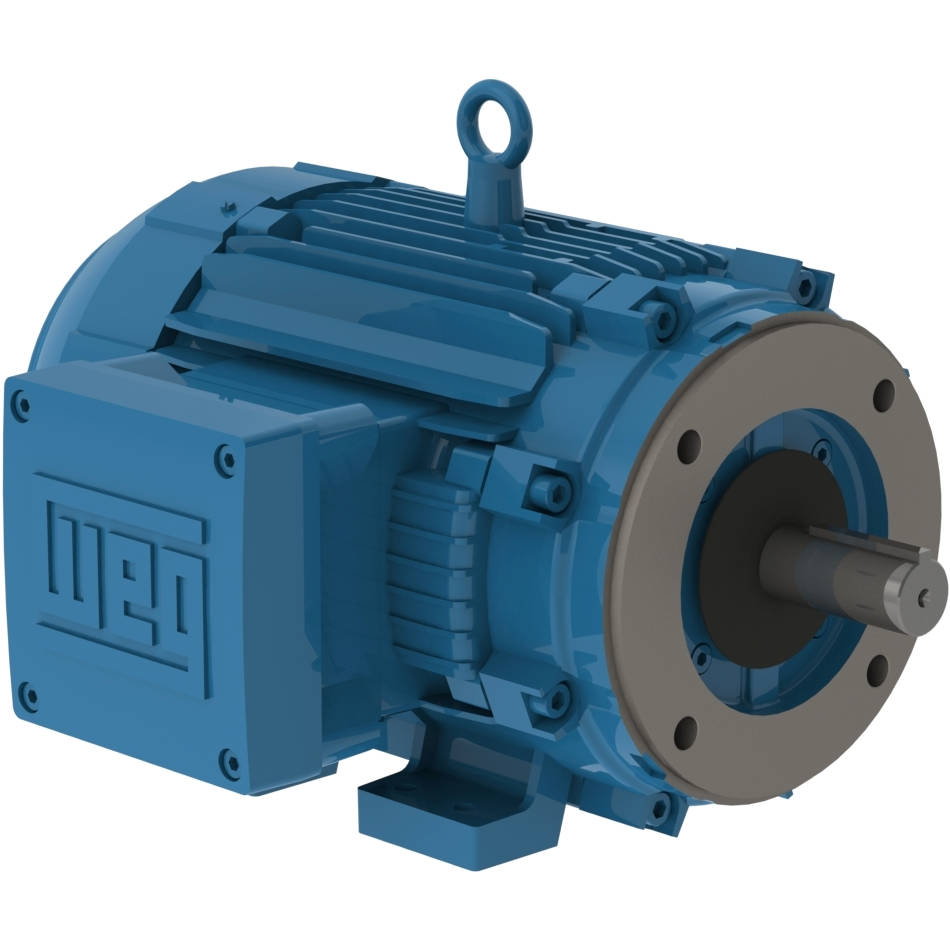

00736XT3E213TC WEG 7.5HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736XT3E213TC

Selected accessories will also be added to cart

$1,291.50 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14284316, NEMA Premium Efficiency, Foot Mount, C-Face, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3525 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	17.1/8.57 A
L. R. Amperes	120/60.0 A
LRC	7.0x(Code H)
No load current	5.60/2.80 A
Rated torque	11.2 ft.lb
Locked rotor torque	240 %
Breakdown torque	330 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.4696 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	213 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	88.5	89.5

Power factor

50%	75%	100%
0.78	0.87	0.90

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	10.3 A
L. R. Amperes	63.9 A
LRC	6.2x(Code G)
No load current	2.70 A
Rated torque	13.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.4696 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	213 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	89.0

Power factor

50%	75%	100%
0.84	0.89	0.91

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	9.89 A
L. R. Amperes	67.3 A
LRC	6.8x(Code G)
No load current	2.85 A
Rated torque	13.5 ft.lb
Locked rotor torque	210 %
Breakdown torque	270 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.4696 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	213 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	89.2

Power factor

50%	75%	100%
0.81	0.88	0.90

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	9.61 A
L. R. Amperes	71.1 A
LRC	7.4x(Code H)
No load current	2.90 A
Rated torque	13.5 ft.lb
Locked rotor torque	290 %
Breakdown torque	310 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.4696 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	213 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	89.5

Power factor

50%	75%	100%
0.79	0.86	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
