/Products/Electric Motors/3 Phase Stainless Steel/WEG/HydroWash/Foot Mount/00736ET3EHW184TC-S WEG 8HP Hydrowash Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00736ET3EHW184TC-S

00736ET3EHW184TC-S WEG 8HP Hydrowash Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3EHW184TC-S

Selected accessories will also be added to cart
$1,561.50 / Each
Quantity:
TEFC, IP56, 182TC/184TC Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 15228439, Foot Mounted, NEMA Premium Efficiency, Rolled Steel Frame, 1-1/8" Keyed Stainless Steel Shaft
Accessories
Select any of the accessories below to purchase them with this inventory item:

Electric Motors

Frame 182/4TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 230/460 V
Rated current 17.1/8.57 A
L. R. Amperes 132/66.0 A
LRC 7.7x(Code H)
No load current 6.07/3.04 A
Rated torque 1.56 kgfm
Locked rotor torque 270 %
Breakdown torque 360 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.0081 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 40.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.77  0.86  0.90
Frame 182/4TC
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 190/380 V
Rated current 15.3/7.65 A
L. R. Amperes 129/64.3 A
LRC 8.4x(Code J)
No load current 5.98/2.99 A
Rated torque 1.38 kgfm
Locked rotor torque 310 %
Breakdown torque 380 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.0081 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 40.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.4  90.0  89.3

Power factor

50% 75% 100%
0.74  0.84  0.89
Frame 182/4TC
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 220/415 V
Rated current 14.0/7.40 A
L. R. Amperes 123/65.1 A
LRC 8.8x(Code K)
No load current 6.20/3.29 A
Rated torque 1.37 kgfm
Locked rotor torque 360 %
Breakdown torque 430 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.0081 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 40.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.0  90.0  89.7

Power factor

50% 75% 100%
0.70  0.81  0.87

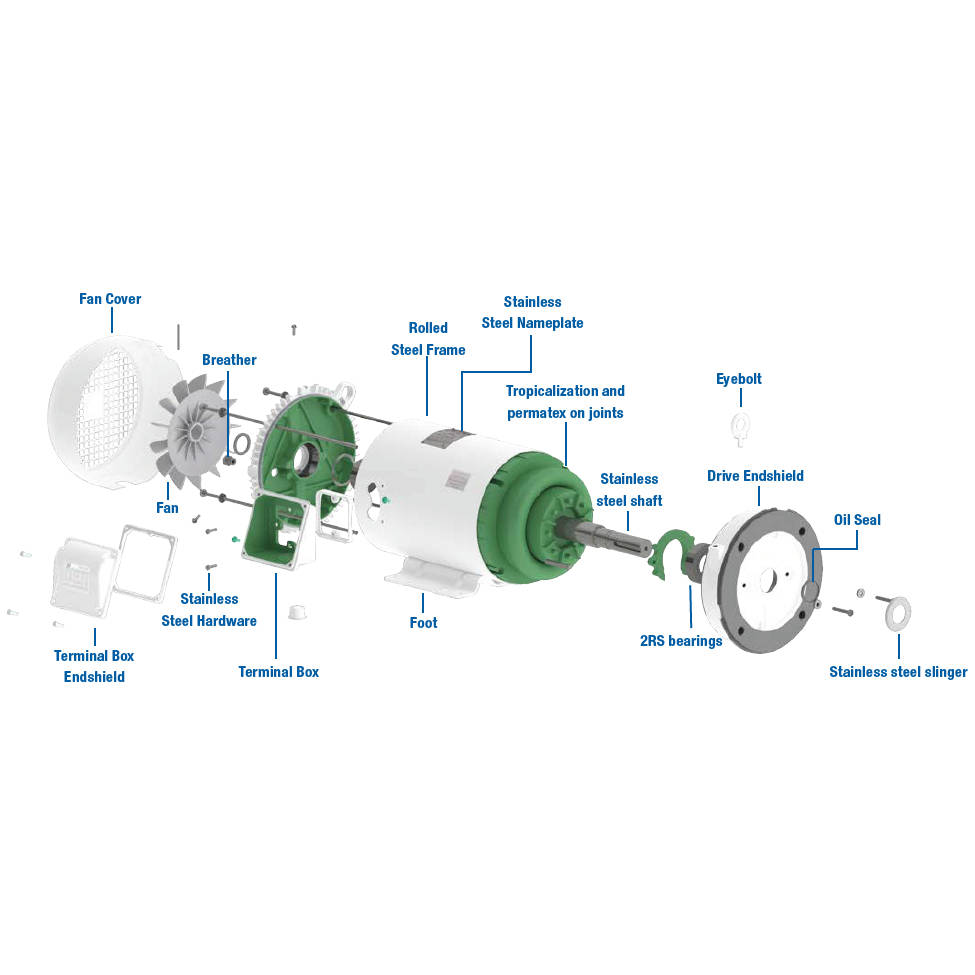

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
