/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/00736ET3E213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00736ET3E213JM-W22

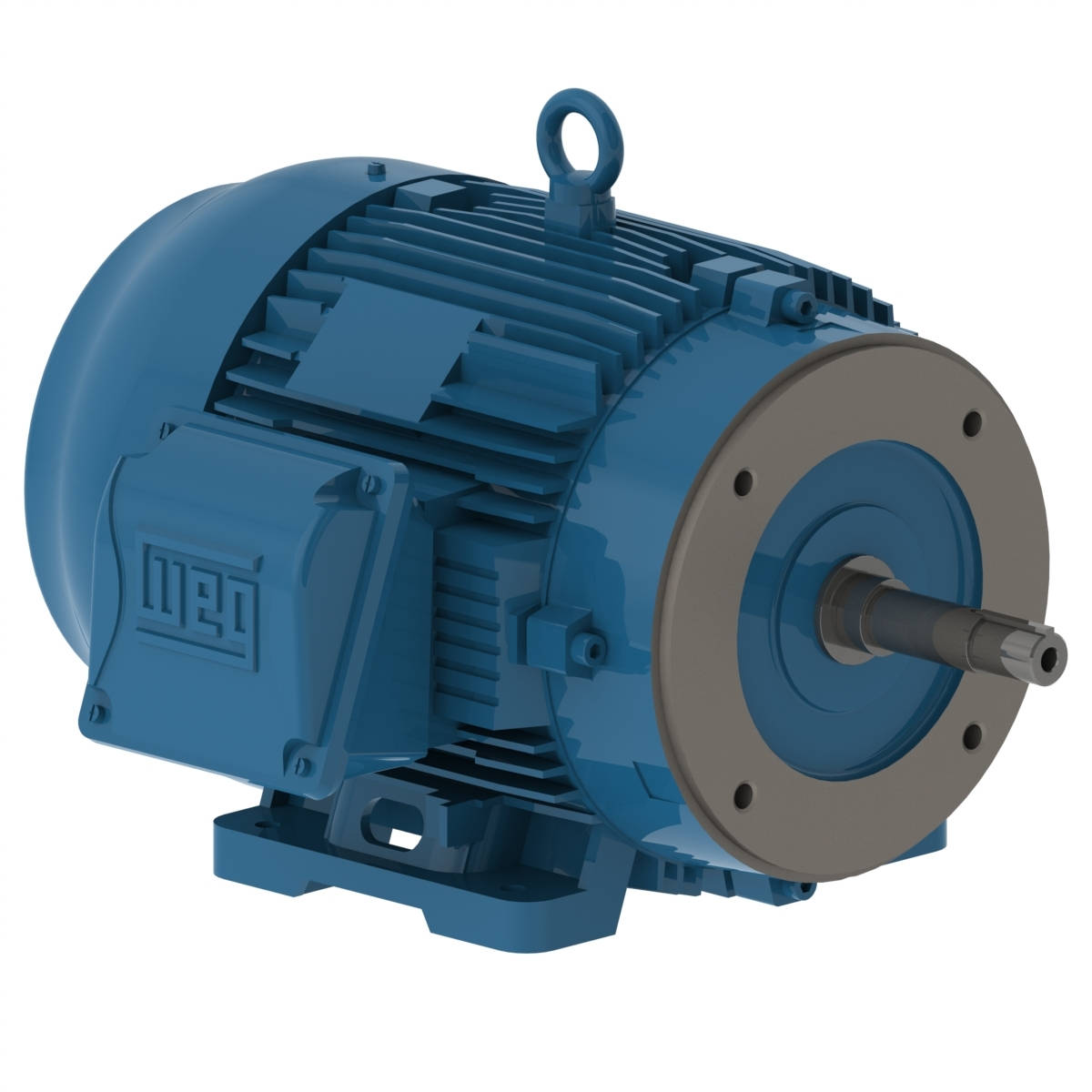

00736ET3E213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E213JM-W22

Selected accessories will also be added to cart

$1,064.25 / Each

Quantity:

IC411 - TEFC, IP55, 213JM/215JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12598761, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	17.5/8.76 A
L. R. Amperes	126/63.1 A
LRC	7.2x(Code H)
No load current	5.40/2.70 A
Rated torque	11.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	89.5

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	213/5JM
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	7.83 A
L. R. Amperes	60.3 A
LRC	7.7x(Code J)
No load current	2.84 A
Rated torque	9.86 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.7	88.2	88.2

Power factor

50%	75%	100%
0.74	0.83	0.88

Frame	213/5JM
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	7.60 A
L. R. Amperes	57.8 A
LRC	7.6x(Code J)
No load current	3.05 A
Rated torque	9.82 ft.lb
Locked rotor torque	250 %
Breakdown torque	350 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.4	88.3	88.3

Power factor

50%	75%	100%
0.70	0.81	0.86

Frame	213/5JM
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	415 V
Rated current	7.49 A
L. R. Amperes	62.2 A
LRC	8.3x(Code K)
No load current	3.22 A
Rated torque	9.81 ft.lb
Locked rotor torque	270 %
Breakdown torque	370 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.1	88.5	88.5

Power factor

50%	75%	100%
0.67	0.78	0.84

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	10.6 A
L. R. Amperes	60.4 A
LRC	5.7x(Code F)
No load current	2.70 A
Rated torque	13.6 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	88.5	87.5

Power factor

50%	75%	100%
0.80	0.87	0.90

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	400 V
Rated current	10.2 A
L. R. Amperes	65.3 A
LRC	6.4x(Code G)
No load current	2.90 A
Rated torque	13.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.77	0.86	0.89

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	415 V
Rated current	9.82 A
L. R. Amperes	67.8 A
LRC	6.9x(Code H)
No load current	3.30 A
Rated torque	13.5 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	163 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.74	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Mechanical Seal
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
