/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/00718ET3E213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 1800RPM

Product ID: 00718ET3E213JM-W22

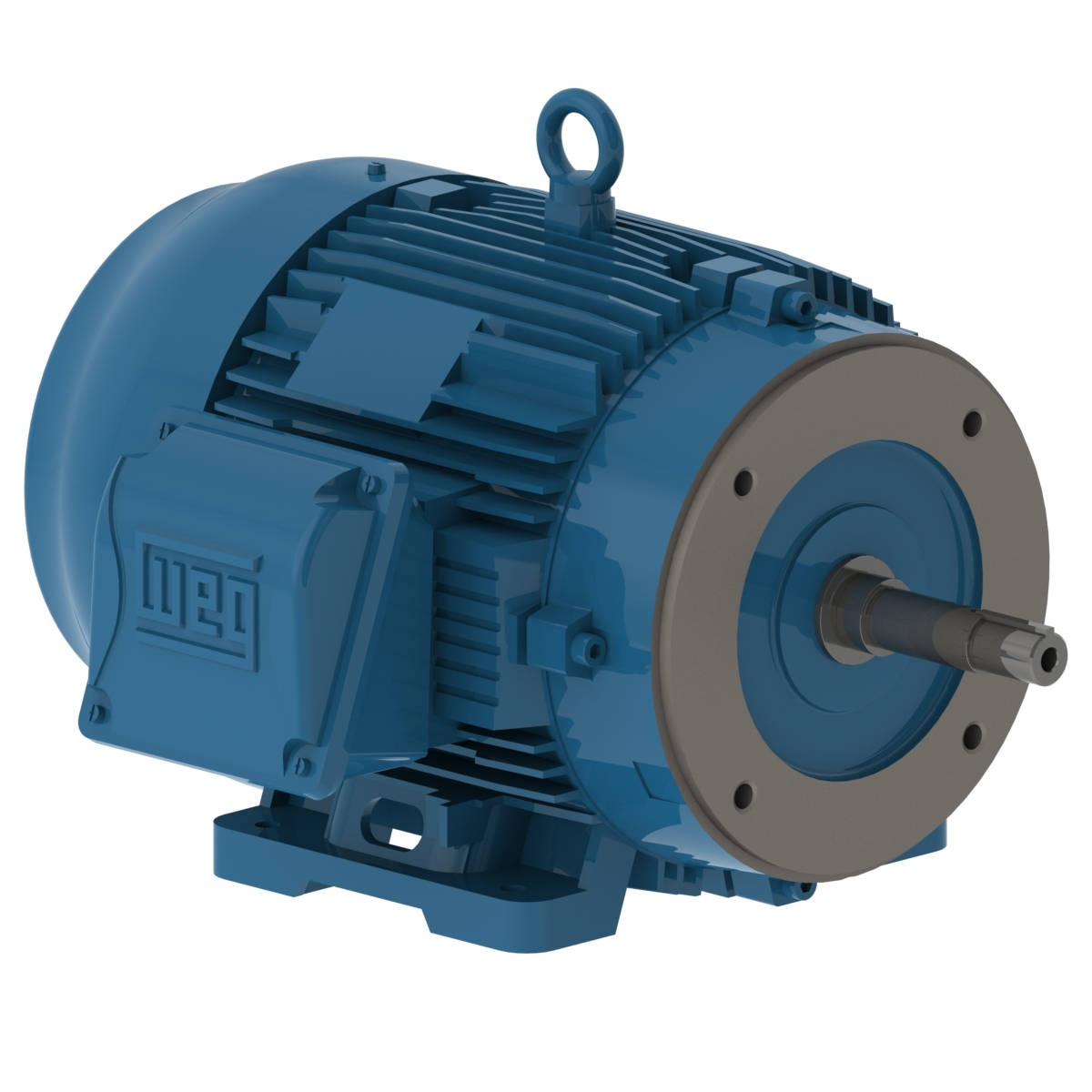

00718ET3E213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ET3E213JM-W22

Selected accessories will also be added to cart

$1,139.25 / Each

Quantity:

IC411 - TEFC, IP55, 213JM/215JM Frame, 230/460/380VAC, 50/60Hz, 3 Phase

Details
Purchase Components

Electric Motors

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	18.4/9.18 A
L. R. Amperes	130/65.2 A
LRC	7.1x(Code H)
No load current	8.80/4.40 A
Rated torque	22.3 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	171 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.7

Power factor

50%	75%	100%
0.66	0.76	0.82

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	11.0 A
L. R. Amperes	61.6 A
LRC	5.6x(Code F)
No load current	4.00 A
Rated torque	27.1 ft.lb
Locked rotor torque	170 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	171 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	89.6

Power factor

50%	75%	100%
0.72	0.81	0.85

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	10.5 A
L. R. Amperes	65.1 A
LRC	6.2x(Code G)
No load current	4.30 A
Rated torque	27.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	171 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	90.2

Power factor

50%	75%	100%
0.69	0.78	0.84

Frame	213/5JM
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	10.3 A
L. R. Amperes	69.0 A
LRC	6.7x(Code H)
No load current	4.55 A
Rated torque	27.0 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	171 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	90.2

Power factor

50%	75%	100%
0.66	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Mechanical Seal
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
