/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00712ET3Y160M-W22 WEG 10HP/7.5kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: 00712ET3Y160M-W22

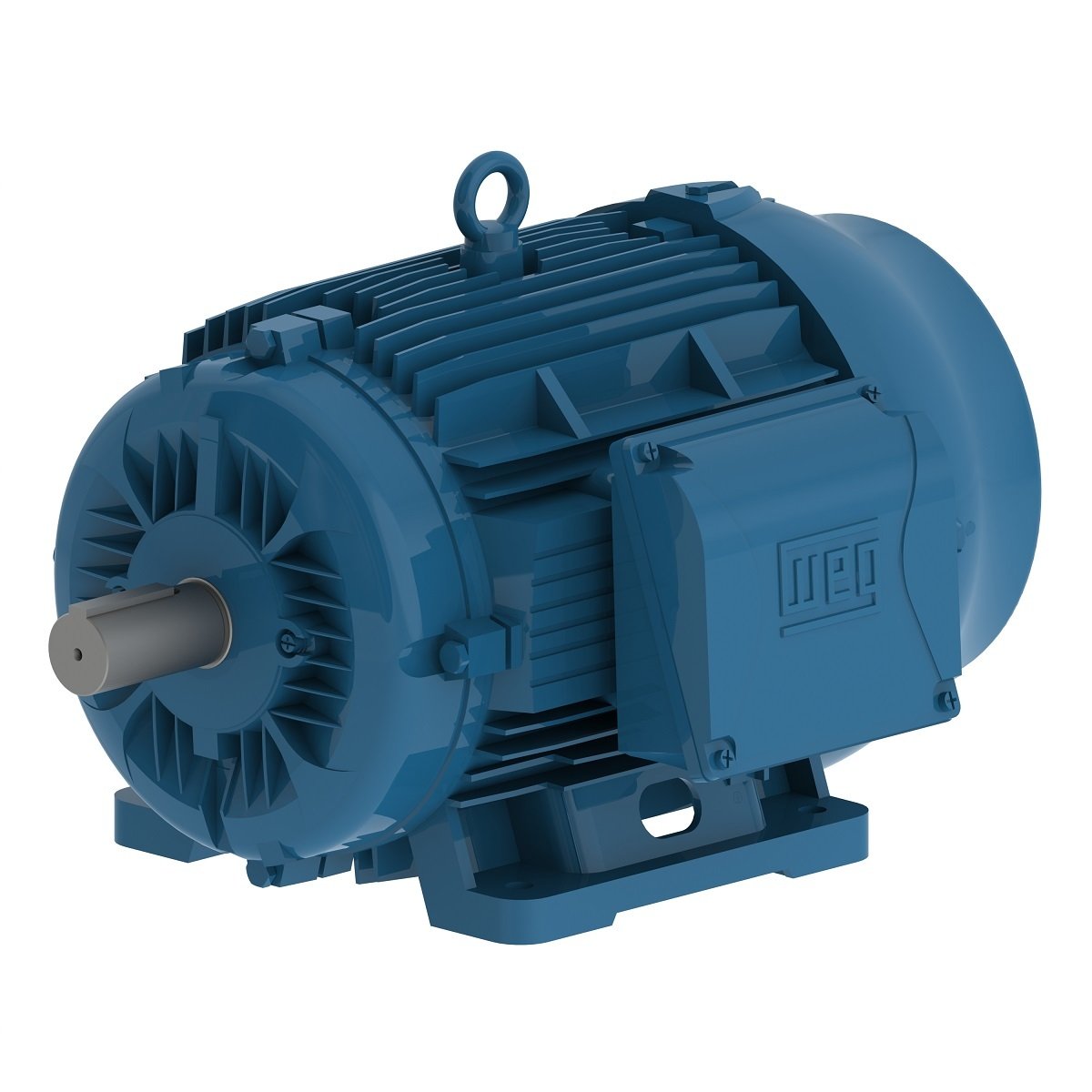

00712ET3Y160M-W22 WEG 10HP/7.5kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712ET3Y160M-W22

Selected accessories will also be added to cart

$1,729.50 / Each

Quantity:

IC411-TEFC, IP55, 160M Frame, 460/380-415VAC 3-Phase 50/60Hz, 11586745, Foot Mount, Cast Iron Frame, 42mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	160M
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	16.0 A
L. R. Amperes	96.0 A
LRC	6.0
No load current	7.20 A
Rated torque	53.4 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	90.3	90.4

Power factor

50%	75%	100%
0.67	0.74	0.79

Frame	160M
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	15.5 A
L. R. Amperes	101 A
LRC	6.5
No load current	7.70 A
Rated torque	53.1 ft.lb
Locked rotor torque	240 %
Breakdown torque	290 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.3	90.3	90.7

Power factor

50%	75%	100%
0.63	0.71	0.77

Frame	160M
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	15.3 A
L. R. Amperes	107 A
LRC	7.0
No load current	8.20 A
Rated torque	53.1 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.8	90.2	90.8

Power factor

50%	75%	100%
0.60	0.68	0.75

Frame	160M
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	13.8 A
L. R. Amperes	102 A
LRC	7.4
No load current	7.50 A
Rated torque	43.9 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	91.0

Power factor

50%	75%	100%
0.59	0.69	0.75

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
