/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/00712EG3E254T-W22 WEG 7.5HP Electric Motor, 1200RPM

Product ID: 00712EG3E254T-W22

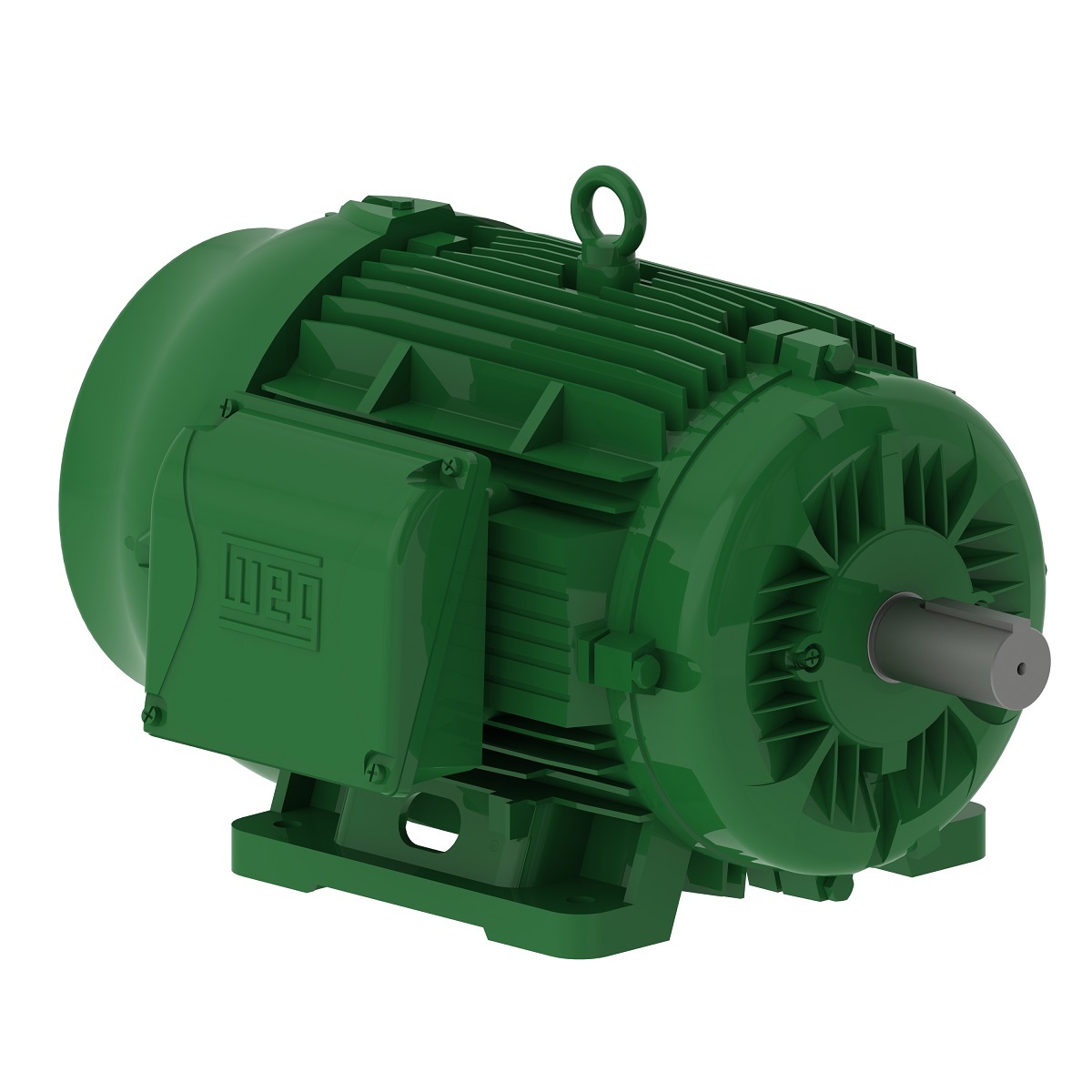

00712EG3E254T-W22 WEG 7.5HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712EG3E254T-W22

Selected accessories will also be added to cart

$1,704.00 / Each

Quantity:

IC411 - TEFC, IP55, 254T/256T Frame, 208-230/460VAC 60Hz 3 Phase, 12604362, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	18.9/9.46 A
L. R. Amperes	129/64.3 A
LRC	6.8x(Code H)
No load current	10.0/5.00 A
Rated torque	33.5 ft.lb
Locked rotor torque	250 %
Breakdown torque	310 %
Locked rotor time	90s (cold) 50s (hot)

Moment of inertia (J)	4.57 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	318 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.7	92.4

Power factor

50%	75%	100%
0.60	0.72	0.79

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	380 V
Rated current	10.9 A
L. R. Amperes	60.0 A
LRC	5.5x(Code F)
No load current	5.00 A
Rated torque	40.4 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	81s (cold) 45s (hot)

Moment of inertia (J)	4.57 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	318 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.67	0.78	0.84

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	10.6 A
L. R. Amperes	63.6 A
LRC	6.0x(Code G)
No load current	5.30 A
Rated torque	40.4 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	81s (cold) 45s (hot)

Moment of inertia (J)	4.57 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	318 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.3 A
L. R. Amperes	65.9 A
LRC	6.4x(Code H)
No load current	5.50 A
Rated torque	40.2 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	81s (cold) 45s (hot)

Moment of inertia (J)	4.57 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	318 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.61	0.74	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
