/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/AGEIS RING/00518ET3E184JM-SG WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM

Product ID: 00518ET3E184JM-SG

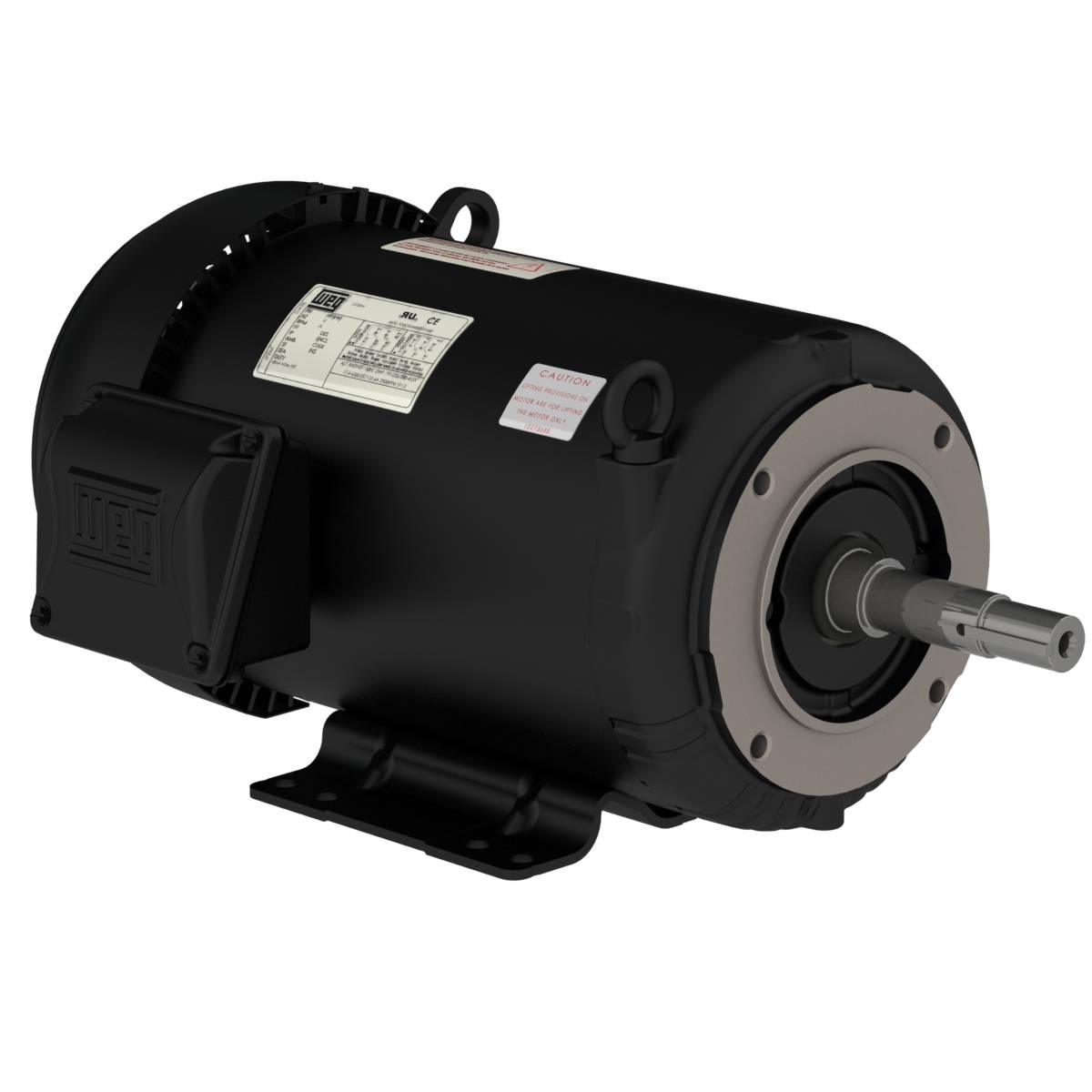

00518ET3E184JM-SG WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3E184JM-SG

Selected accessories will also be added to cart

$998.25 / Each

Quantity:

IC411 - TEFC, IP55, 182JM/184JM Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 13196705, Rolled Steel, NEMA Premium Efficiency, Foot Mounted, Internal AEGIS Shaft Grounding Ring

Details
Purchase Components

Electric Motors

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	13.0/6.49 A
L. R. Amperes	90.9/45.4 A
LRC	7.0x(Code J)
No load current	6.89/3.44 A
Rated torque	15.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.3080 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	84.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.60	0.73	0.80

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1425 rpm
Slip	5.00 %
Rated voltage	190-220/380 V
Rated current	15.8-13.6/7.88 A
L. R. Amperes	91.4-78.9/45.7 A
LRC	5.8x(Code G)
No load current	6.74-5.82/3.37 A
Rated torque	18.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3080 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	84.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.9	87.2	84.9

Power factor

50%	75%	100%
0.68	0.80	0.84

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	7.47 A
L. R. Amperes	50.8 A
LRC	6.8x(Code J)
No load current	4.16 A
Rated torque	18.2 ft.lb
Locked rotor torque	220 %
Breakdown torque	290 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3080 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	84.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.2	86.1

Power factor

50%	75%	100%
0.59	0.73	0.80

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
