/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-1 Mounting/00512AT3HCT215TF1-W22 WEG 5HP Cooling Tower Electric Motor, 1200RPM

Product ID: 00512AT3HCT215TF1-W22

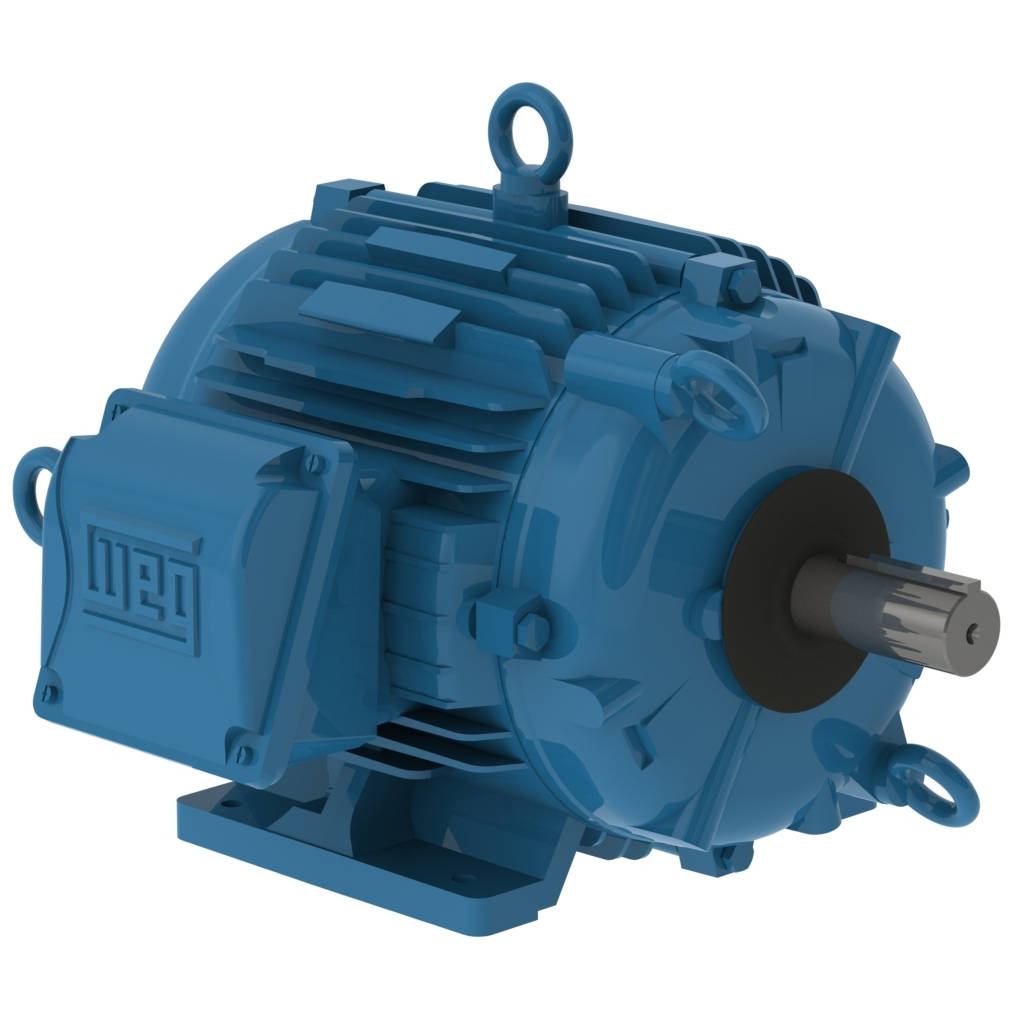

00512AT3HCT215TF1-W22 WEG 5HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512AT3HCT215TF1-W22

Selected accessories will also be added to cart

$1,172.25 / Each

Quantity:

IC410 - TEAO, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 12126790, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, F-1 Mounting, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	575 V
Rated current	5.46 A
L. R. Amperes	37.2 A
LRC	6.8x(Code J)
No load current	2.76 A
Rated torque	22.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	102s (cold) 57s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	0.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.58	0.70	0.76

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
