/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-1 Mounting/00512AT3ECT215TF1-W2 WEG 5HP Cooling Tower Electric Motor, 1200RPM

Product ID: 00512AT3ECT215TF1-W2

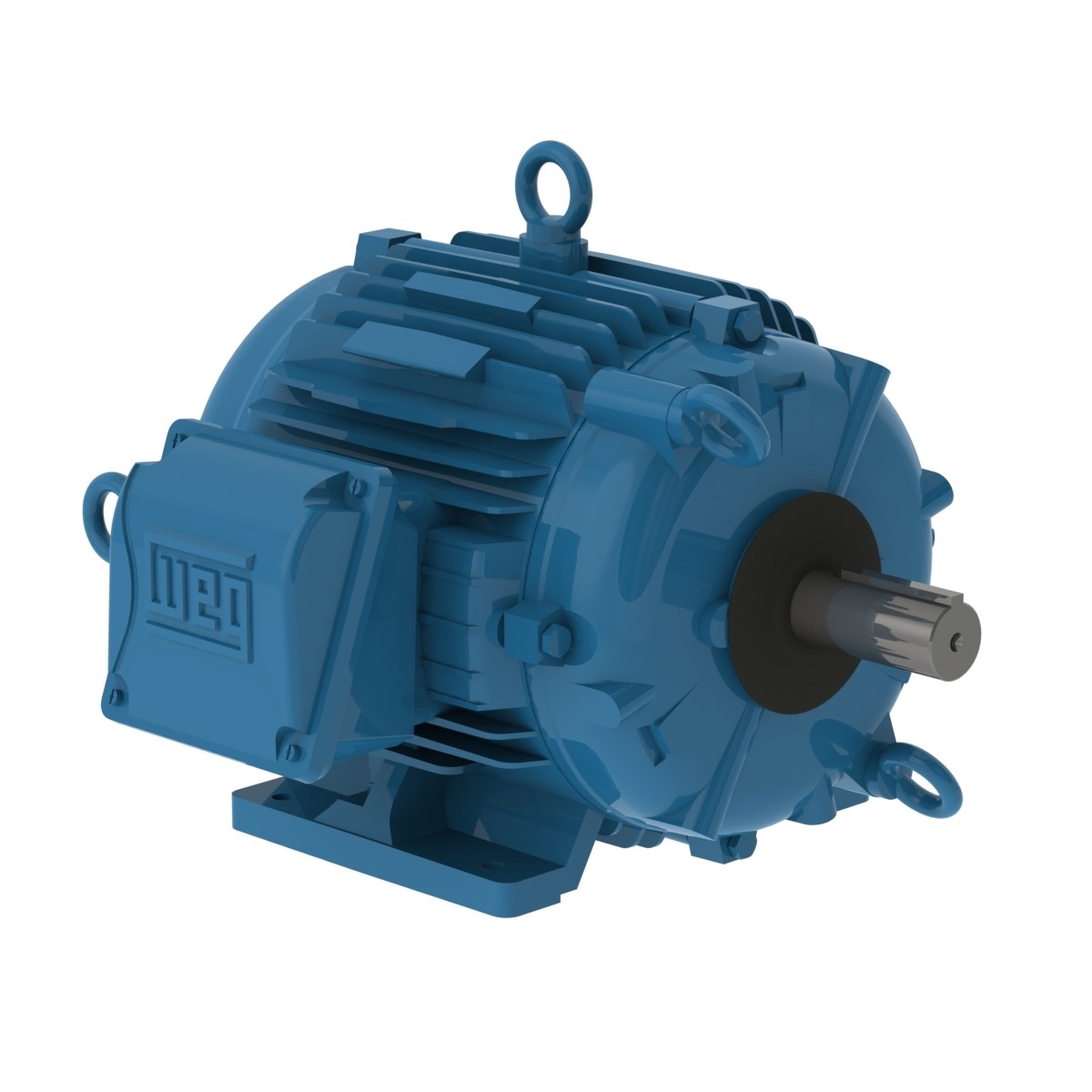

00512AT3ECT215TF1-W2 WEG 5HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512AT3ECT215TF1-W2

Selected accessories will also be added to cart

$1,172.25 / Each

Quantity:

IC418-TEAO, IP55, 213/215T Frame, 208-230/460 VAC, 50/60Hz, 3 Phase
12566918, Foot-mounted, Cast Iron Frame, NEMA Premium Efficiency, 1 3/8" Keyed Shaft

Details
Purchase Components

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	15.1-13.7/6.83 A
L. R. Amperes	103-92.9/46.4 A
LRC	6.8x(Code J)
No load current	5.95-6.90/3.45 A
Rated torque	22.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	102s (cold) 57s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC418 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
