/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00509ET3Y160M-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 900RPM

Product ID: 00509ET3Y160M-W22

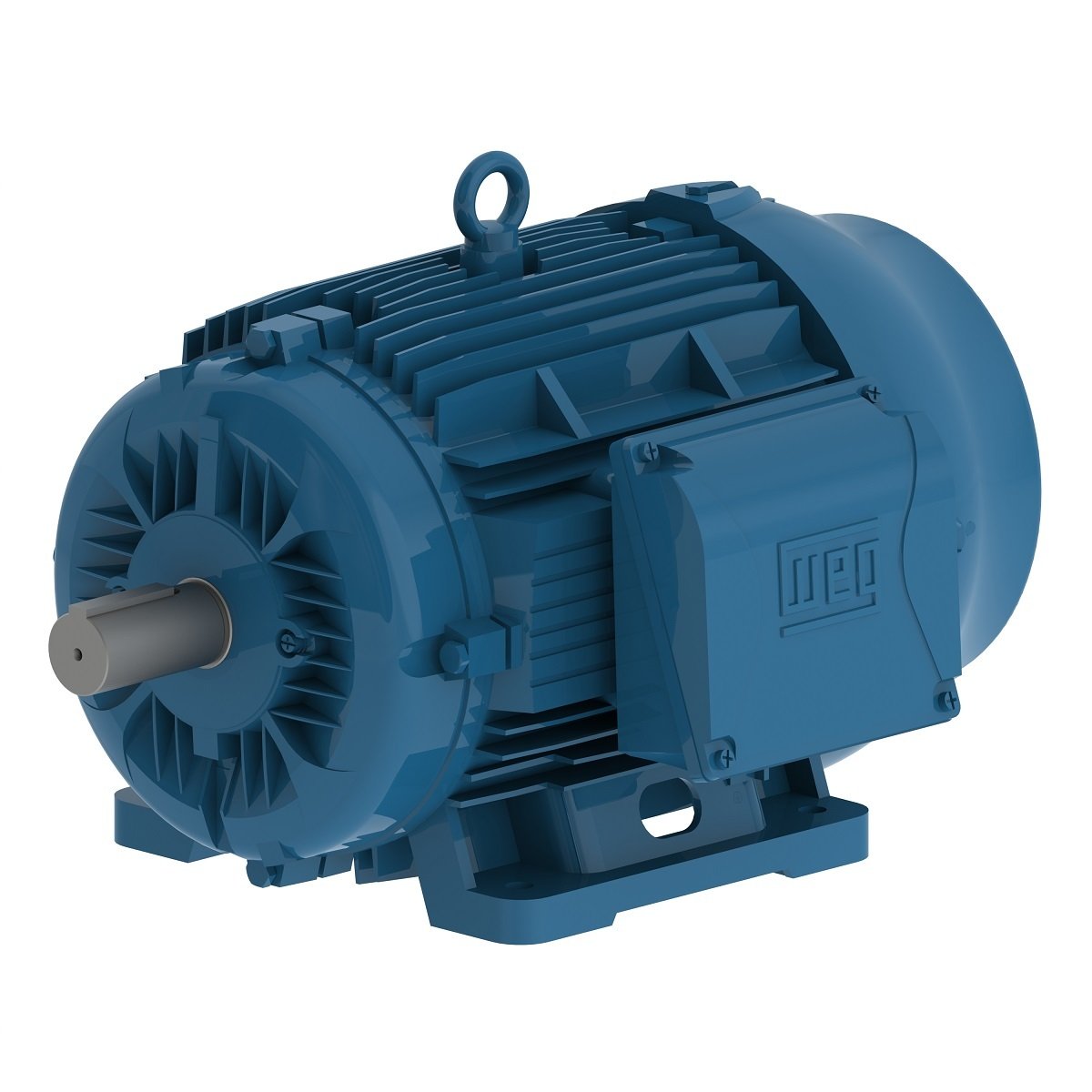

00509ET3Y160M-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00509ET3Y160M-W22

Selected accessories will also be added to cart

$1,683.00 / Each

Quantity:

IC411-TEFC, IP55, 160M Frame, 460/380-415VAC 3-Phase 50/60Hz, 11616109, Foot Mount, Cast Iron Frame, 42mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	160M
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	13.1 A
L. R. Amperes	62.9 A
LRC	4.8
No load current	7.40 A
Rated torque	53.6 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	268 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.0	86.5	86.5

Power factor

50%	75%	100%
0.56	0.68	0.74

Frame	160M
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	727 rpm
Slip	3.07 %
Rated voltage	400 V
Rated current	12.7 A
L. R. Amperes	63.5 A
LRC	5.0
No load current	8.00 A
Rated torque	53.4 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	268 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	87.0

Power factor

50%	75%	100%
0.52	0.65	0.72

Frame	160M
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	729 rpm
Slip	2.80 %
Rated voltage	415 V
Rated current	12.5 A
L. R. Amperes	65.0 A
LRC	5.2
No load current	8.50 A
Rated torque	53.3 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	268 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	86.0	87.2

Power factor

50%	75%	100%
0.49	0.62	0.70

Frame	160M
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	881 rpm
Slip	2.11 %
Rated voltage	460 V
Rated current	11.3 A
L. R. Amperes	62.2 A
LRC	5.5
No load current	7.30 A
Rated torque	44.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	64s (cold) 36s (hot)

Moment of inertia (J)	2.90 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	268 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	87.5

Power factor

50%	75%	100%
0.49	0.62	0.70

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
