/Products/Electric Motors/3 Phase/WEG/Oil Well Pump/00509ES3EOW256T-W22 WEG 5HP Oil Well Pump Electric Motor, 900RPM

Product ID: 00509ES3EOW256T-W22

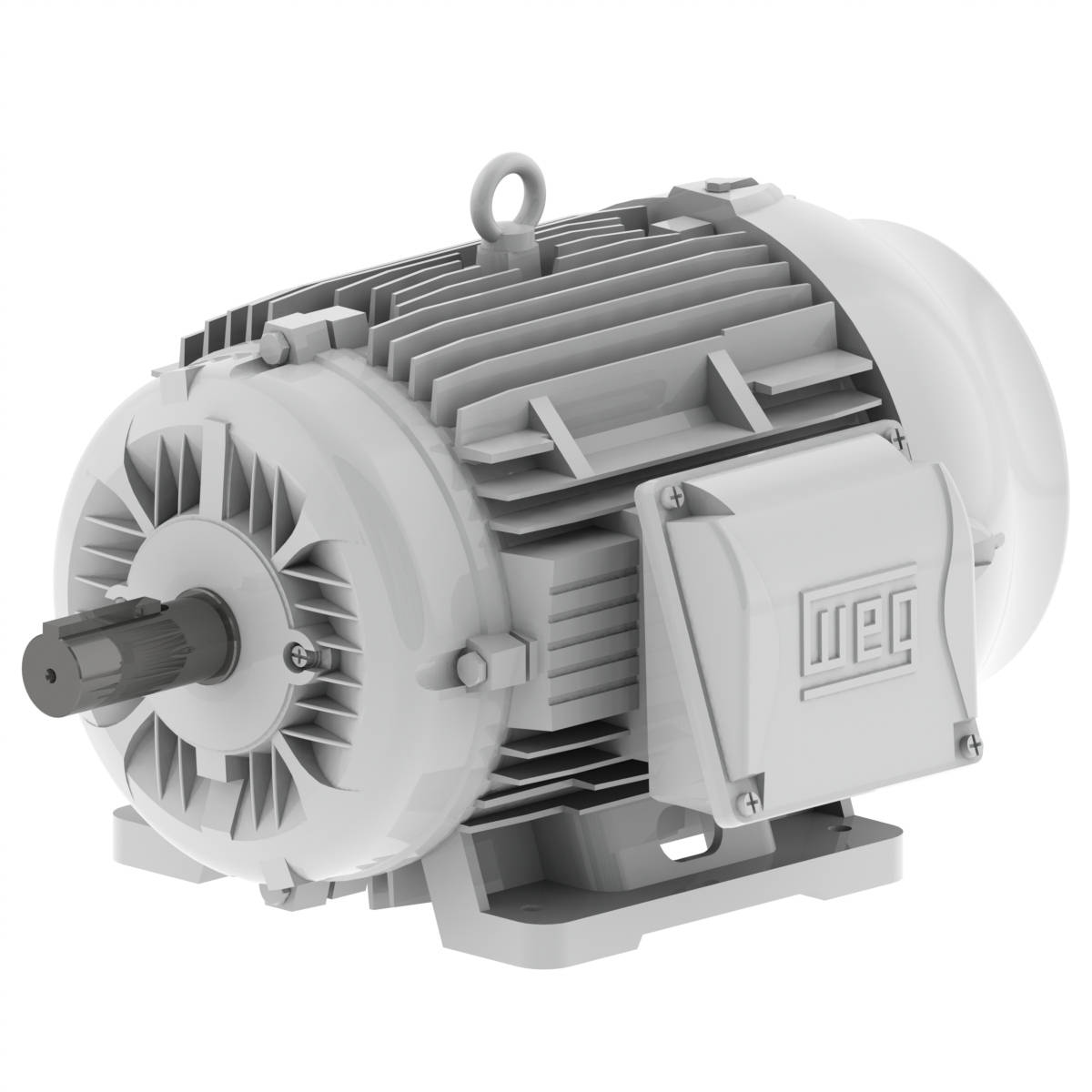

00509ES3EOW256T-W22 WEG 5HP Oil Well Pump Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00509ES3EOW256T-W22

Selected accessories will also be added to cart

$1,681.50 / Each

Quantity:

IC-411-TEFC, IP55, 254T/256T Frame, 208-230/460VAC 60Hz 3 Phase, 12683745, Standard Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254/6T
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	825 rpm
Slip	8.33 %
Rated voltage	208-230/460 V
Rated current	16.1-14.5/7.27 A
L. R. Amperes	101-91.6/45.8 A
LRC	6.3x(Code J)
No load current	6.63-6.00/3.00 A
Rated torque	31.8 ft.lb
Locked rotor torque	300 %
Breakdown torque	0 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	3.14 sq.ft.lb
Design	D
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.5	77.0	77.0

Power factor

50%	75%	100%
0.64	0.76	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 9010 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
