/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Close-Coupled Pump/00336OS1B182JP-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00336OS1B182JP-S

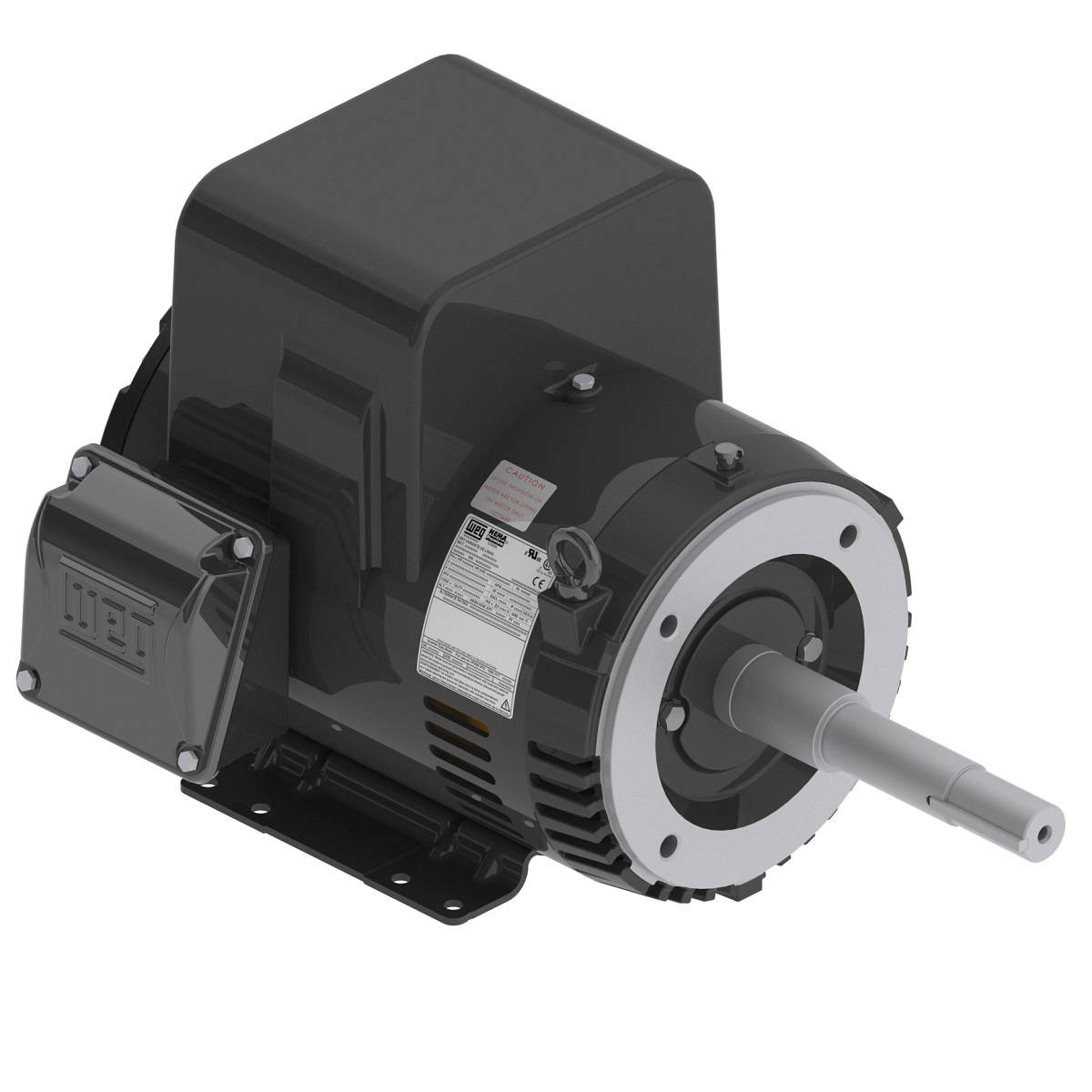

00336OS1B182JP-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OS1B182JP-S

Selected accessories will also be added to cart

$732.75 / Each

Quantity:

IC01 - ODP, 182JP/184JP Frame, 115/208-230VAC 60Hz Single Phase, 15194881, Rolled Steel, Foot Mounted

Details
Purchase Components

Electric Motors

Frame	182/4JP
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	115/208-230 V
Rated current	25.8/13.8-12.9 A
L. R. Amperes	173/92.5-86.4 A
LRC	6.7x(Code H)
No load current	10.5/3.90-5.20 A
Rated torque	4.49 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %

Locked rotor time	19s (cold) 11s (hot)
Design	L
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	59.8 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.8	80.6	81.5

Power factor

50%	75%	100%
0.80	0.88	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
