/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JM Close-Coupled Pump/AEGIS Ring/00318OT3V182JM-SG WEG 3HP JM Close-Coupled Pump Electric Motor, 1800RPM

Product ID: 00318OT3V182JM-SG

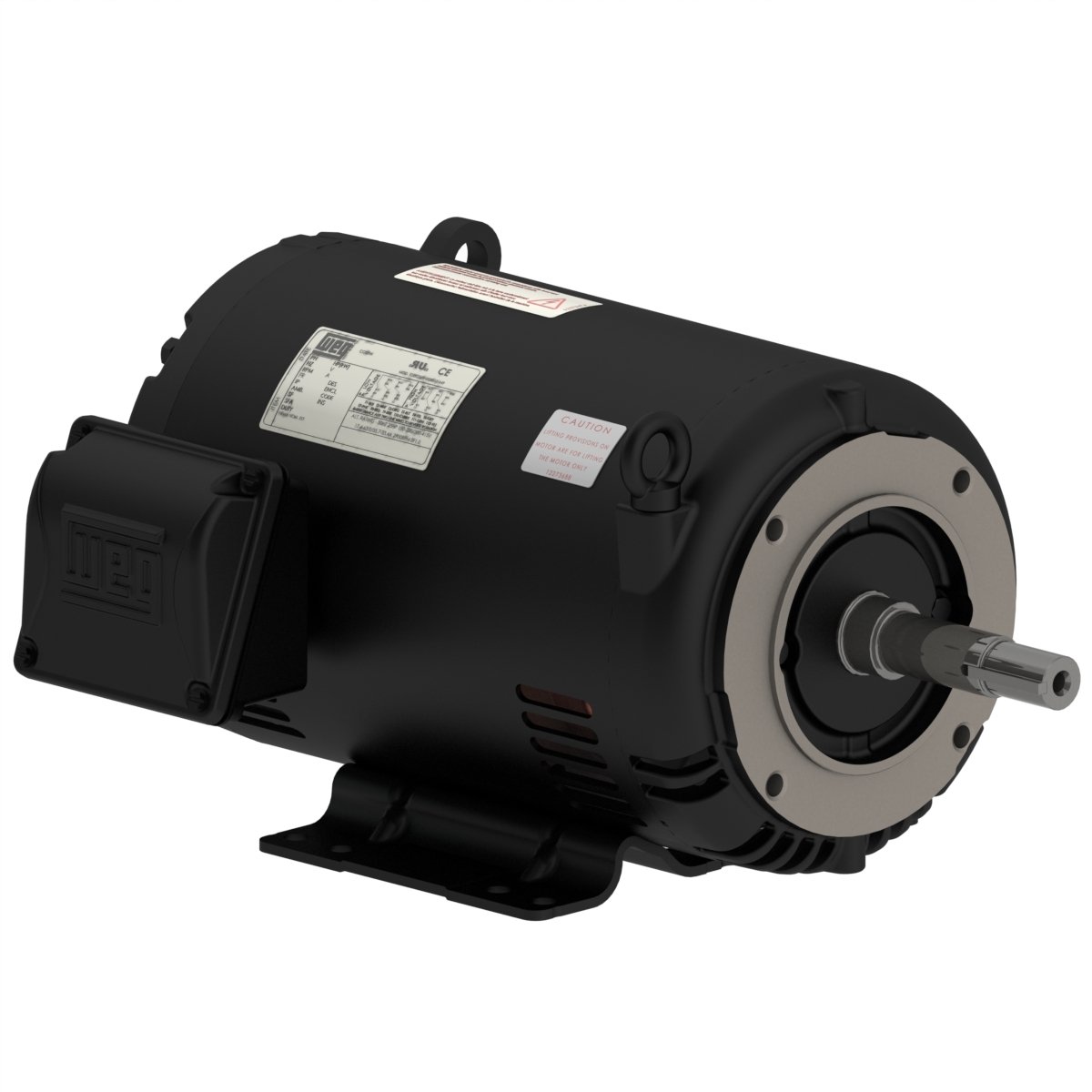

00318OT3V182JM-SG WEG 3HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318OT3V182JM-SG

Selected accessories will also be added to cart

$626.25 / Each

Quantity:

IC01 - ODP, 182JM/184JM Frame, 200/400VAC 3-Phase 60Hz, 14327875, Foot Mount, Rolled Steel, NEMA Premium Efficiency, Internal AEGIS Ring

Details
Purchase Components

Electric Motors

Frame	182/4JM
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	200/400 V
Rated current	8.88/4.44 A
L. R. Amperes	74.6/37.3 A
LRC	8.4x(Code K)
No load current	4.76/2.38 A
Rated torque	8.81 ft.lb
Locked rotor torque	220 %
Breakdown torque	330 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.3092 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	65.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.60	0.73	0.80

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
