/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEAO, F-1 Mounting/00318AT3ECT182TF1-W22 WEG 3HP Cooling Tower Electric Motor, 1800RPM

Product ID: 00318AT3ECT182TF1-W2

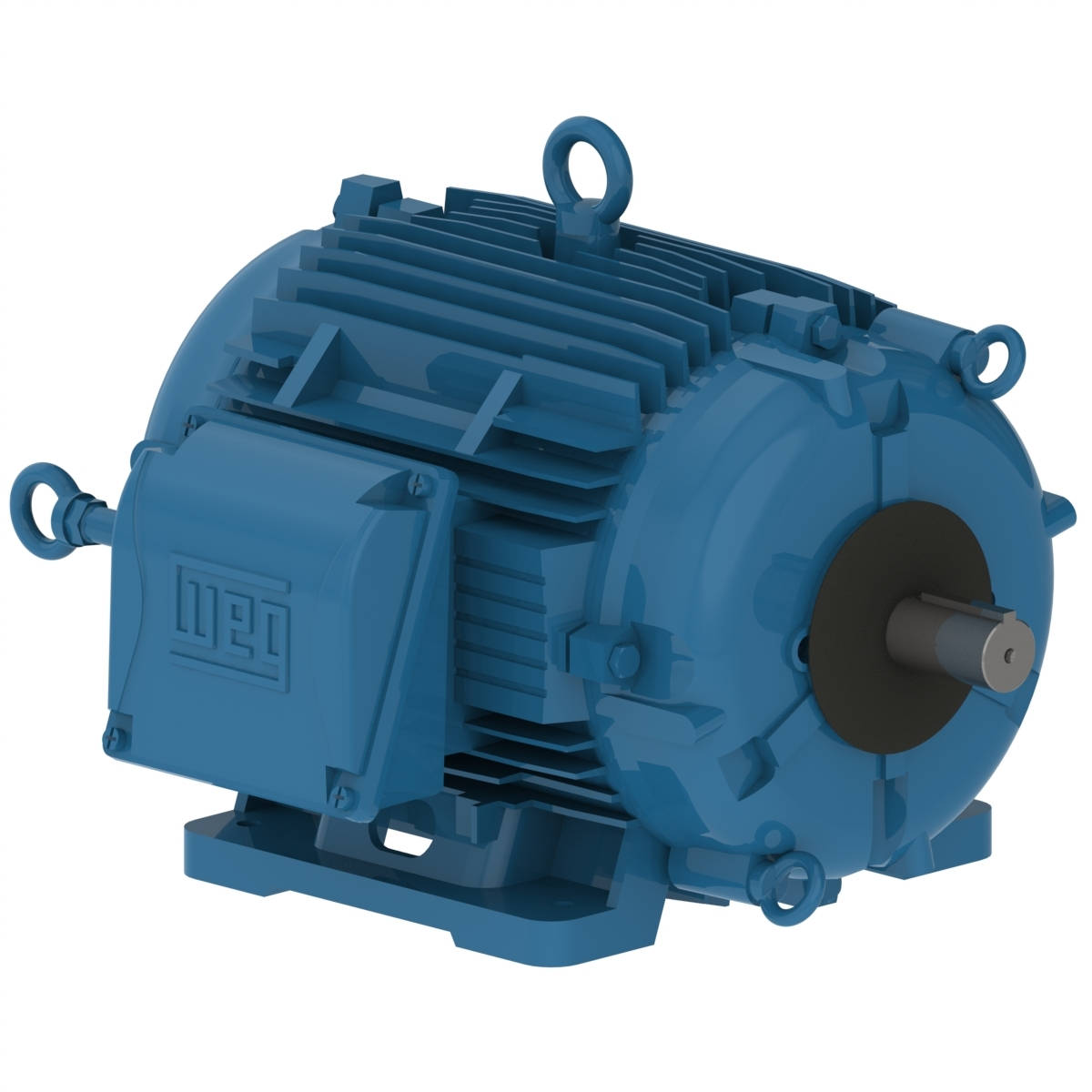

00318AT3ECT182TF1-W22 WEG 3HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318AT3ECT182TF1-W22

Selected accessories will also be added to cart

$603.00 / Each

Quantity:

IC410 - TEAO, IP55, 182T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12126745, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	8.65-7.82/3.91 A
L. R. Amperes	70.1-63.3/31.7 A
LRC	8.1x(Code K)
No load current	3.45-4.00/2.00 A
Rated torque	8.95 ft.lb
Locked rotor torque	229 %
Breakdown torque	340 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	91.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.61	0.73	0.79

Frame	182T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	4.60 A
L. R. Amperes	29.0 A
LRC	6.3x(Code H)
No load current	2.00 A
Rated torque	10.9 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	91.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.68	0.79	0.83

Frame	182T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	4.48 A
L. R. Amperes	31.4 A
LRC	7.0x(Code J)
No load current	2.15 A
Rated torque	10.9 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	91.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.64	0.76	0.81

Frame	182T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	4.43 A
L. R. Amperes	33.2 A
LRC	7.5x(Code J)
No load current	2.25 A
Rated torque	10.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	91.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.61	0.73	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
