/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/00236ET3WAL90LFF-W22 WEG 3HP/2.2kW IEC Tru-Metric Electric Motor, 3600RPM

Product ID: 00236ET3WAL90LFF-W22

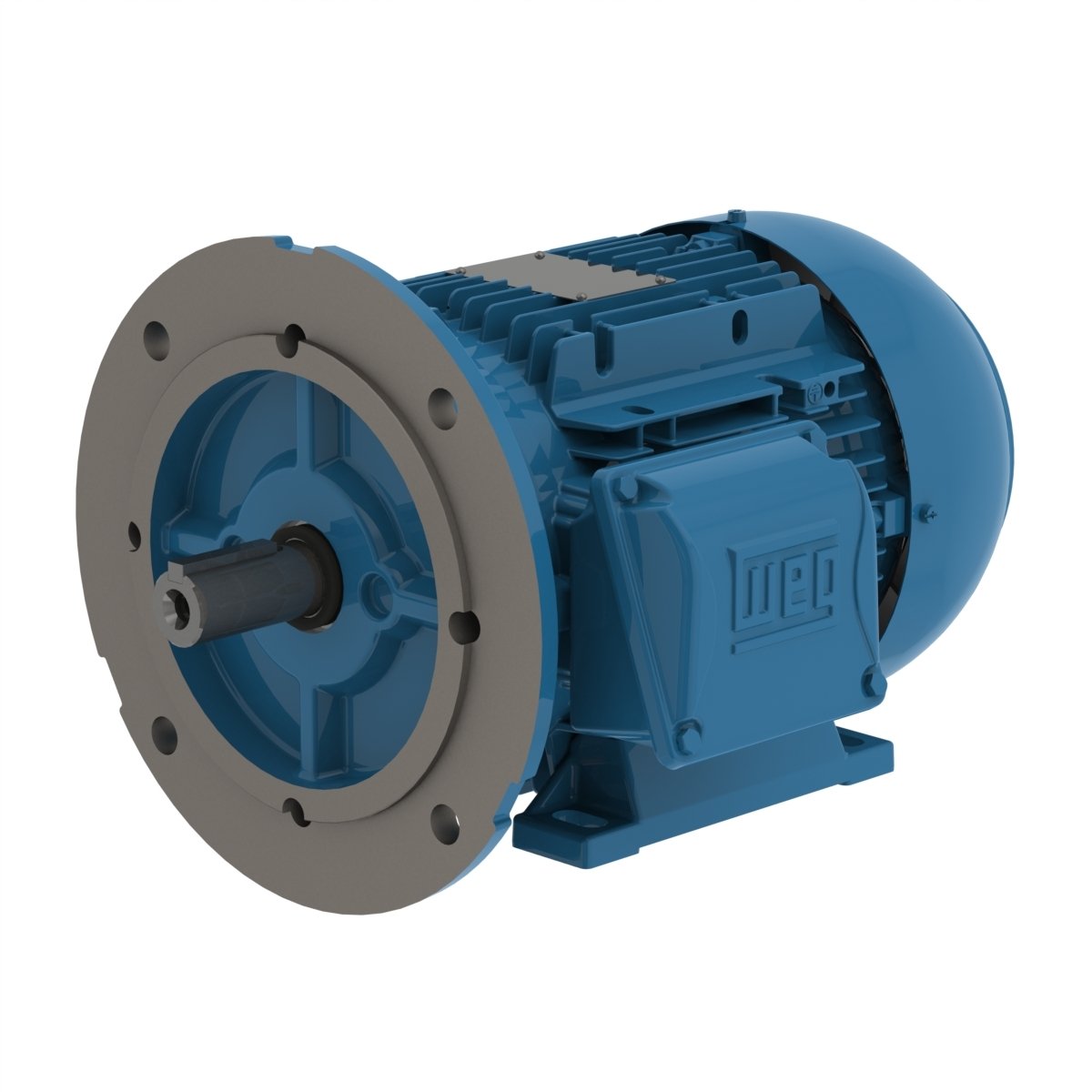

00236ET3WAL90LFF-W22 WEG 3HP/2.2kW IEC Tru-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3WAL90LFF-W22

Selected accessories will also be added to cart

$611.25 / Each

Quantity:

IC411-TEFC, IP55, 90S/L Frame, 460/220-240/380-415VAC 3-Phase 50/60Hz, 13984021, Foot Mounted, FF-Flange, 24mm Keyed Shaft, Aluminum Frame, Multimounting

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2840 rpm
Slip	5.33 %
Rated voltage	220/380 V
Rated current	7.81/4.52 A
L. R. Amperes	55.4/32.1 A
LRC	7.1
No load current	2.85/1.65 A
Rated torque	5.47 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.0617 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	48.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	86.4	85.9

Power factor

50%	75%	100%
0.70	0.81	0.86

Frame	90S/L
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2865 rpm
Slip	4.50 %
Rated voltage	230/400 V
Rated current	7.70/4.43 A
L. R. Amperes	58.6/33.7 A
LRC	7.6
No load current	3.22/1.85 A
Rated torque	5.42 ft.lb
Locked rotor torque	340 %
Breakdown torque	350 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.0617 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	48.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.0	86.5	86.3

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	90S/L
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	240/415 V
Rated current	7.56/4.37 A
L. R. Amperes	60.5/35.0 A
LRC	8.0
No load current	3.54/2.05 A
Rated torque	5.41 ft.lb
Locked rotor torque	380 %
Breakdown torque	380 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.0617 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	48.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.3	86.4	86.5

Power factor

50%	75%	100%
0.61	0.74	0.81

Frame	90S/L
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	460 V
Rated current	3.85 A
L. R. Amperes	35.0 A
LRC	9.1
No load current	1.70 A
Rated torque	4.47 ft.lb
Locked rotor torque	430 %
Breakdown torque	459 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0617 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	48.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	86.5

Power factor

50%	75%	100%
0.64	0.76	0.83

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
