/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/Foot Mount, AEGIS Ring/00218OT3V145T-SG WEG 2HP General Purpose Electric Motor, 1800RPM

Product ID: 00218OT3V145T-SG

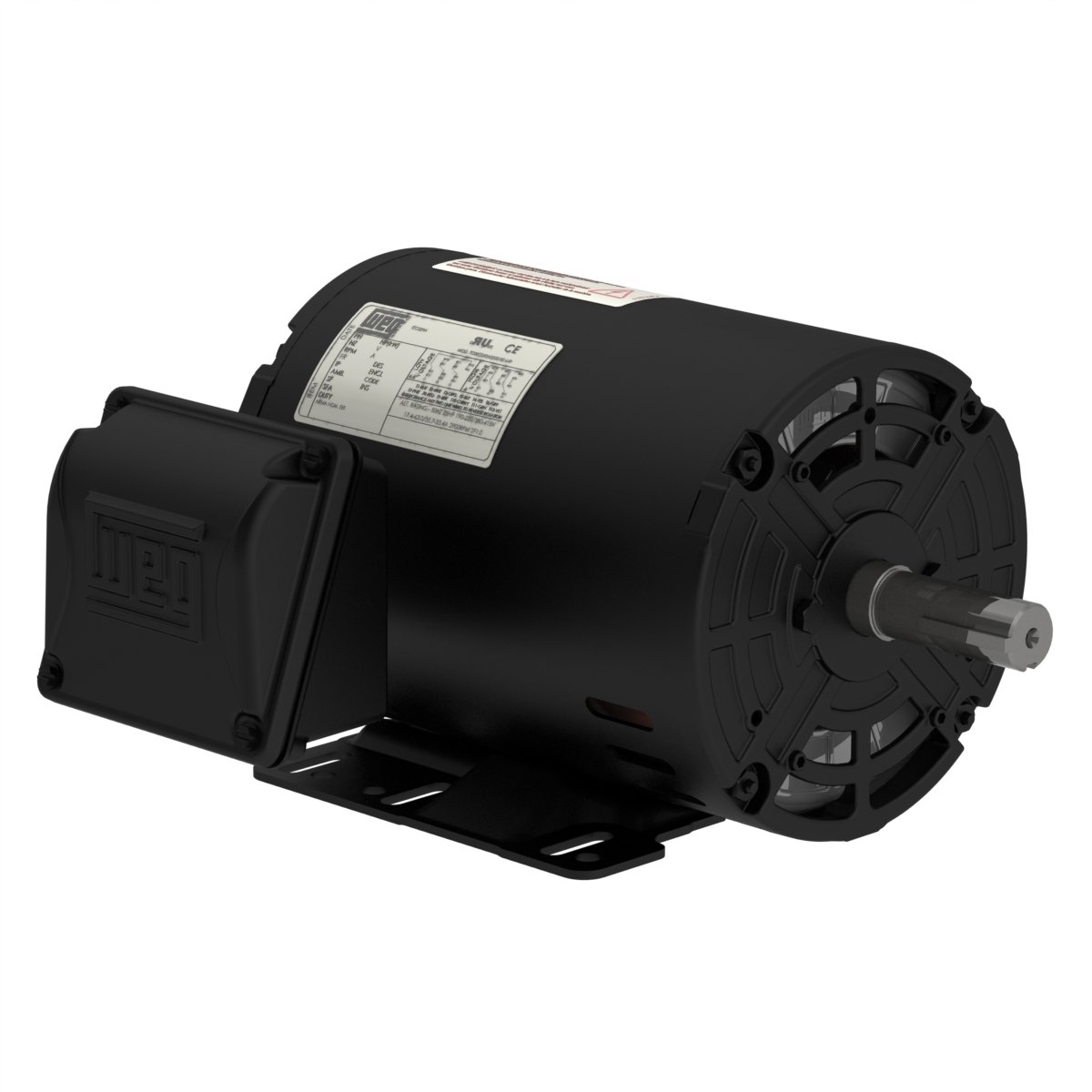

00218OT3V145T-SG WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT3V145T-SG

Selected accessories will also be added to cart

$474.00 / Each

Quantity:

IC01 - ODP, 143T/145T Frame, 200/400VAC 60Hz, 12792532, Rolled Steel NEMA Premium Efficiency, Foot Mount, AEGIS Shaft Grounding Ring, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1740 rpm
Slip	3.33 %
Rated voltage	200/400 V
Rated current	6.19/3.09 A
L. R. Amperes	47.6/23.8 A
LRC	7.7x(Code K)
No load current	3.16/1.58 A
Rated torque	5.96 ft.lb
Locked rotor torque	260 %
Breakdown torque	320 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.1168 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	40.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.61	0.74	0.81

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
