/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JM Close-Coupled Pump/JM, ODP/00212OT3E184JM-S WEG 2HP JM Close-Coupled Pump Electric Motor, 1200RPM

Product ID: 00212OT3E184JM-S

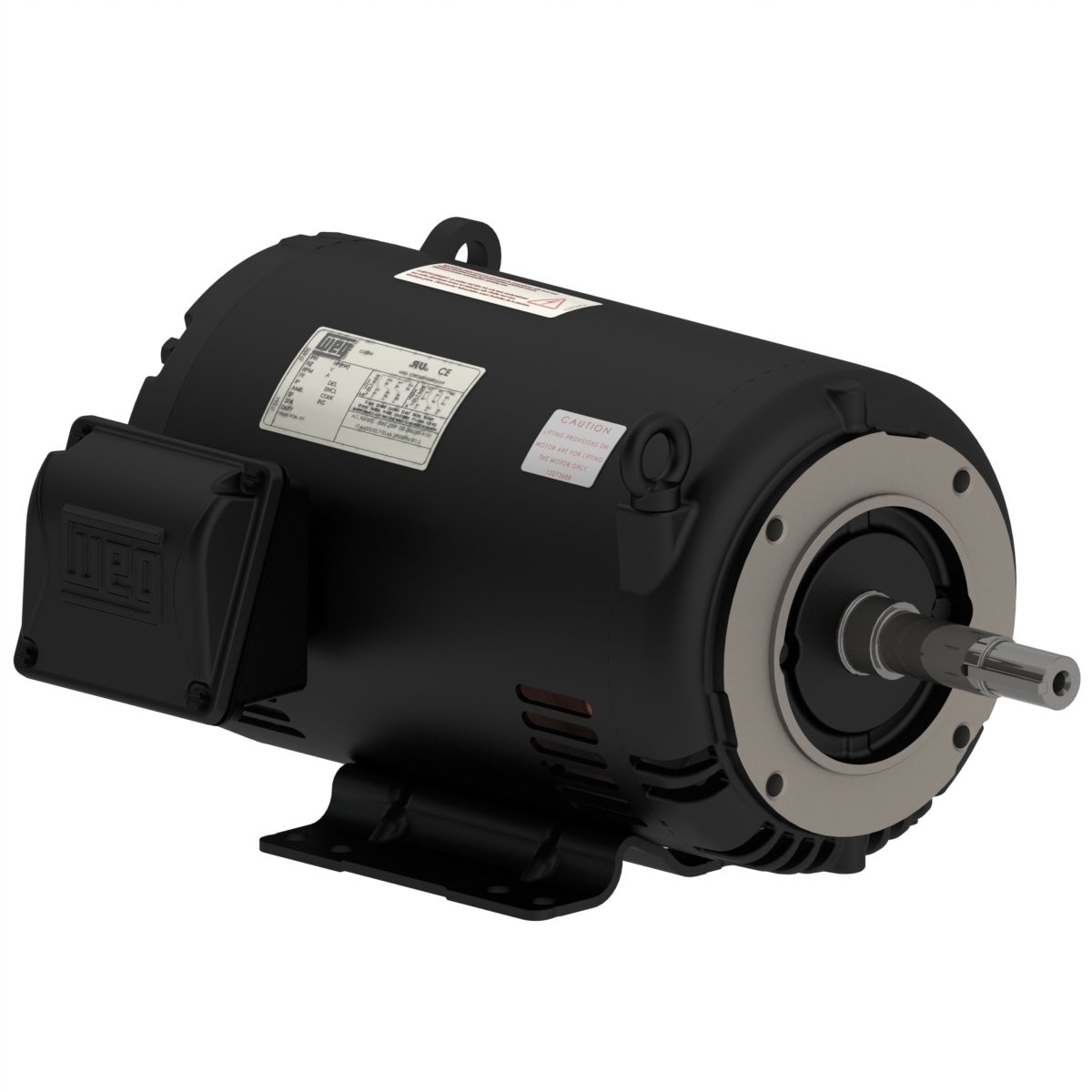

00212OT3E184JM-S WEG 2HP JM Close-Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212OT3E184JM-S

Selected accessories will also be added to cart

$612.00 / Each

Quantity:

IC01 - ODP, 182JM/184JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 12676986, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1165 rpm
Slip	2.92 %
Rated voltage	208-230/460 V
Rated current	6.52-5.90/2.95 A
L. R. Amperes	43.0-38.9/19.5 A
LRC	6.6x(Code J)
No load current	2.95-3.42/1.71 A
Rated torque	8.89 ft.lb
Locked rotor torque	200 %
Breakdown torque	300 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	74.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	87.5

Power factor

50%	75%	100%
0.53	0.66	0.73

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	945 rpm
Slip	5.50 %
Rated voltage	190/380 V
Rated current	6.96/3.48 A
L. R. Amperes	35.5/17.7 A
LRC	5.1x(Code G)
No load current	3.37/1.69 A
Rated torque	11.0 ft.lb
Locked rotor torque	160 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	74.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.8	84.9	83.0

Power factor

50%	75%	100%
0.61	0.73	0.79

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	955 rpm
Slip	4.50 %
Rated voltage	220/415 V
Rated current	6.34/3.36 A
L. R. Amperes	38.7/20.5 A
LRC	6.1x(Code J)
No load current	3.75/1.99 A
Rated torque	10.8 ft.lb
Locked rotor torque	210 %
Breakdown torque	270 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	74.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.0	84.6	84.0

Power factor

50%	75%	100%
0.53	0.66	0.74

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
