/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/00212ET3E184JM-S WEG 2HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00212ET3E184JM-S

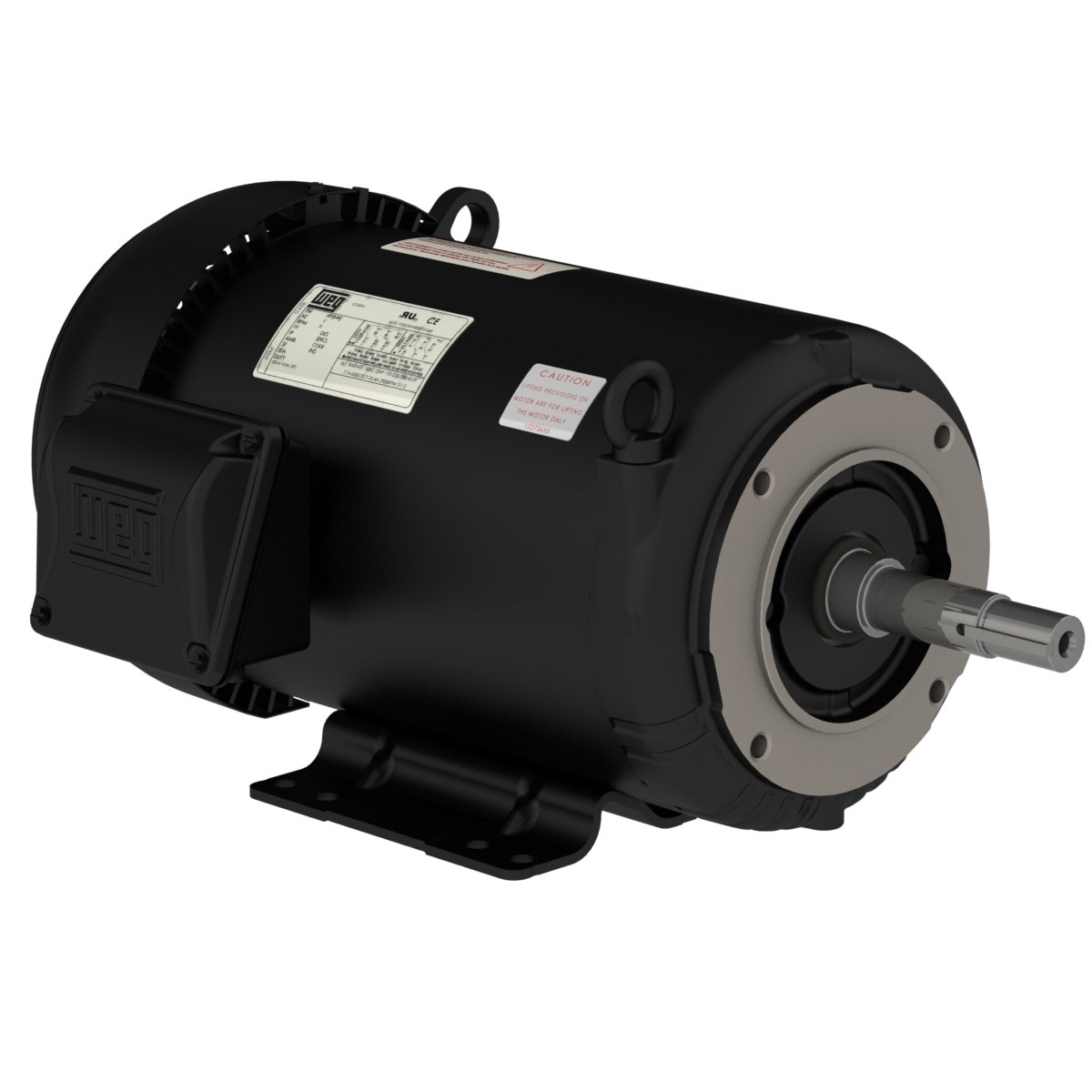

00212ET3E184JM-S WEG 2HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212ET3E184JM-S

Selected accessories will also be added to cart

$765.75 / Each

Quantity:

IC411 - TEFC, IP55, 182JM/184JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13485858, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	6.63-6.00/3.00 A
L. R. Amperes	49.8-45.0/22.5 A
LRC	7.5x(Code K)
No load current	3.23-3.74/1.87 A
Rated torque	8.86 ft.lb
Locked rotor torque	260 %
Breakdown torque	370 %
Locked rotor time	79s (cold) 44s (hot)

Moment of inertia (J)	0.3424 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	88.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	88.5

Power factor

50%	75%	100%
0.50	0.62	0.71

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	955 rpm
Slip	4.50 %
Rated voltage	190/380 V
Rated current	7.00/3.50 A
L. R. Amperes	42.7/21.3 A
LRC	6.1x(Code H)
No load current	3.69/1.85 A
Rated torque	10.8 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3424 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	88.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.3	86.4	85.7

Power factor

50%	75%	100%
0.57	0.69	0.76

Frame	182/4JM
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	220/415 V
Rated current	6.43/3.41 A
L. R. Amperes	45.7/24.2 A
LRC	7.1x(Code K)
No load current	4.05/2.15 A
Rated torque	10.7 ft.lb
Locked rotor torque	280 %
Breakdown torque	350 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3424 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	88.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.7	86.0	86.2

Power factor

50%	75%	100%
0.50	0.63	0.71

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
