/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Brake/00158ET3EBM145T-W22 WEG 1.5HP Electric Brake Motor, 1800RPM

Product ID: 00158ET3EBM145T-W22

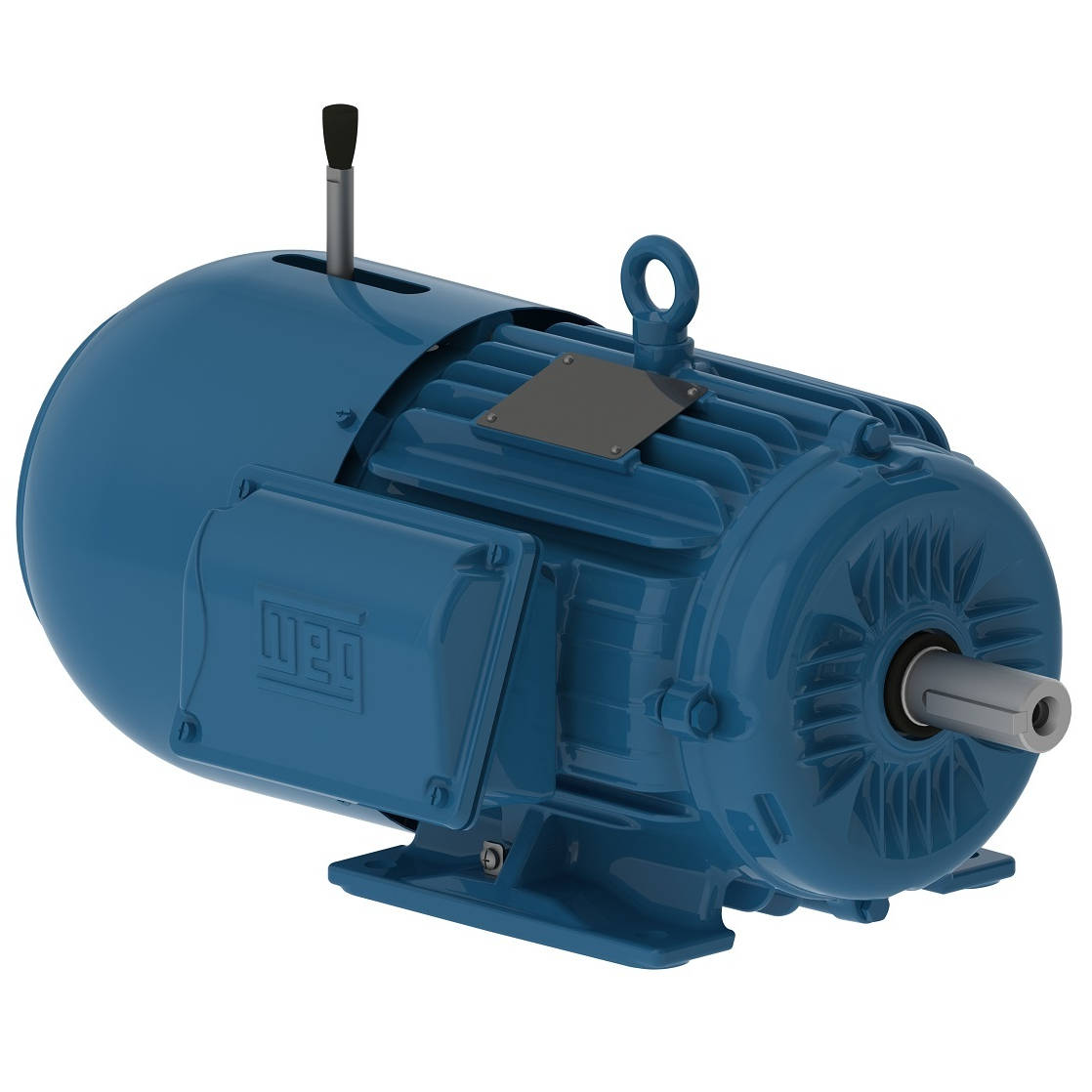

00158ET3EBM145T-W22 WEG 1.5HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3EBM145T-W22

Selected accessories will also be added to cart

$1,176.75 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 230/460VAC 60Hz 3 Phase, 13474018, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	4.04/2.02 A
L. R. Amperes	33.9/17.0 A
LRC	8.4x(Code L)
No load current	2.20/1.10 A
Rated torque	4.49 ft.lb
Locked rotor torque	290 %
Breakdown torque	350 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1431 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	60.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	86.5

Power factor

50%	75%	100%
0.60	0.70	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Brake Type	WEG - 16.0 Nm
Brake input Voltage	220-240 V
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
