/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00158ET3EAL90L-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: 00158ET3EAL90L-W22

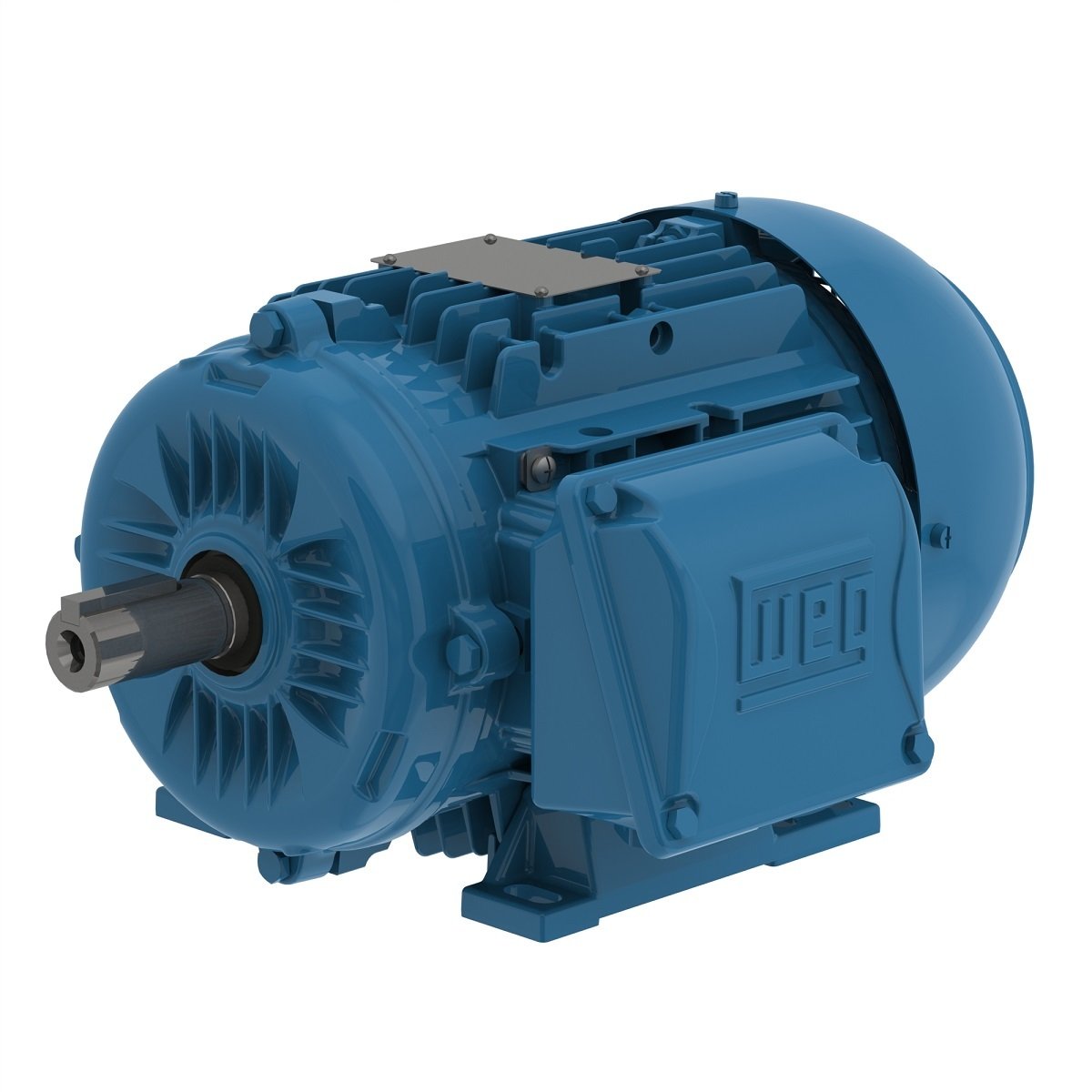

00158ET3EAL90L-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3EAL90L-W22

Selected accessories will also be added to cart

$393.00 / Each

Quantity:

IC411 - TEFC, IP55, 90S/L Frame, 208-230/460/380-415VAC 3-Phase 50/60Hz, 13958269, Foot Mounted, 24mm Keyed Shaft, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	6.26-5.66/2.83 A
L. R. Amperes	52.0-47.0/23.5 A
LRC	8.3
No load current	0.000-3.36/1.68 A
Rated torque	5.90 ft.lb
Locked rotor torque	310 %
Breakdown torque	390 %
Locked rotor time	25s (cold) 14s (hot)

Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	46.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	86.5

Power factor

50%	75%	100%
0.55	0.68	0.77

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	3.22 A
L. R. Amperes	20.9 A
LRC	6.5
No load current	1.70 A
Rated torque	7.20 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	23s (cold) 13s (hot)

Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	46.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	85.3	85.3

Power factor

50%	75%	100%
0.63	0.75	0.83

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	3.17 A
L. R. Amperes	23.8 A
LRC	7.5
No load current	2.00 A
Rated torque	7.15 ft.lb
Locked rotor torque	290 %
Breakdown torque	350 %
Locked rotor time	23s (cold) 13s (hot)

Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	46.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.1	85.0	85.6

Power factor

50%	75%	100%
0.54	0.68	0.77

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
