/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Foot Mount/00158ES1E145T-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

Product ID: 00158ES1E145T-S

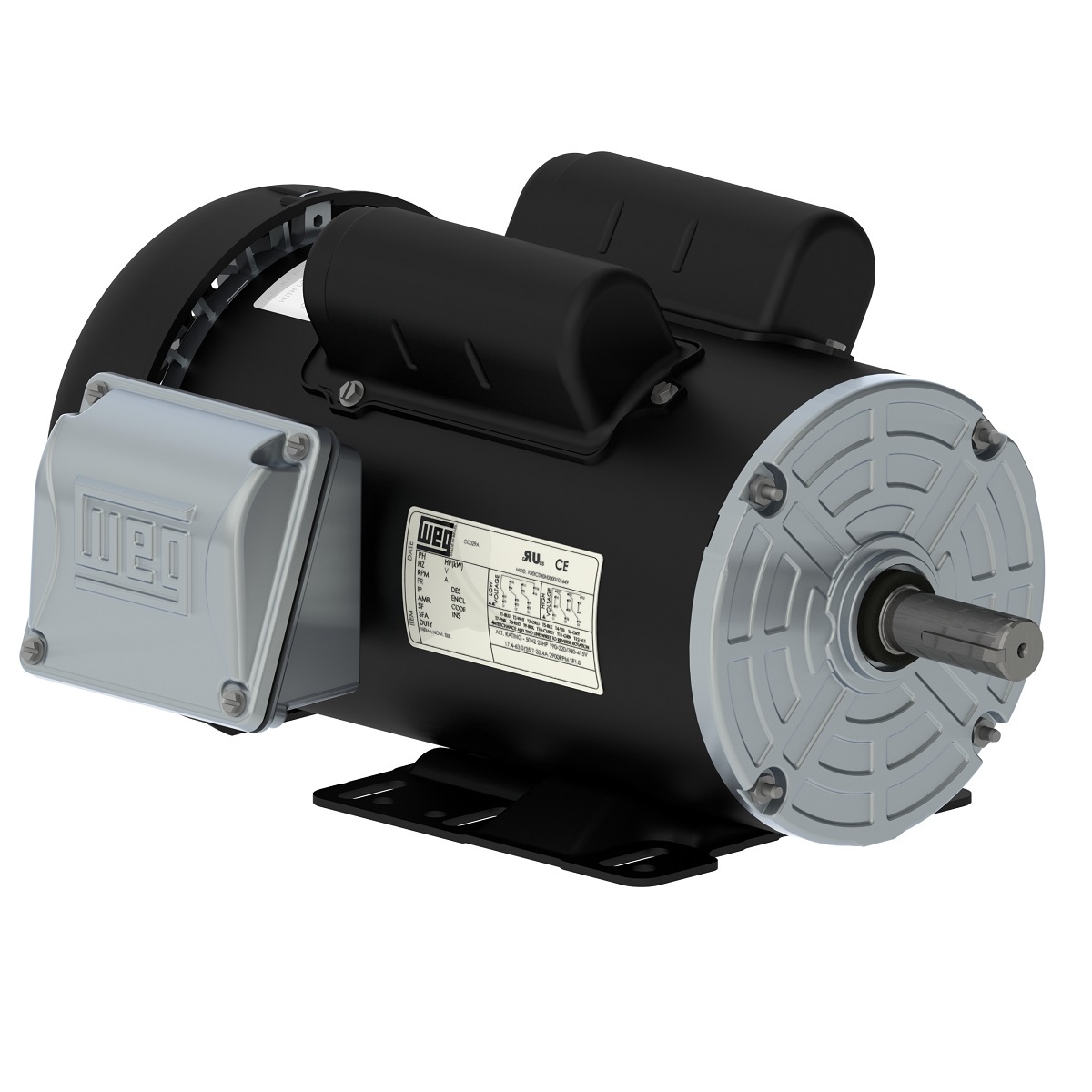

00158ES1E145T-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ES1E145T-S

Selected accessories will also be added to cart

$458.25 / Each

Quantity:

IC411-TEFC, IP55, 143T/145T Frame, 115/208-230VAC Single Phase 60Hz, 14004823, Foot Mounted, Rolled Steel, Standard Efficiency, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	208-230/460 V
Rated current	8.27-7.48/3.74 A
L. R. Amperes	66.2-59.8/29.9 A
LRC	8.0x(Code L)
No load current	3.10-3.60/1.80 A
Rated torque	4.45 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.1426 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	46.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
69.0	75.0	77.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
