/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Footless/00156OT3ER143TC-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

Product ID: 00156OT3ER143TC-S

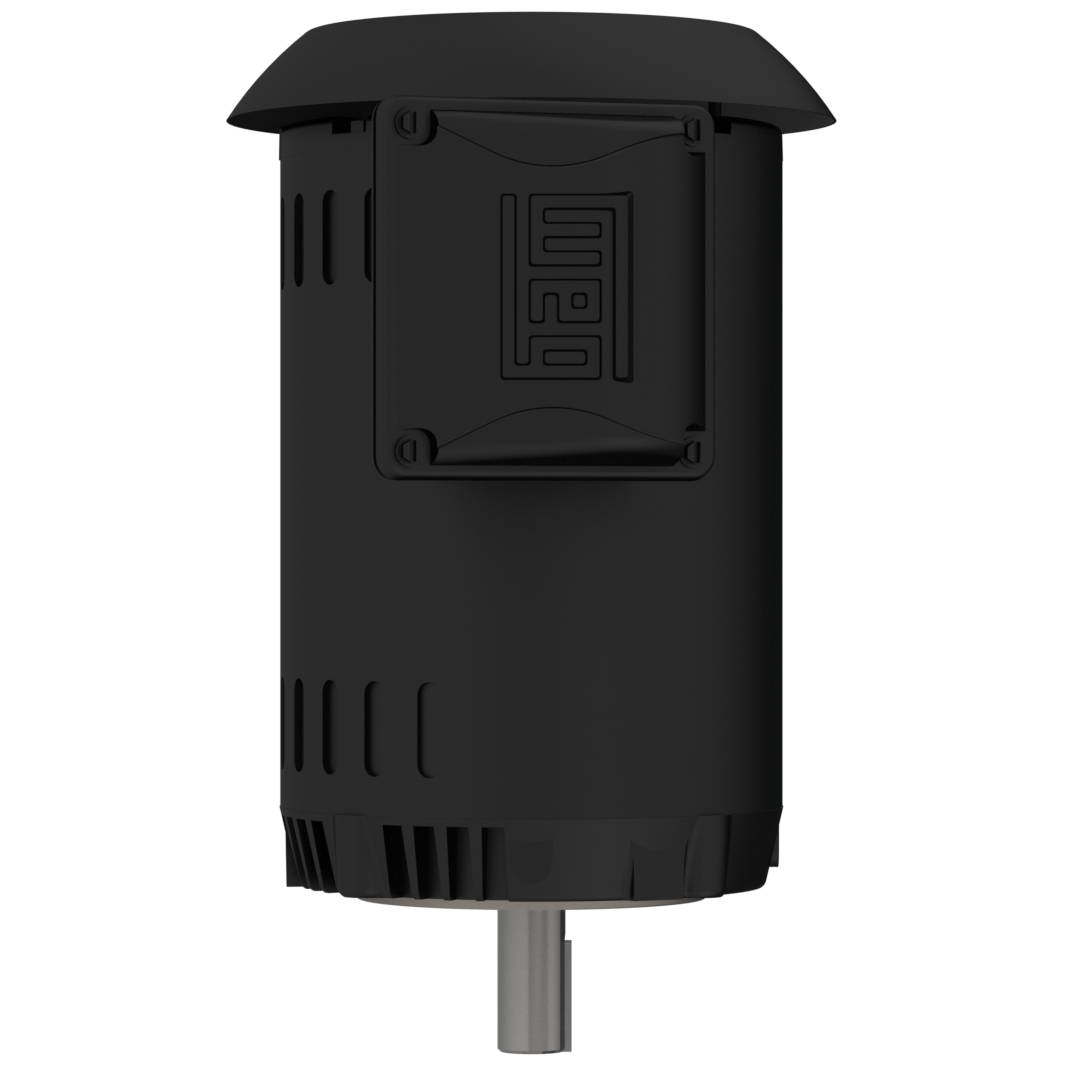

00156OT3ER143TC-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT3ER143TC-S

Selected accessories will also be added to cart

$398.25 / Each

Quantity:

IC01 - ODP, 143TC/145TC Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 14459459, NEMA Premium Efficiency, Rolled Steel Frame, Footless, C-Face

Details
Purchase Components

Electric Motors

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	3.70/1.85 A
L. R. Amperes	31.8/15.9 A
LRC	8.6x(Code K)
No load current	1.62/0.809 A
Rated torque	2.24 ft.lb
Locked rotor torque	210 %
Breakdown torque	330 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	29.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	84.0	84.0

Power factor

50%	75%	100%
0.73	0.83	0.89

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	190-220/380 V
Rated current	4.40-3.80/2.20 A
L. R. Amperes	29.5-25.5/14.7 A
LRC	6.7x(Code H)
No load current	1.59-1.37/0.796 A
Rated torque	2.73 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	29.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.7	83.6	82.7

Power factor

50%	75%	100%
0.79	0.88	0.92

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	2.09 A
L. R. Amperes	16.3 A
LRC	7.8x(Code J)
No load current	0.977 A
Rated torque	2.71 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	29.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	83.3	83.2

Power factor

50%	75%	100%
0.71	0.83	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
