Product ID: 00156OT3E143T-S

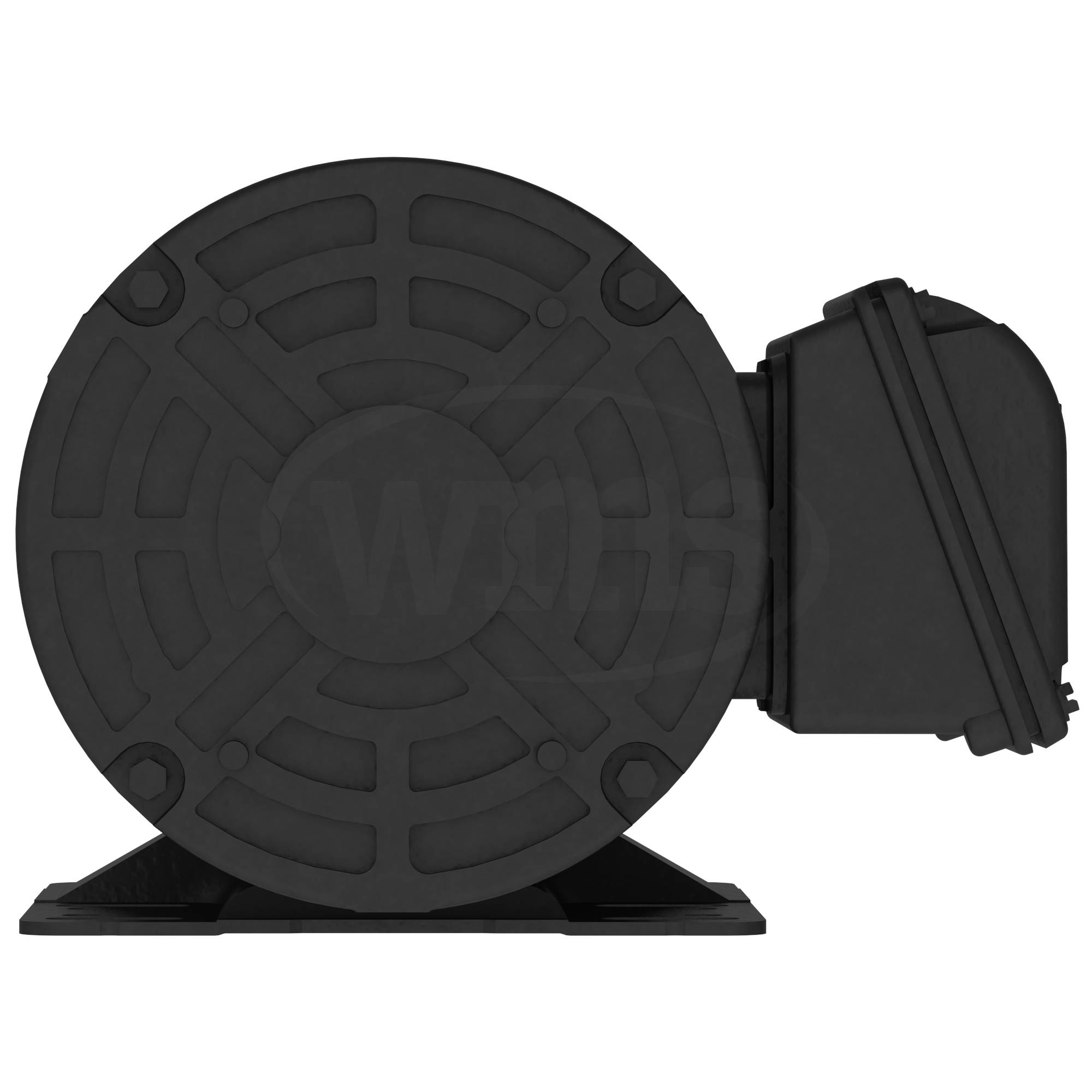

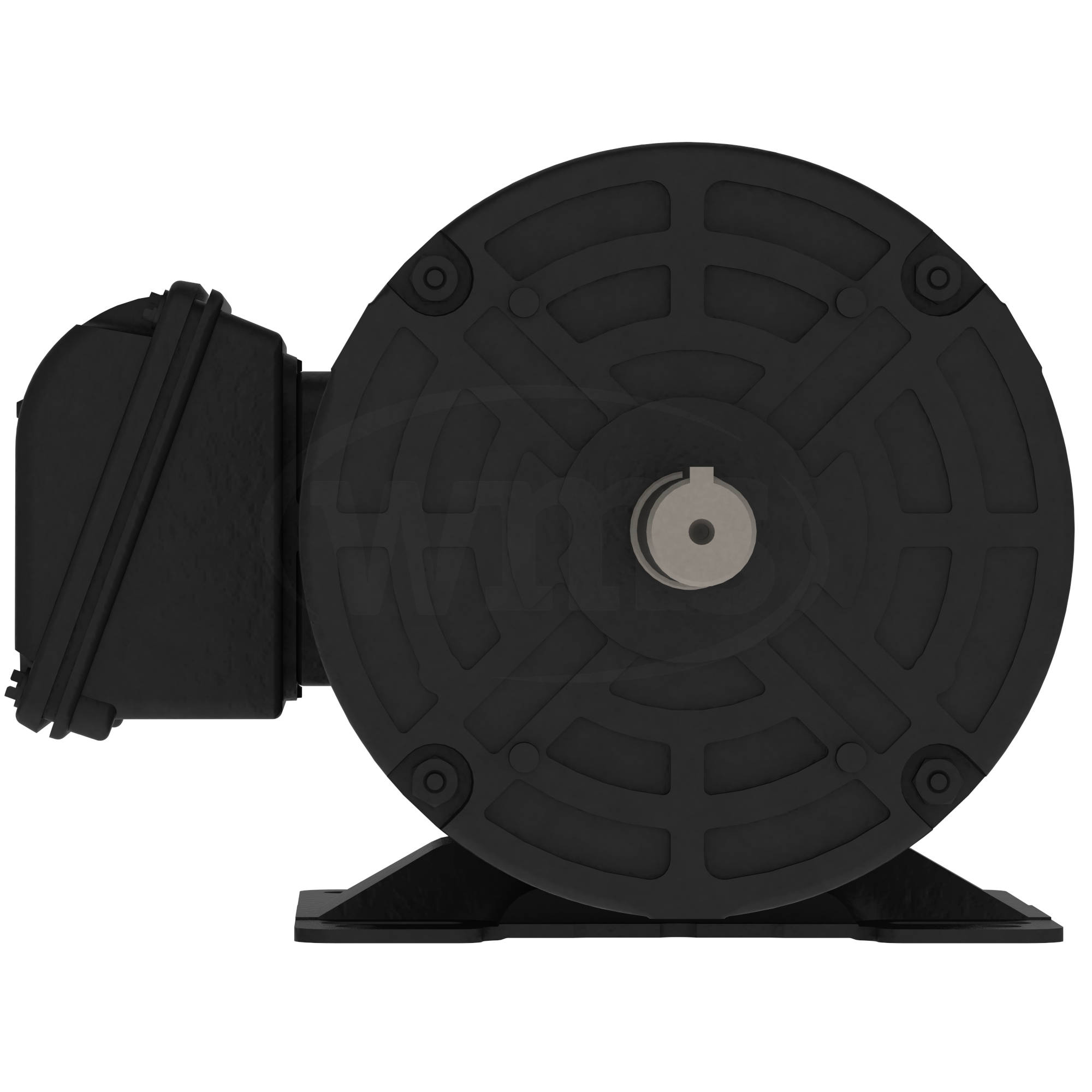

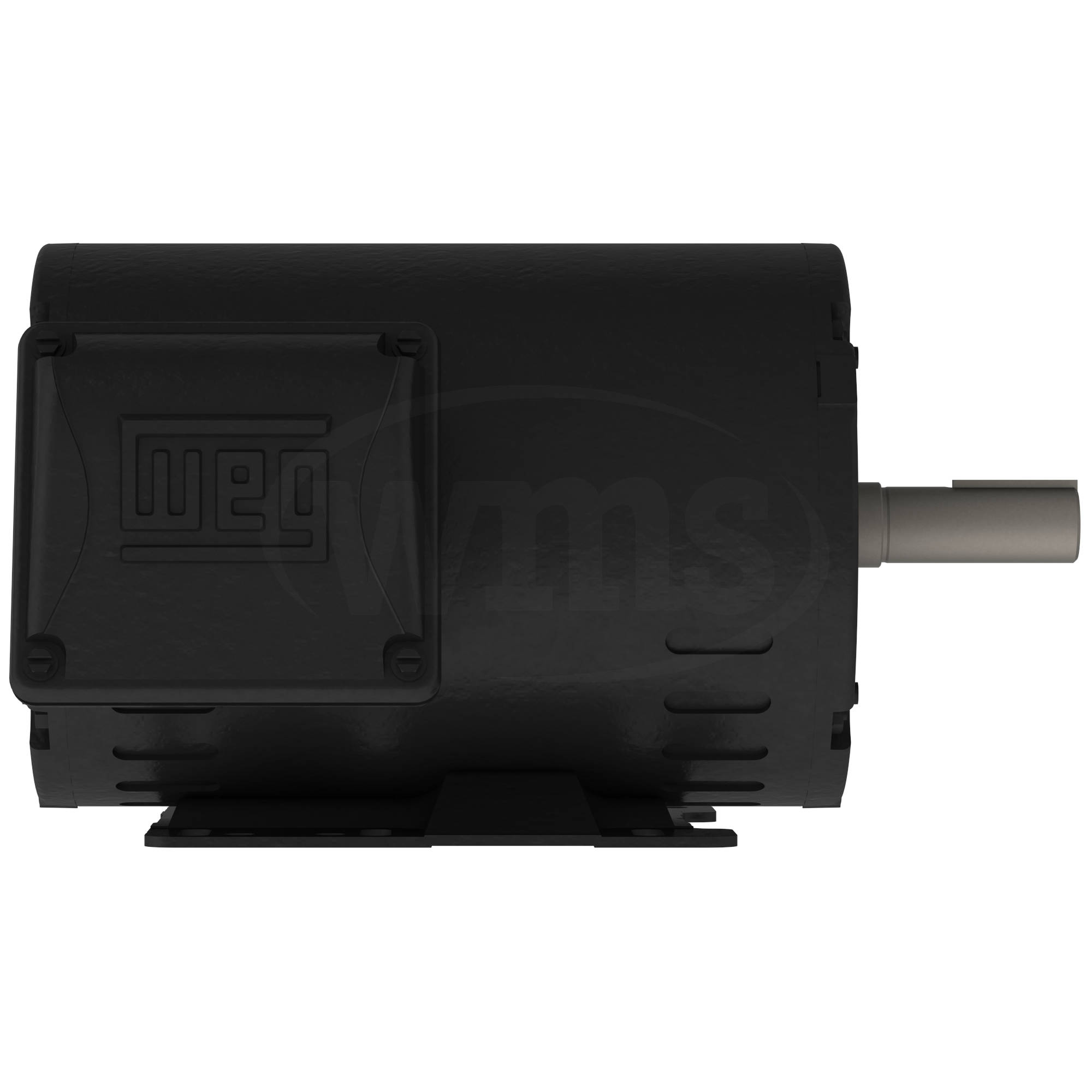

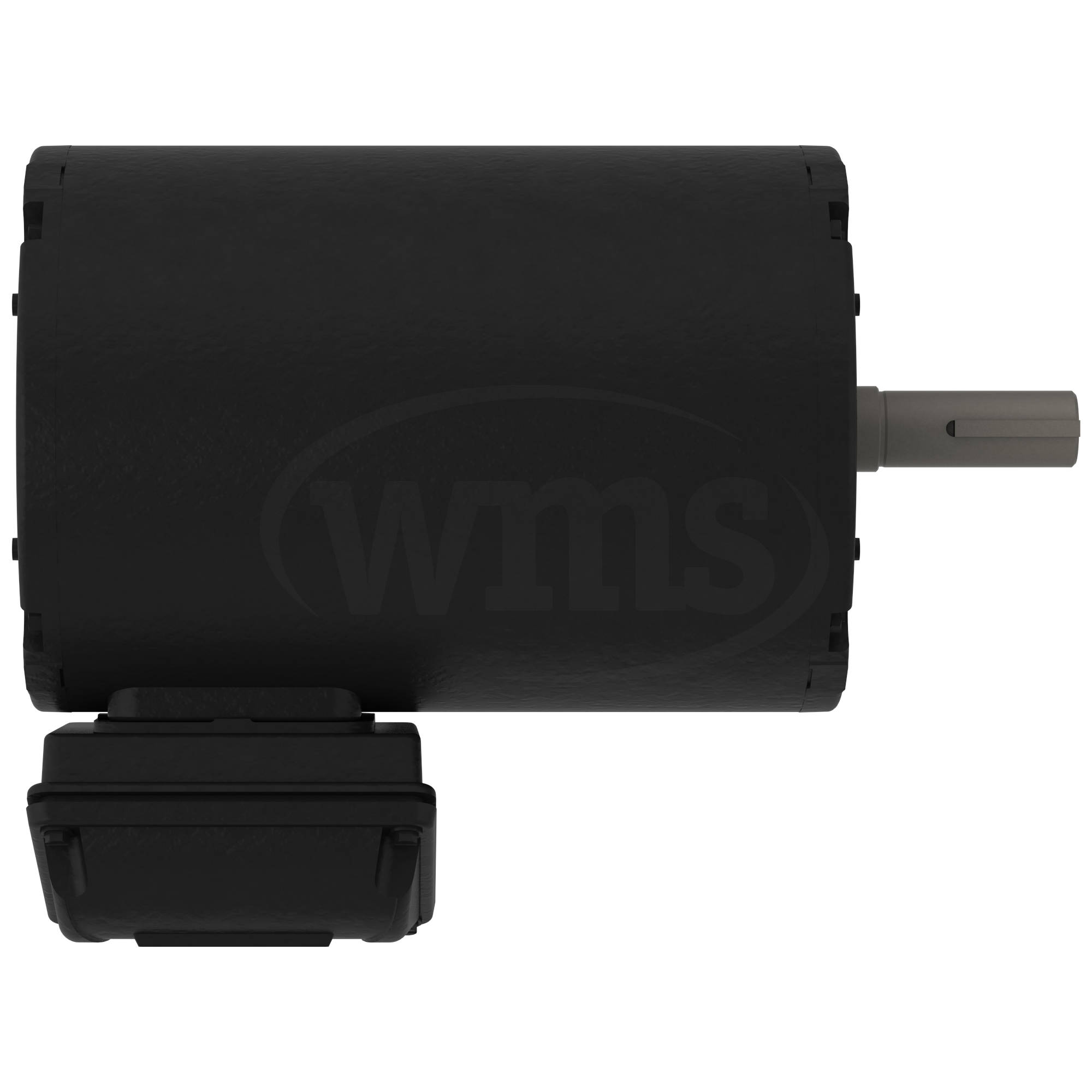

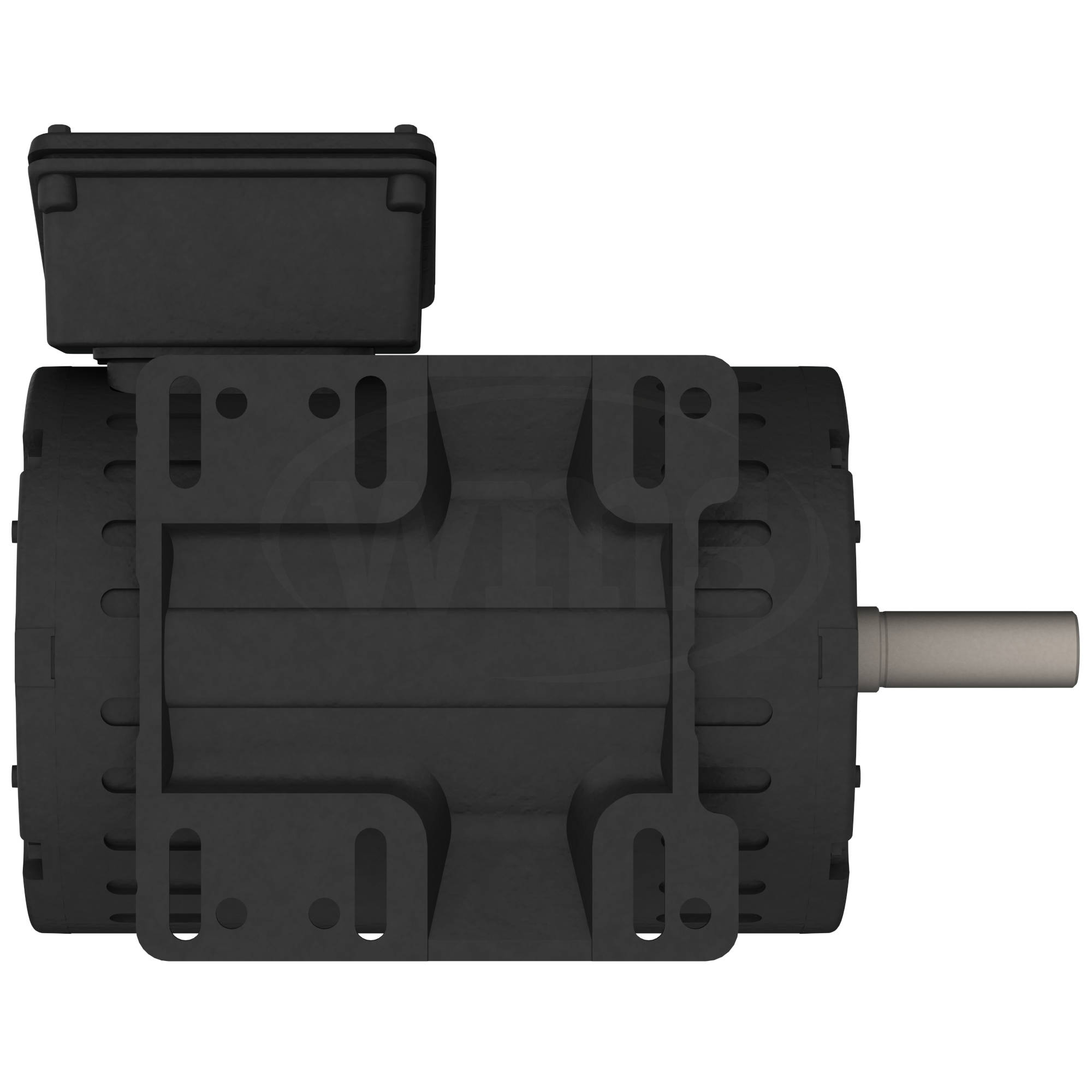

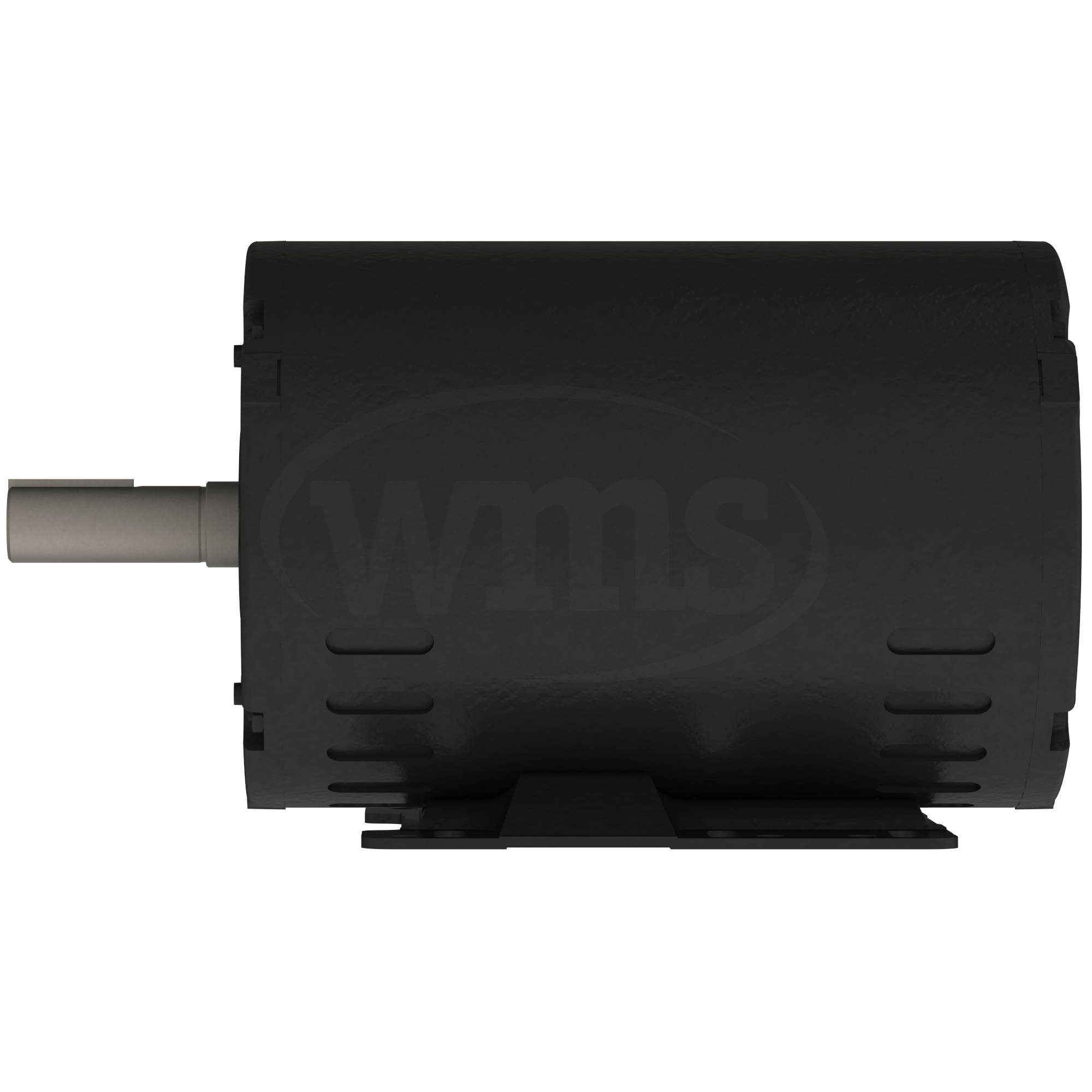

00156OT3E143T-S WEG 1.5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT3E143T-S

Selected accessories will also be added to cart

$331.50 / Each

Quantity:

12628412, 143T/145T Frame, 230/460VAC, 60Hz 3-Phase, IC01-ODP, NEMA Premium Efficiency, Foot Mounted, Rolled Steel, 7/8" Keyed Shaft

Details
Purchase Components

208-230/460 V 60 Hz 2P
190/380 V 50 Hz 2P
220/415 V 50 Hz 2P

Electric Motors

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	4.09-3.70/1.85 A
L. R. Amperes	35.2-31.8/15.9 A
LRC	8.6x(Code K)
No load current	1.40-1.62/0.809 A
Rated torque	2.21 ft.lb
Locked rotor torque	210 %
Breakdown torque	330 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	29.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	84.0	84.0

Power factor

50%	75%	100%
0.73	0.83	0.89

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	190/380 V
Rated current	4.40/2.20 A
L. R. Amperes	29.5/14.7 A
LRC	6.7x(Code H)
No load current	1.59/0.796 A
Rated torque	2.69 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	29.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.7	83.6	82.7

Power factor

50%	75%	100%
0.79	0.88	0.92

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	3.94/2.09 A
L. R. Amperes	30.8/16.3 A
LRC	7.8x(Code J)
No load current	1.84/0.977 A
Rated torque	2.67 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0835 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	29.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	83.3	83.2

Power factor

50%	75%	100%
0.71	0.83	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
