/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/00156ET3EPM143/5Y-W22 WEG 1.5HP Pad Mount Electric Motor, 3600RPM

Product ID: 00156ET3EPM143/5Y-W2

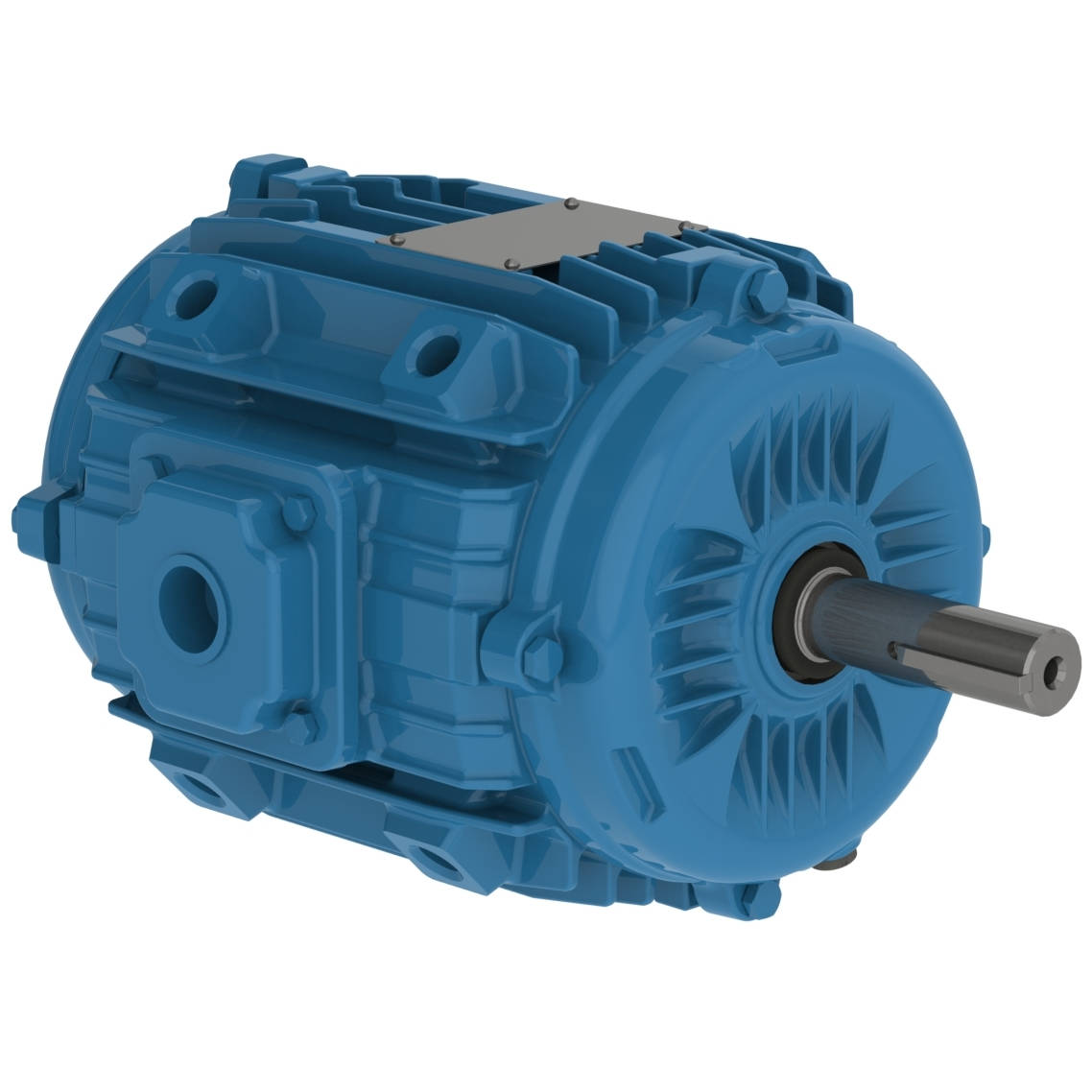

00156ET3EPM143/5Y-W22 WEG 1.5HP Pad Mount Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ET3EPM143/5Y-W22

Selected accessories will also be added to cart

$459.75 / Each

Quantity:

IC410 - TEAO, IP55, 145YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13629661, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	145YZ
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	208-230/460 V
Rated current	4.33-3.91/1.96 A
L. R. Amperes	38.5-34.8/17.4 A
LRC	8.9x(Code L)
No load current	0.000-1.50/0.750 A
Rated torque	2.26 ft.lb
Locked rotor torque	350 %
Breakdown torque	380 %

Locked rotor time	37s (cold) 21s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	84.0	84.0

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
