/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/00156ET3EAL90S-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 3600RPM

Product ID: 00156ET3EAL90S-W22

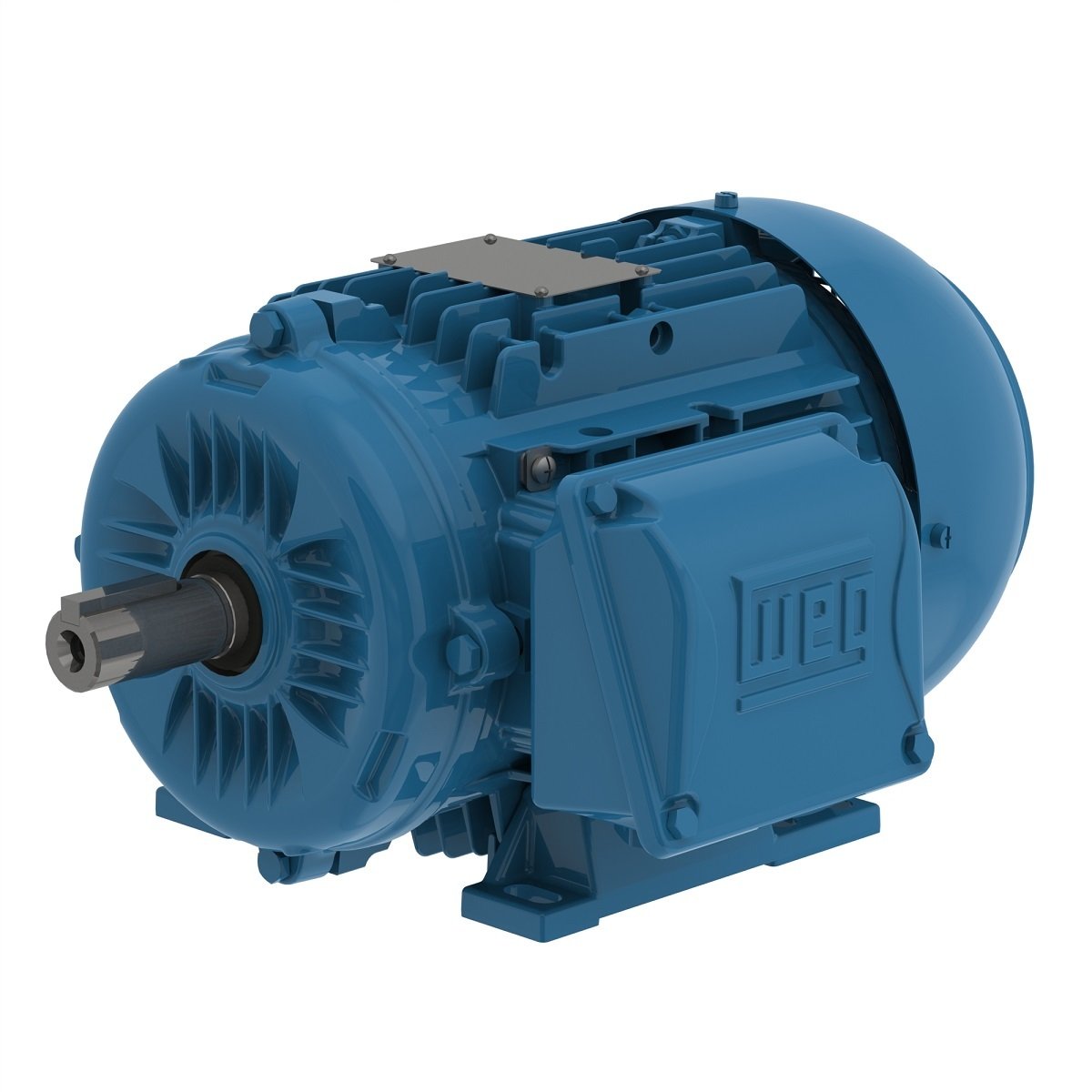

00156ET3EAL90S-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ET3EAL90S-W22

Selected accessories will also be added to cart

$378.00 / Each

Quantity:

IC411-TEFC, IP55, 90S/L Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13983072, Foot Mount, Multimounting, Aluminum Frame, 24mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	3.18 A
L. R. Amperes	24.2 A
LRC	7.6
No load current	1.30 A
Rated torque	3.62 ft.lb
Locked rotor torque	290 %
Breakdown torque	290 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0475 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	41.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.7	85.0	84.4

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	400 V
Rated current	3.07 A
L. R. Amperes	23.6 A
LRC	7.7
No load current	1.50 A
Rated torque	3.60 ft.lb
Locked rotor torque	330 %
Breakdown torque	330 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0475 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	41.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.0	85.0	85.0

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	415 V
Rated current	3.06 A
L. R. Amperes	24.5 A
LRC	8.0
No load current	1.70 A
Rated torque	3.59 ft.lb
Locked rotor torque	360 %
Breakdown torque	360 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0475 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	41.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.2	84.8	85.2

Power factor

50%	75%	100%
0.59	0.72	0.80

Frame	90S/L
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	230/460 V
Rated current	5.38/2.69 A
L. R. Amperes	50.6/25.3 A
LRC	9.4
No load current	2.76/1.38 A
Rated torque	2.97 ft.lb
Locked rotor torque	409 %
Breakdown torque	440 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0475 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	41.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	85.5

Power factor

50%	75%	100%
0.64	0.75	0.82

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
