/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/00156EP3EPM143/5Y WEG 1.5HP Pad Mount Electric Motor, 3600RPM

Product ID: 00156EP3EPM143/5Y

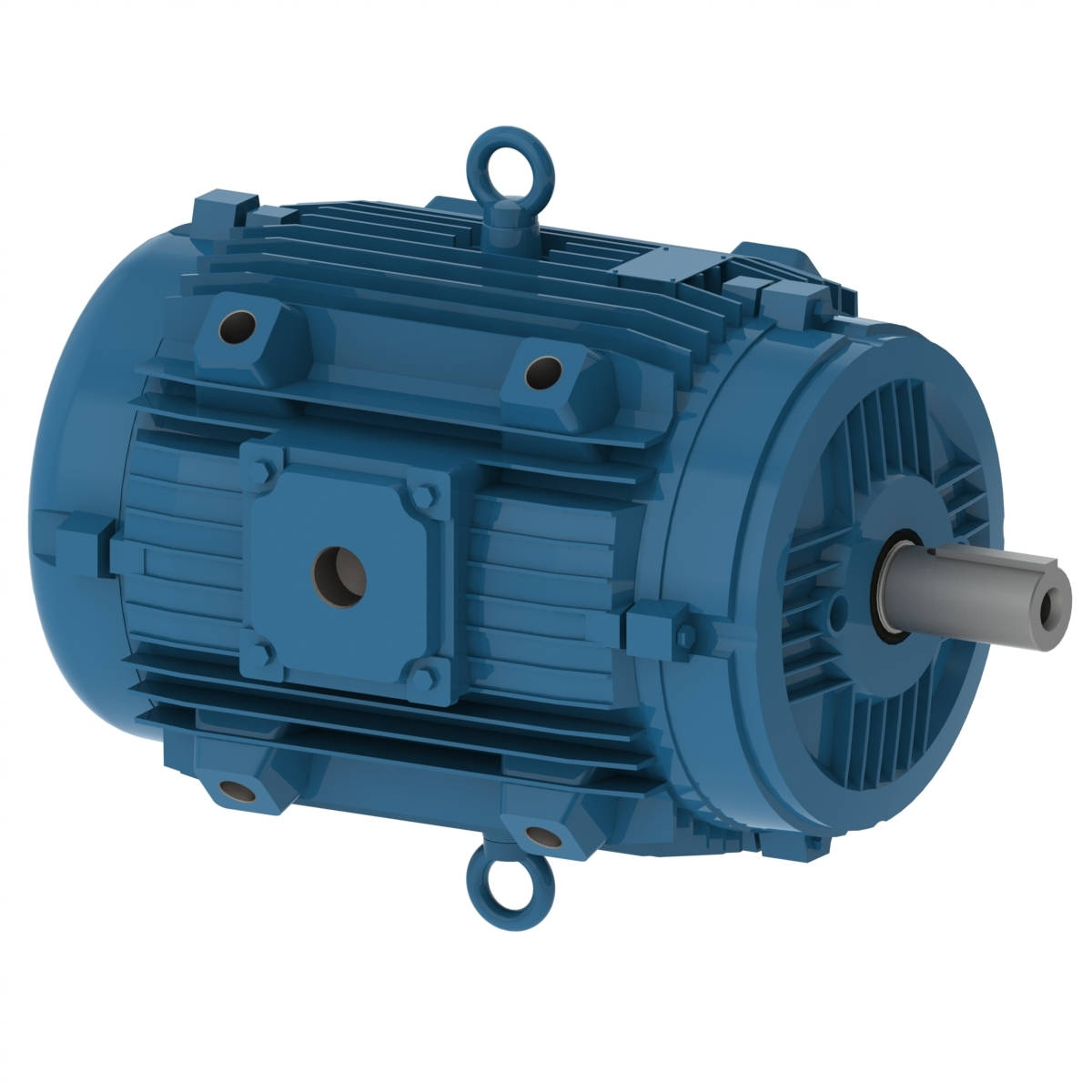

00156EP3EPM143/5Y WEG 1.5HP Pad Mount Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156EP3EPM143/5Y

Selected accessories will also be added to cart

$364.50 / Each

Quantity:

IC410 - TEAO, IP55, 145T Frame, 230/460VAC 60Hz 3 Phase, 10672529, High Efficiency, Footless, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Material (FERT)	50006910
Frame	145T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	230/460 V
Rated current	4.14/2.07 A
L. R. Amperes	35.2/17.6 A
LRC	8.5x(Code L)
No load current	2.00/1.00 A
Rated torque	2.26 ft.lb
Locked rotor torque	300 %
Breakdown torque	400 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0361 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	40°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	39.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	81.5	82.5

Power factor

50%	75%	100%
0.64	0.74	0.81

Material (FERT)	50006910
Frame	145T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	2.36 A
L. R. Amperes	17.5 A
LRC	7.4x(Code J)
No load current	1.00 A
Rated torque	2.75 ft.lb
Locked rotor torque	280 %
Breakdown torque	300 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.0361 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	40°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	39.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	81.5	81.5

Power factor

50%	75%	100%
0.71	0.82	0.87

Material (FERT)	50006910
Frame	145T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2870 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	2.32 A
L. R. Amperes	18.1 A
LRC	7.8x(Code K)
No load current	1.10 A
Rated torque	2.74 ft.lb
Locked rotor torque	320 %
Breakdown torque	330 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.0361 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	40°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	39.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	80.0	81.5

Power factor

50%	75%	100%
0.67	0.78	0.84

Material (FERT)	50006910
Frame	145T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	2.29 A
L. R. Amperes	18.5 A
LRC	8.1x(Code K)
No load current	1.20 A
Rated torque	2.74 ft.lb
Locked rotor torque	360 %
Breakdown torque	360 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.0361 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	40°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	39.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.5	80.0	81.5

Power factor

50%	75%	100%
0.64	0.75	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
