00152OT3E182JMV-S WEG 1.5HP JM Close-Coupled Pump Electric Motor, 1200RPM

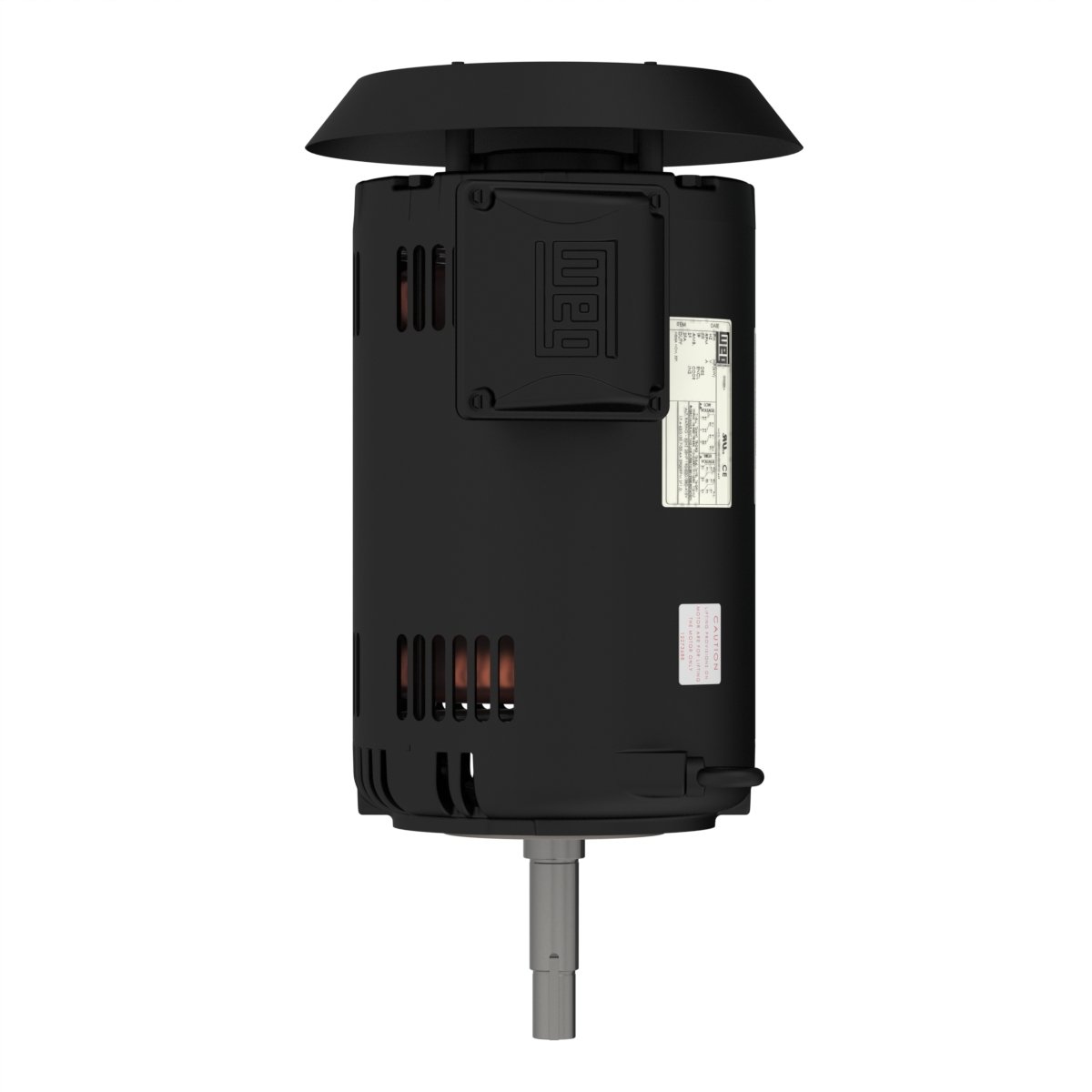

Enlarge Photo

Product ID: 00152OT3E182JMV-S

00152OT3E182JMV-S WEG 1.5HP JM Close-Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152OT3E182JMV-S

Selected accessories will also be added to cart
$620.25 / Each
Quantity:
IC01 - ODP, 182JM/184JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13482590, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 208-230/460 V
Rated current 4.98-4.50/2.25 A
L. R. Amperes 32.3-29.3/14.6 A
LRC 6.5x(Code J)
No load current 2.36-2.74/1.37 A
Rated torque 6.67 ft.lb
Locked rotor torque 200 %
Breakdown torque 310 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 0.2178 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 63.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  85.5  86.5

Power factor

50% 75% 100%
0.51  0.63  0.71
Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 190/380 V
Rated current 5.24/2.62 A
L. R. Amperes 27.2/13.6 A
LRC 5.2x(Code G)
No load current 2.69/1.35 A
Rated torque 8.18 ft.lb
Locked rotor torque 160 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2178 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 63.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.3  84.1  82.8

Power factor

50% 75% 100%
0.59  0.71  0.77
Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 220/415 V
Rated current 4.81/2.55 A
L. R. Amperes 28.9/15.3 A
LRC 6.0x(Code J)
No load current 3.00/1.59 A
Rated torque 8.10 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2178 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 63.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.2  83.5  83.5

Power factor

50% 75% 100%
0.51  0.64  0.72

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
