/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JP, TEFC/00152ET3E182JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00152ET3E182JP-S

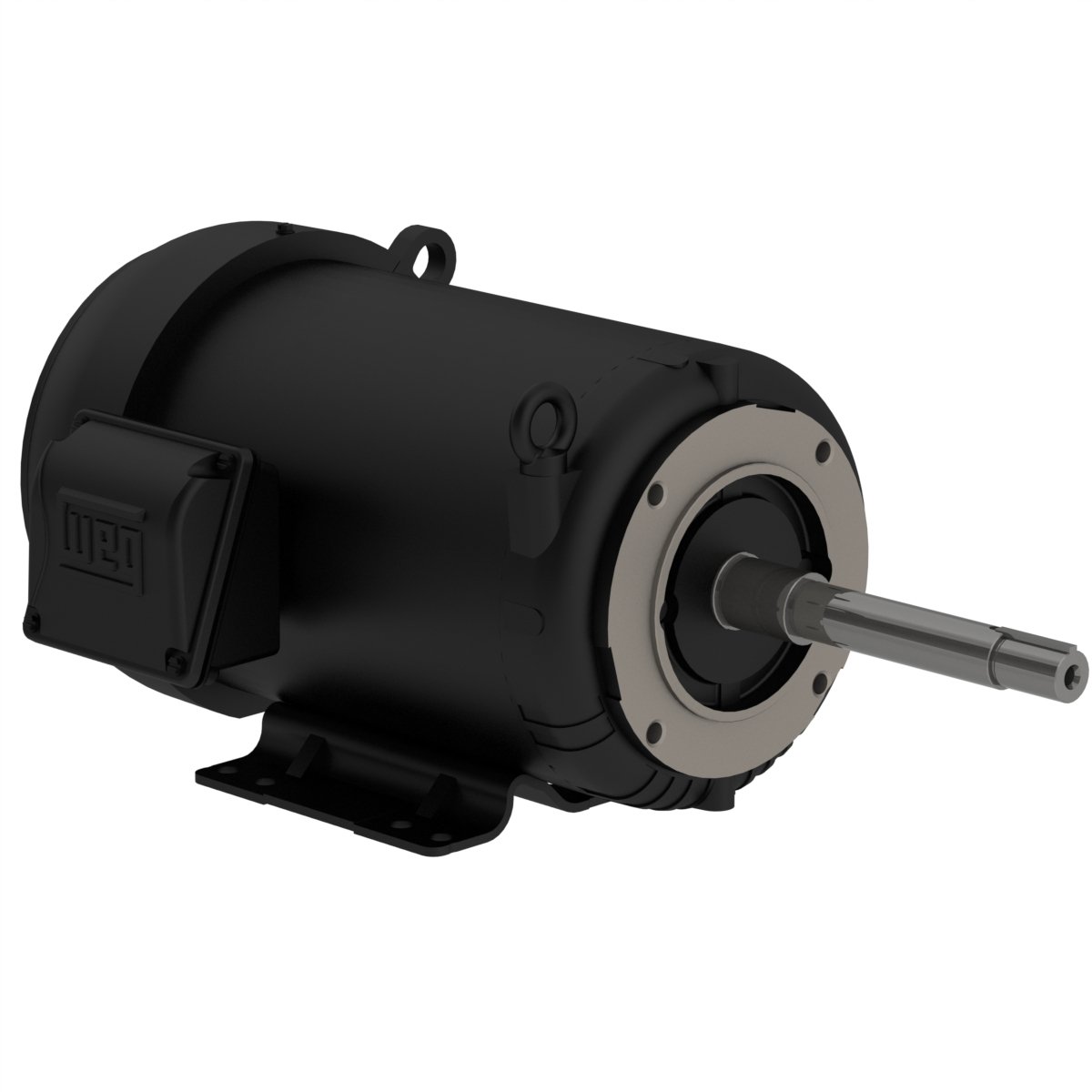

00152ET3E182JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152ET3E182JP-S

Selected accessories will also be added to cart

$693.00 / Each

Quantity:

IC411 - TEFC, IP55, 182JP/184JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 14328034, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	4.91-4.44/2.22 A
L. R. Amperes	33.9-30.6/15.3 A
LRC	6.9x(Code K)
No load current	2.35-2.73/1.36 A
Rated torque	6.64 ft.lb
Locked rotor torque	240 %
Breakdown torque	340 %
Locked rotor time	99s (cold) 55s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	65.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	87.5

Power factor

50%	75%	100%
0.50	0.63	0.71

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	955 rpm
Slip	4.50 %
Rated voltage	190/380 V
Rated current	5.18/2.59 A
L. R. Amperes	29.5/14.8 A
LRC	5.7x(Code H)
No load current	2.69/1.34 A
Rated torque	8.14 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	65.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.2	85.6	84.9

Power factor

50%	75%	100%
0.58	0.70	0.76

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	220/415 V
Rated current	4.70/2.49 A
L. R. Amperes	31.0/16.4 A
LRC	6.6x(Code J)
No load current	2.90/1.54 A
Rated torque	8.05 ft.lb
Locked rotor torque	250 %
Breakdown torque	330 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2800 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	65.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.9	85.3	85.5

Power factor

50%	75%	100%
0.51	0.63	0.72

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
