/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/C-Face, Footless/00136ET3ER143TC-W22 WEG 1HP Severe Duty Electric Motor, 3600RPM

Product ID: 00136ET3ER143TC-W22

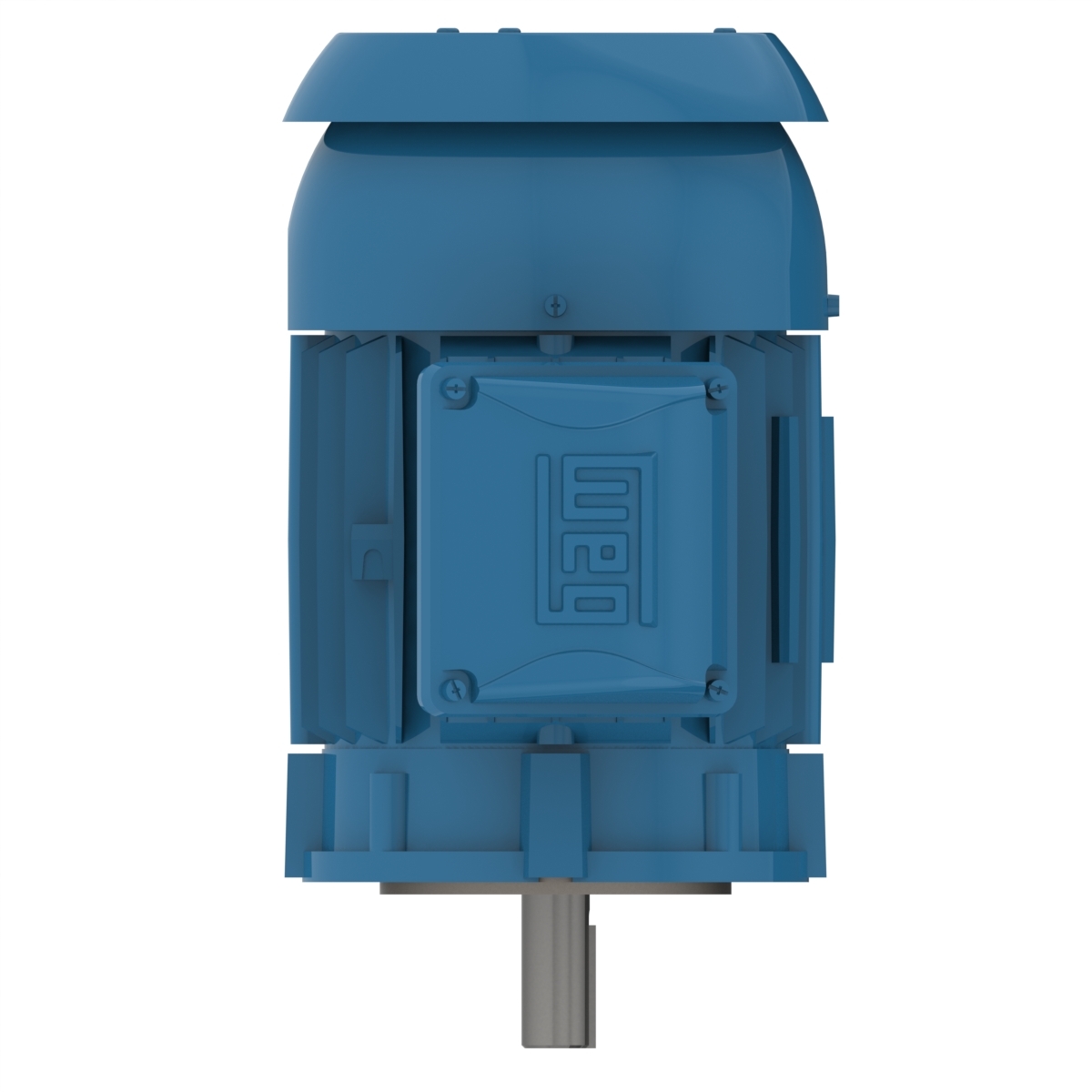

00136ET3ER143TC-W22 WEG 1HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ET3ER143TC-W22

Selected accessories will also be added to cart

$432.75 / Each

Quantity:

IC411 -TEFC, IP55, 143TC Frame, 230/460VAC 60Hz 3 Phase, 12821880, NEMA Premium Efficiency, Footless, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143TC
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	2.88/1.44 A
L. R. Amperes	23.6/11.8 A
LRC	8.2x(Code L)
No load current	1.42/0.710 A
Rated torque	1.50 ft.lb
Locked rotor torque	320 %
Breakdown torque	400 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.0	79.0	81.5

Power factor

50%	75%	100%
0.63	0.74	0.80

Frame	143TC
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	1.31 A
L. R. Amperes	11.3 A
LRC	8.6x(Code L)
No load current	0.700 A
Rated torque	1.35 ft.lb
Locked rotor torque	330 %
Breakdown torque	400 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.9	77.6	81.5

Power factor

50%	75%	100%
0.58	0.70	0.78

Frame	143TC
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	1.30 A
L. R. Amperes	11.7 A
LRC	9.0x(Code M)
No load current	0.750 A
Rated torque	1.35 ft.lb
Locked rotor torque	370 %
Breakdown torque	450 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.3	77.6	81.5

Power factor

50%	75%	100%
0.53	0.66	0.75

Frame	143TC
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2925 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	1.30 A
L. R. Amperes	12.2 A
LRC	9.4x(Code N)
No load current	0.800 A
Rated torque	1.35 ft.lb
Locked rotor torque	409 %
Breakdown torque	500 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
71.7	77.6	81.5

Power factor

50%	75%	100%
0.50	0.63	0.72

Frame	143TC
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2865 rpm
Slip	4.50 %
Rated voltage	380 V
Rated current	1.68 A
L. R. Amperes	11.3 A
LRC	6.7x(Code J)
No load current	0.700 A
Rated torque	1.83 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.5	80.0

Power factor

50%	75%	100%
0.68	0.78	0.85

Frame	143TC
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	1.65 A
L. R. Amperes	11.9 A
LRC	7.2x(Code K)
No load current	0.750 A
Rated torque	1.82 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.5	80.0

Power factor

50%	75%	100%
0.63	0.75	0.82

Frame	143TC
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	415 V
Rated current	1.63 A
L. R. Amperes	12.6 A
LRC	7.7x(Code L)
No load current	0.800 A
Rated torque	1.81 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0332 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	40.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.5	80.0

Power factor

50%	75%	100%
0.60	0.72	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
