/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Foot Mount/00118OT3H143TC-S WEG 1HP General Purpose Electric Motor, 1800RPM

Product ID: 00118OT3H143TC-S

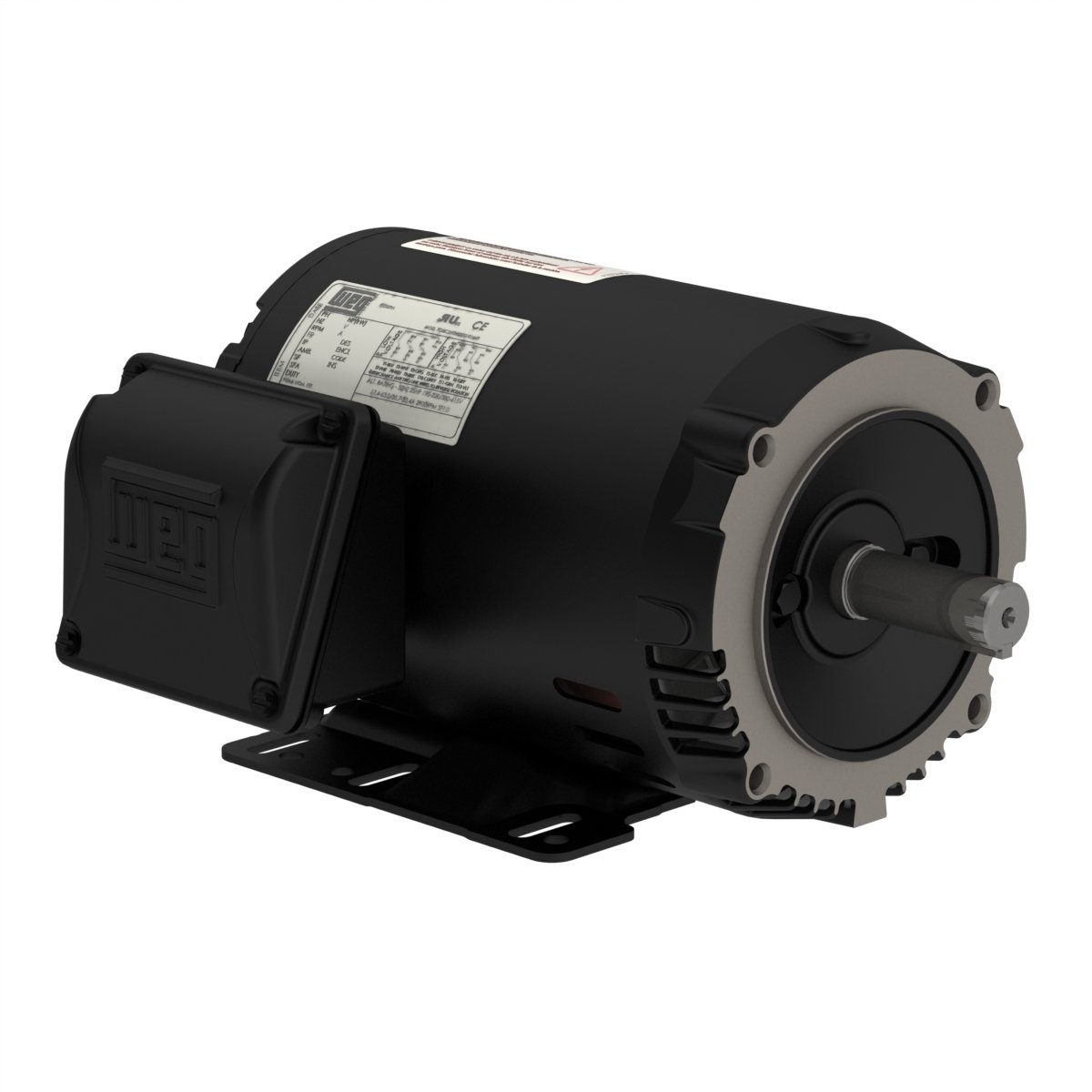

00118OT3H143TC-S WEG 1HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118OT3H143TC-S

Selected accessories will also be added to cart

$318.00 / Each

Quantity:

IC01 - ODP, 143TC/145TC Frame, 575VAC 3-Phase 60Hz, 12682568, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	575 V
Rated current	1.21 A
L. R. Amperes	9.66 A
LRC	8.0x(Code L)
No load current	0.766 A
Rated torque	2.94 ft.lb
Locked rotor torque	290 %
Breakdown torque	360 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1101 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	35.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	84.0	85.5

Power factor

50%	75%	100%
0.51	0.65	0.73

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
