/Products/Electric Motors/3 Phase Metric/WEG/00118ET3WAL90SFF-W22 WEG 1.5HP Aluminum Frame Electric Motor, 1800RPM

Product ID: 00118ET3WAL90SFF-W22

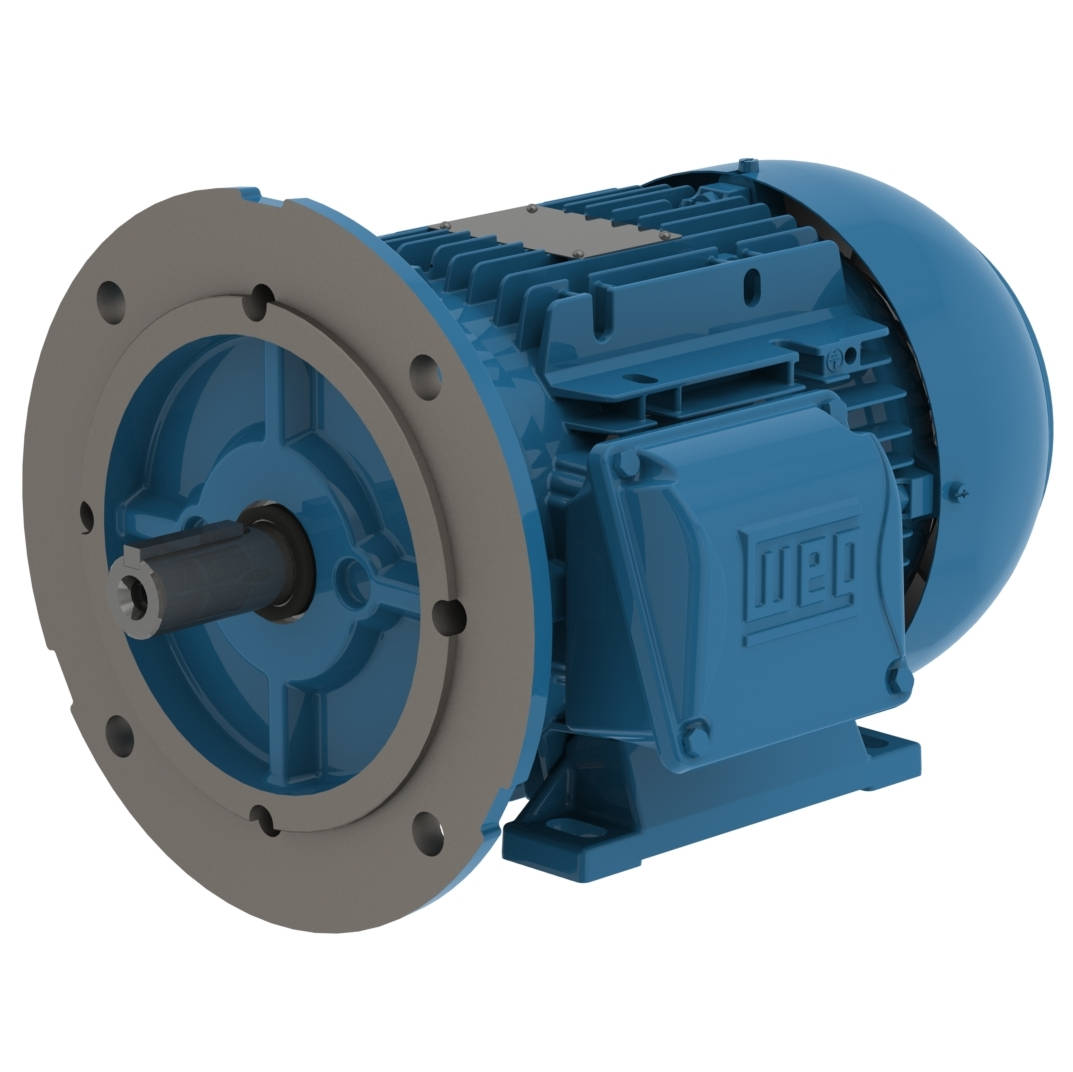

00118ET3WAL90SFF-W22 WEG 1.5HP Aluminum Frame Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3WAL90SFF-W22

Selected accessories will also be added to cart

$396.75 / Each

Quantity:

IC411 - TEFC, IP55, 90S/90L Frame, 460/220-240/380-415VAC 60Hz 3 Phase, 13984005, Multi-mounting, B35L(E) Mounting, Foot Mounted

Details
Purchase Components

Electric Motors

Frame	90S/L
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	460 V
Rated current	2.05 A
L. R. Amperes	17.4 A
LRC	8.5
No load current	1.22 A
Rated torque	4.49 ft.lb
Locked rotor torque	290 %
Breakdown torque	350 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1305 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	43.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	84.0	86.5

Power factor

50%	75%	100%
0.57	0.70	0.78

Frame	90S/L
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	220/380 V
Rated current	4.13/2.39 A
L. R. Amperes	31.4/18.2 A
LRC	7.6
No load current	2.07/1.20 A
Rated torque	5.45 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1305 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	43.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.7	84.3

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	90S/L
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	2.35 A
L. R. Amperes	17.9 A
LRC	7.6
No load current	1.30 A
Rated torque	5.43 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1305 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	43.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.0	84.5	84.5

Power factor

50%	75%	100%
0.59	0.72	0.80

Frame	90S/L
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	240/415 V
Rated current	4.05/2.34 A
L. R. Amperes	30.8/17.8 A
LRC	7.6
No load current	2.42/1.40 A
Rated torque	5.41 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1305 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	43.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	84.1	84.8

Power factor

50%	75%	100%
0.55	0.69	0.77

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Connection Cables Quantity	6
