/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/00118ET3EPM143/5Y-W22 WEG 1HP Pad Mount Electric Motor, 1800RPM

Product ID: 00118ET3EPM143/5Y-W2

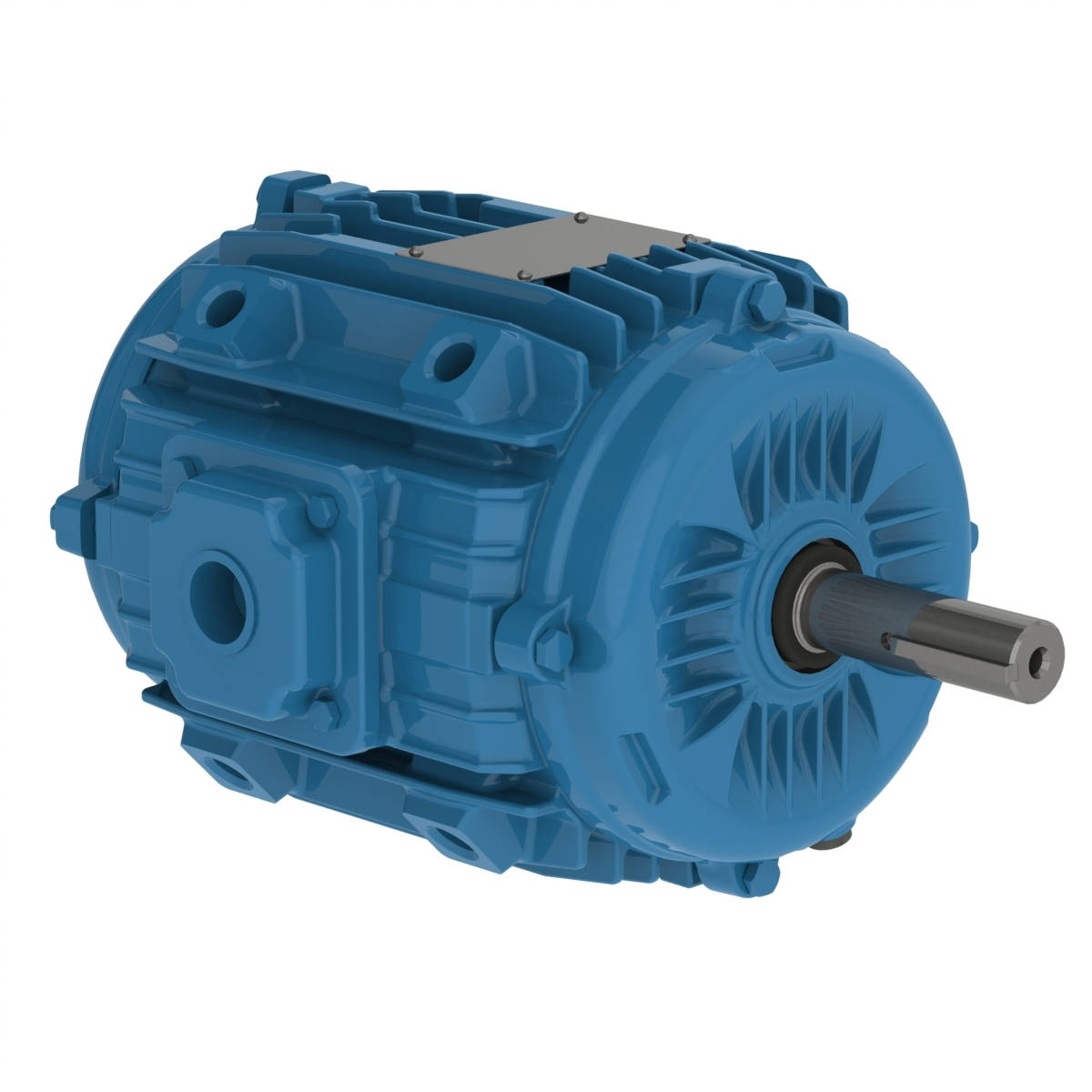

00118ET3EPM143/5Y-W22 WEG 1HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3EPM143/5Y-W22

Selected accessories will also be added to cart

$445.50 / Each

Quantity:

IC410 - TEAO, IP55, 145YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13629659, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	145YZ
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	3.25-2.94/1.47 A
L. R. Amperes	27.3-24.7/12.3 A
LRC	8.4x(Code L)
No load current	0.000-1.88/0.940 A
Rated torque	2.98 ft.lb
Locked rotor torque	320 %
Breakdown torque	350 %
Locked rotor time	32s (cold) 18s (hot)

Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	84.0	85.5

Power factor

50%	75%	100%
0.55	0.68	0.75

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
