/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Brake Motor/00118ET3EBM56CFL-S WEG 1HP Electric Brake Motor, 1800RPM
Click Image to Expand

Product ID: 00118ET3EBM56CFL-S

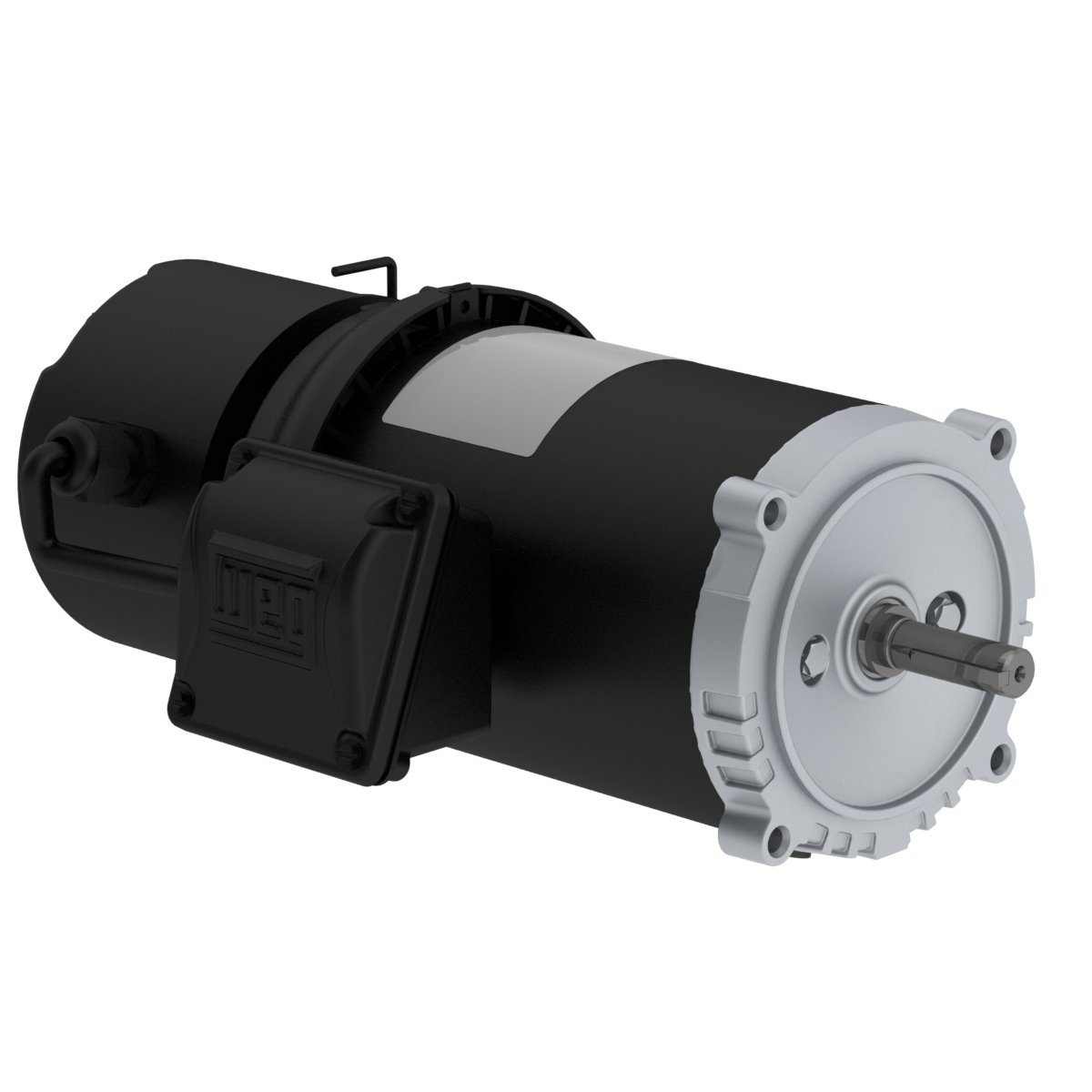

00118ET3EBM56CFL-S WEG 1HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3EBM56CFL-S

Selected accessories will also be added to cart
$1,156.50 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 208-230/460VAC 3-Phase 50/60Hz, 14593685, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Features

  • 1.15 Service Factor
  • Manual Release Lever
  • AC Brake
  • Inverter Rated
  • IP55 Enclosure
  • Dual Frequency (50/60Hz)

Applications

  • Conveyors
  • Door Operators
  • Packaging Equipment
  • Unit Handling

Technical Data

Electric Motors

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 3.25-2.94/1.47 A
L. R. Amperes 28.0-25.3/12.6 A
LRC 8.6x(Code M)
No load current 1.53-1.78/0.890 A
Rated torque 2.94 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 47.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  85.5

Power factor

50% 75% 100%
0.52  0.66  0.75
Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 190/380 V
Rated current 3.40/1.70 A
L. R. Amperes 22.1/11.0 A
LRC 6.5x(Code J)
No load current 1.76/0.879 A
Rated torque 3.57 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 47.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.2  83.7  82.9

Power factor

50% 75% 100%
0.62  0.74  0.81
Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 220/415 V
Rated current 3.06/1.62 A
L. R. Amperes 22.9/12.2 A
LRC 7.5x(Code K)
No load current 1.86/0.988 A
Rated torque 3.55 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 47.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.9  83.5  83.7

Power factor

50% 75% 100%
0.55  0.68  0.77

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Aluminum
Tropicalized Painting Without
Fan material Plastic
Brake input Voltage 208-230/460//190/380 V
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
