/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Foot Mount/00118ES1E143T-S WEG 1HP General Purpose Electric Motor, 1800RPM

Product ID: 00118ES1E143T-S

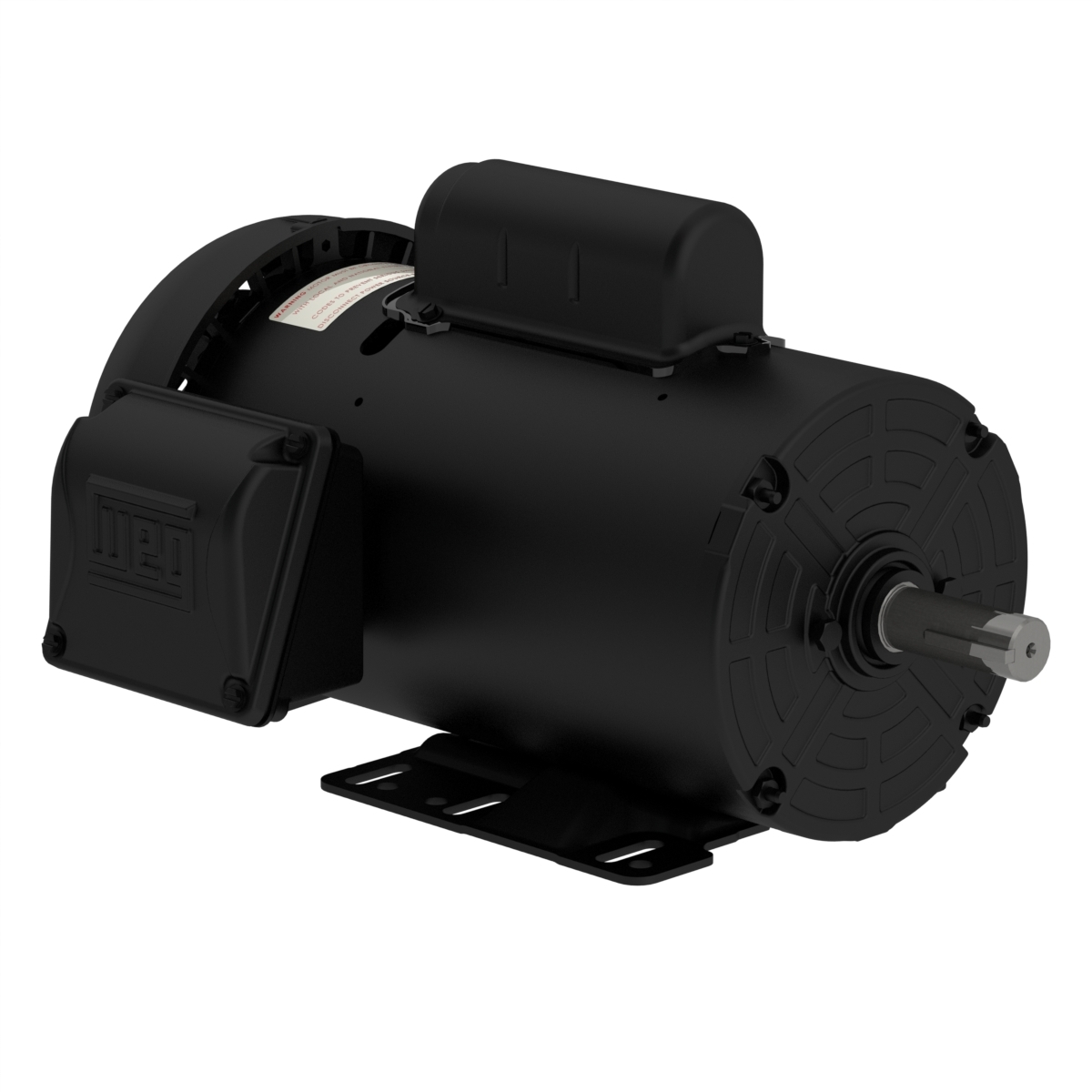

00118ES1E143T-S WEG 1HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1E143T-S

Selected accessories will also be added to cart

$398.25 / Each

Quantity:

IC411 - TEFC, IP55, 143/145T Frame, 208-230/460V, 60Hz, Single Phase

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	208-230/460 V
Rated current	7.52-6.80/3.40 A
L. R. Amperes	50.4-45.6/22.8 A
LRC	6.7x(Code M)
No load current	4.14-4.80/2.40 A
Rated torque	3.01 ft.lb
Locked rotor torque	280 %
Breakdown torque	270 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.1037 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	34.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
62.0	68.0	71.0

Power factor

50%	75%	100%
0.48	0.60	0.68

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
