/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/Foot Mount/00112OT3H145T-S WEG 1HP General Purpose Electric Motor, 1200RPM

Product ID: 00112OT3H145T-S

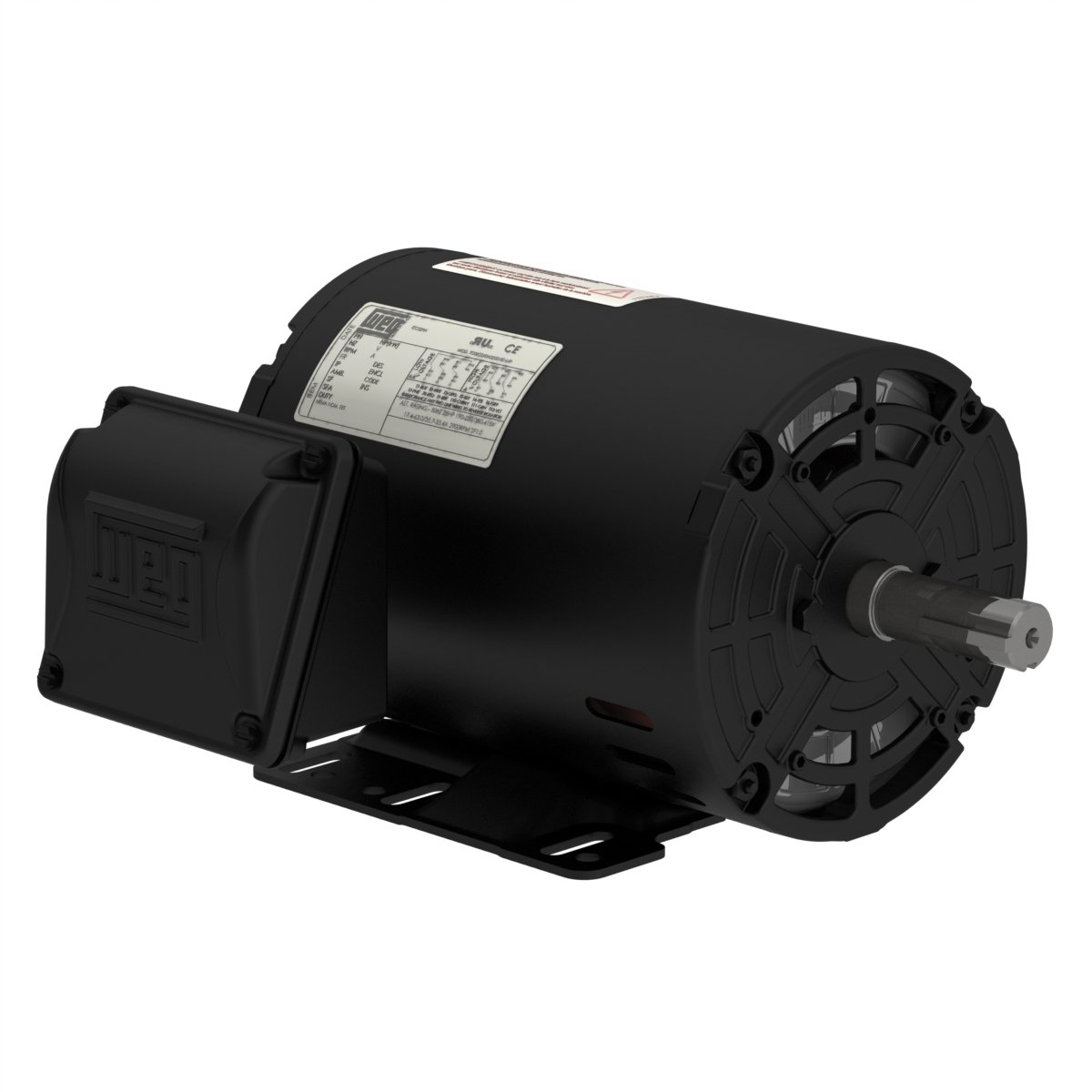

00112OT3H145T-S WEG 1HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112OT3H145T-S

Selected accessories will also be added to cart

$334.50 / Each

Quantity:

IC01 - ODP, 143/145T Frame, 575VAC 3 Phase 60Hz, 12795528, Foot-mount, Rolled Steel, NEMA Premium Efficiency, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1150 rpm
Slip	4.17 %
Rated voltage	575 V
Rated current	1.32 A
L. R. Amperes	8.05 A
LRC	6.1x(Code K)
No load current	0.902 A
Rated torque	4.51 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	0.1419 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	34.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	81.5	82.5

Power factor

50%	75%	100%
0.47	0.60	0.69

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
