/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Footless/00112ET3VR145TC-S WEG 1HP General Purpose Electric Motor, 1200RPM

Product ID: 00112ET3VR145TC-S

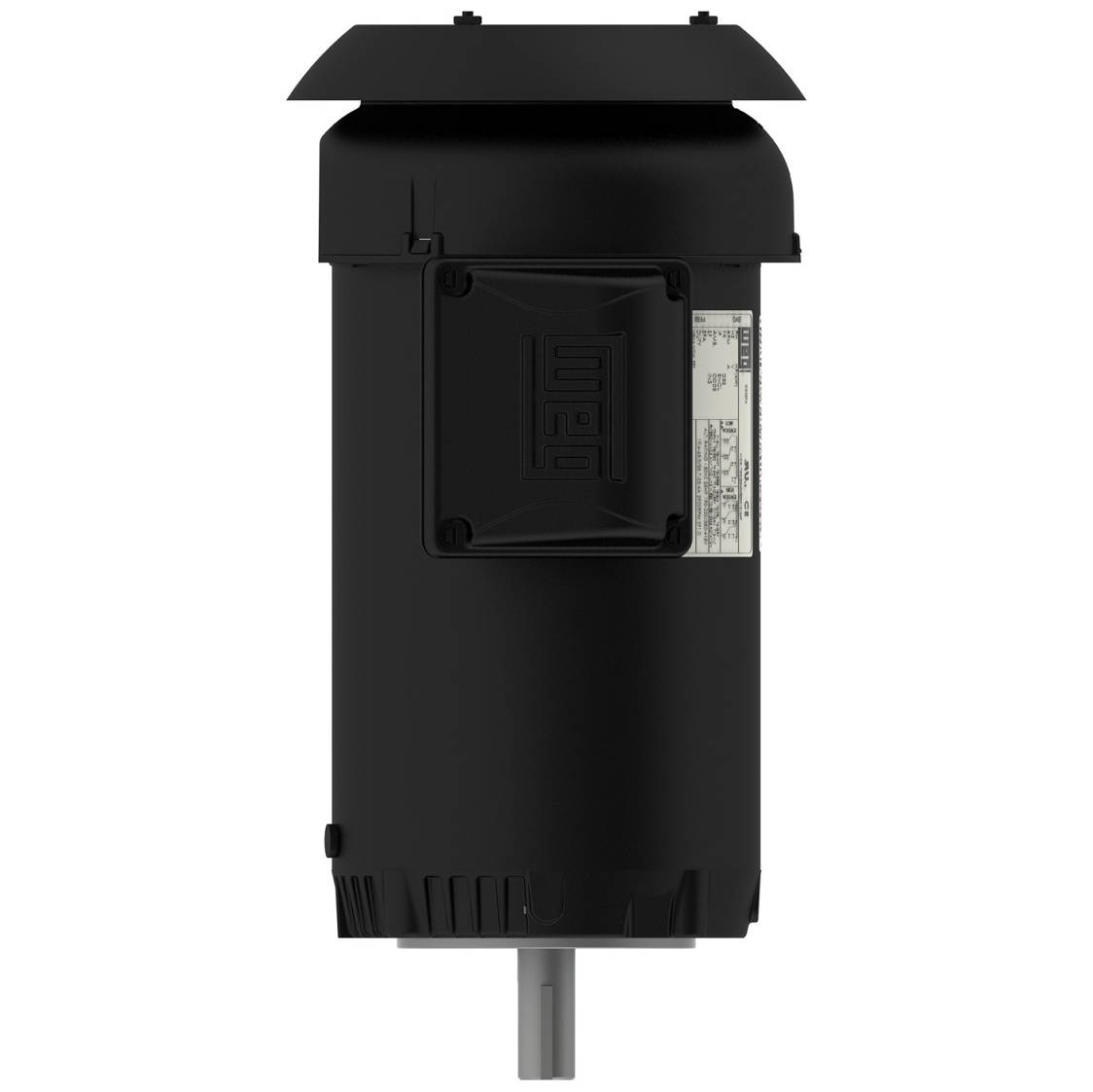

00112ET3VR145TC-S WEG 1HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3VR145TC-S

Selected accessories will also be added to cart

$415.50 / Each

Quantity:

IC411 - TEFC, IP55, 143TC/145TC Frame, 200/400VAC 60Hz 3 Phase, 14795715, NEMA Premium Efficiency, Rolled Steel Frame, Footless, C-Face

Details
Purchase Components

Electric Motors

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1145 rpm
Slip	4.58 %
Rated voltage	200/400 V
Rated current	3.63/1.82 A
L. R. Amperes	21.1/10.5 A
LRC	5.8x(Code J)
No load current	2.33/1.16 A
Rated torque	4.59 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	55s (cold) 31s (hot)

Moment of inertia (J)	0.1597 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	38.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	82.5

Power factor

50%	75%	100%
0.50	0.63	0.72

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
