/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Brake/00112ET3EBM145T-W22 WEG 1HP Electric Brake Motor, 1200RPM

Product ID: 00112ET3EBM145T-W22

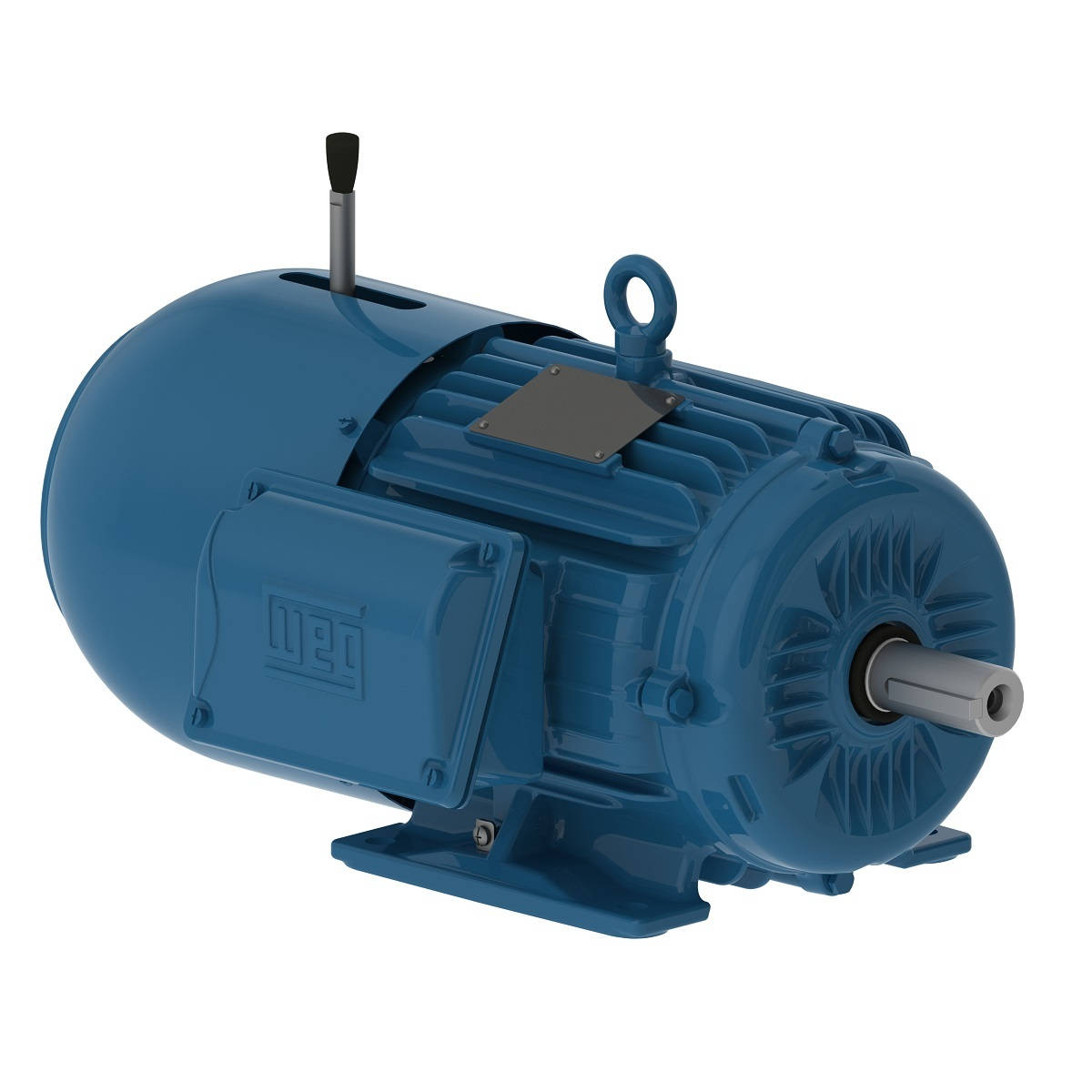

00112ET3EBM145T-W22 WEG 1HP Electric Brake Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3EBM145T-W22

Selected accessories will also be added to cart

$1,190.25 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 230/460VAC 60Hz 3 Phase, 13473874, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1160 rpm
Slip	3.33 %
Rated voltage	230/460 V
Rated current	3.46/1.73 A
L. R. Amperes	21.5/10.7 A
LRC	6.2x(Code K)
No load current	2.39/1.20 A
Rated torque	4.53 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	64.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	82.0	82.5

Power factor

50%	75%	100%
0.45	0.57	0.66

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Brake Type	WEG - 16.0 Nm
Brake input Voltage	220-240 V
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
