/Products/Electric Motors/Single Phase/Marathon/Farm Duty/Z118 Marathon 1.5HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: Z118

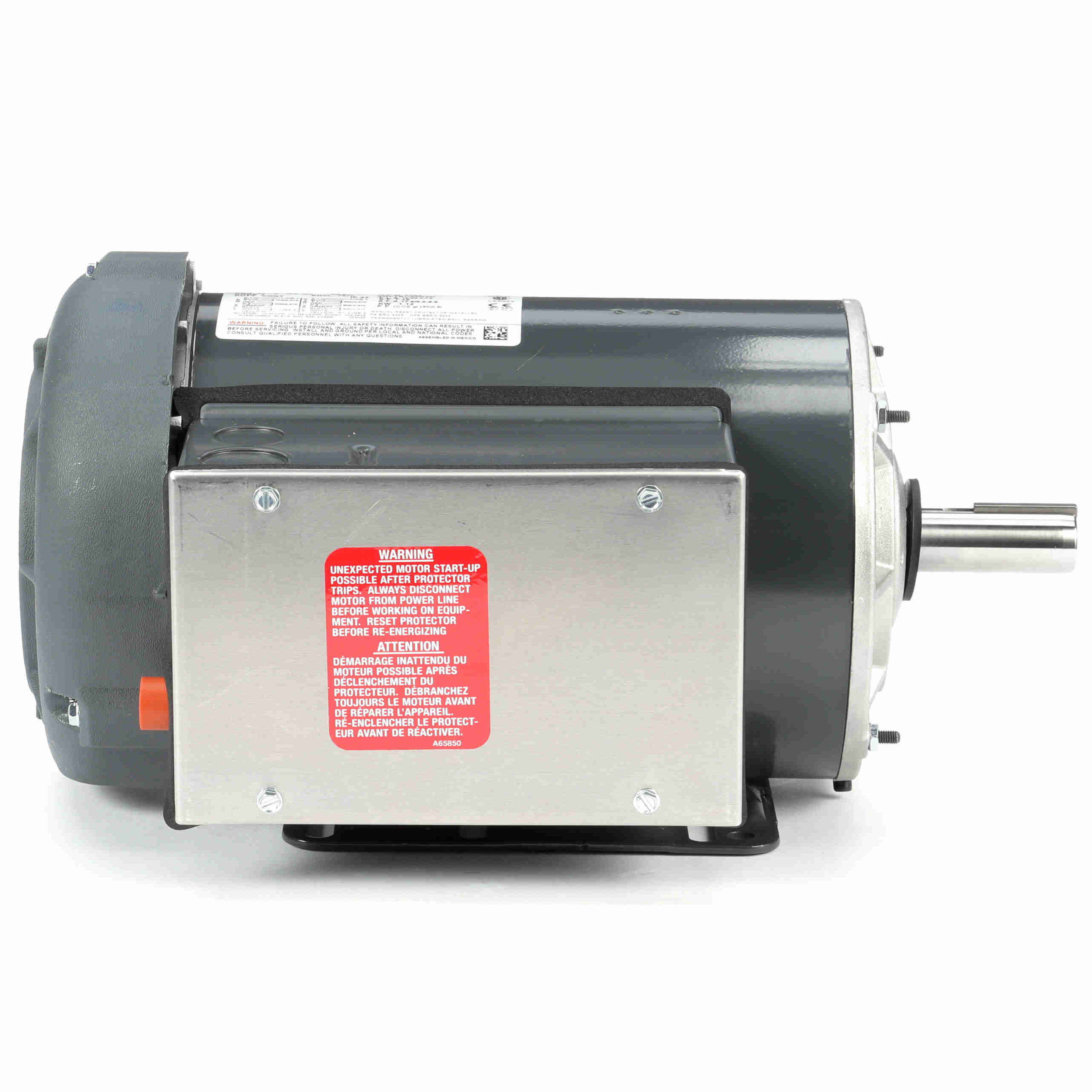

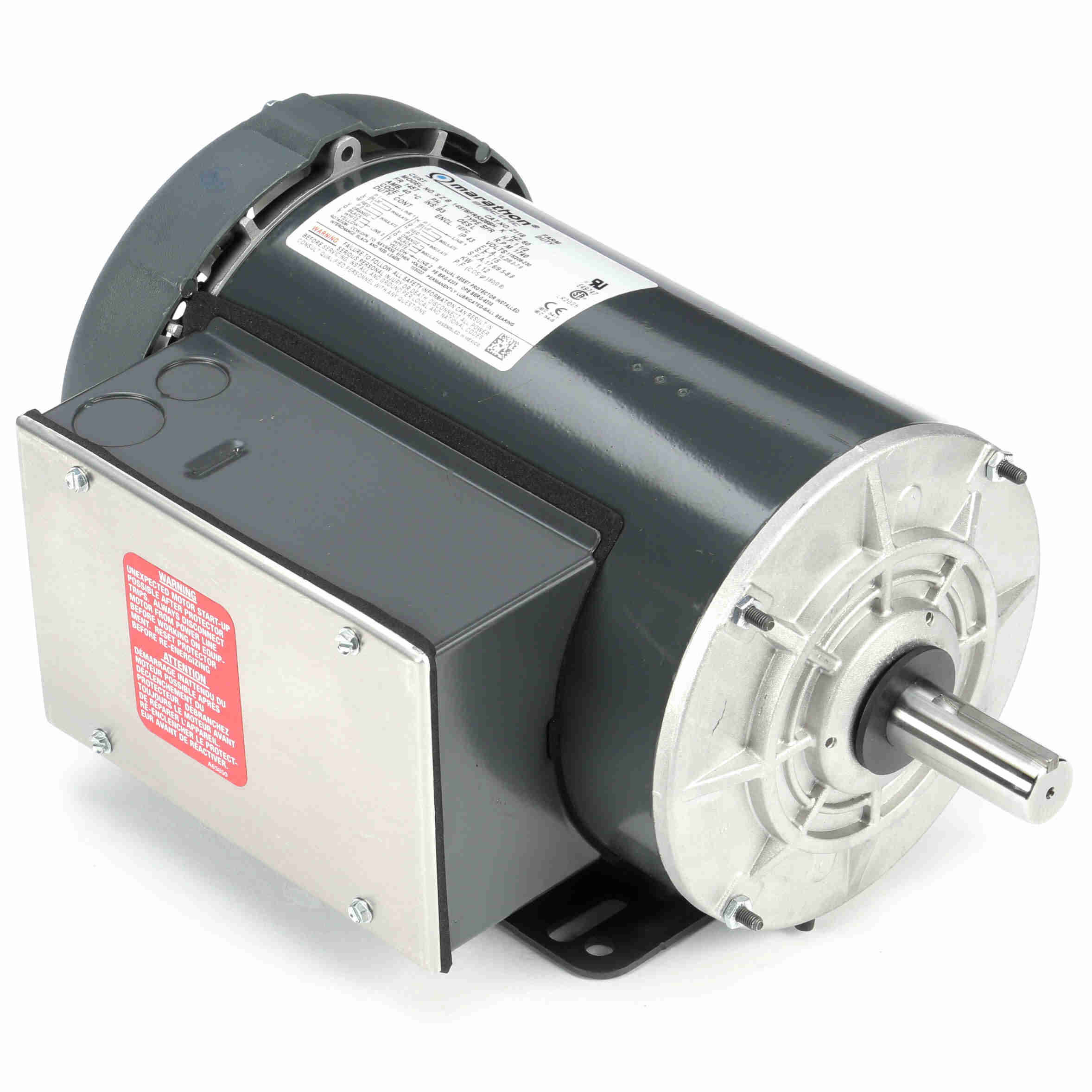

Z118 Marathon 1.5HP Farm Duty Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: Z118

Selected accessories will also be added to cart
$869.97 / Each
Quantity:
TEFC, 145T Frame, 115/208-230V Single Phase 60Hz, 145TBFR5328, High Torque

Features

Features
  • Shaft end mechanically locked on C-face models
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency
  • Low temperature manual reset thermal protector
  • Totally enclosed and fully gasketed construction for dirty environments
  • Condensate drains
  • Shaft slinger

General Specifications

General Specifications
Model :145TBFR5328 Catalog No :Z118
Part Description :1-1/2,1800,TEFC,145T,1/60/115/208-230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :15.2/8.2-7.6 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :80 % Duty :Continous
Insulation Class :B Design Code :L
KVA Code :J Frame :145T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized ( Not Protector)
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :13.87 in Frame Length :8.56 in
Shaft Diameter :0.875 in Shaft Extension :2.28 in
Assembly/Box Mounting :F1 Only UPC :722856027825
Weight :41.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down28.40374.012.40275.01,5005.400.01.50
Locked-Rotor53.80708.014.80328.0010.900.01.50
Pull-Up53.70707.012.60279.016410.900.01.50
Full Load7.60100.04.51100.01,7401.4080.31.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.05
  • 0.240
  • 0.0
  • 17.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 4.40
  • 0.440
  • 64.0
  • 43.5
  • 1,785
  • 0.0
  • 1.11
  • 50 %
  • 5.20
  • 0.730
  • 76.1
  • 61.0
  • 1,770
  • 0.0
  • 2.21
  • 75 %
  • 6.35
  • 1.040
  • 80.5
  • 71.2
  • 1,755
  • 0.0
  • 3.36
  • 100 %
  • 7.60
  • 1.395
  • 80.0
  • 80.0
  • 1,740
  • 70.0
  • 4.51
  • 115 %
  • 8.80
  • 1.610
  • 79.8
  • 79.5
  • 1,729
  • 90.0
  • 5.23
  • 125 %
  • 9.30
  • 1.760
  • 79.1
  • 82.3
  • 1,720
  • 0.0
  • 5.70
  • 150 %
  • 11.20
  • 2.180
  • 76.0
  • 84.6
  • 1,698
  • 0.0
  • 6.87
  • 175 %
  • 13.60
  • 2.670
  • 72.5
  • 85.4
  • 1,665
  • 0.0
  • 8.18
  • 200 %
  • 16.90
  • 3.330
  • 65.7
  • 85.7
  • 1,618
  • 0.0
  • 9.52
