/RD1RSTF564BC.33 Techtop 1/3HP Electric Motor

Click Image to Expand

Previous Next

Product ID: RD1RSTF564BC.33

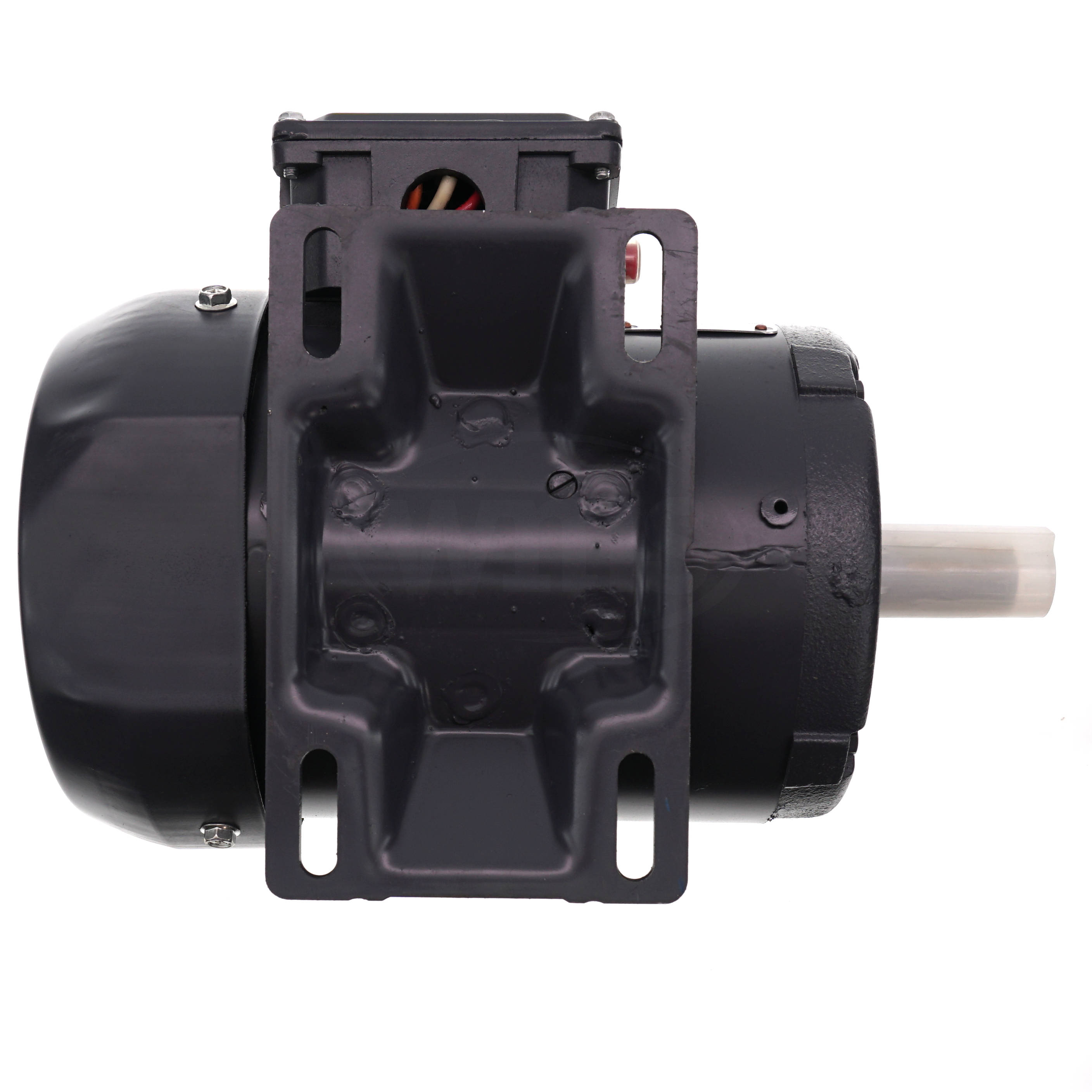

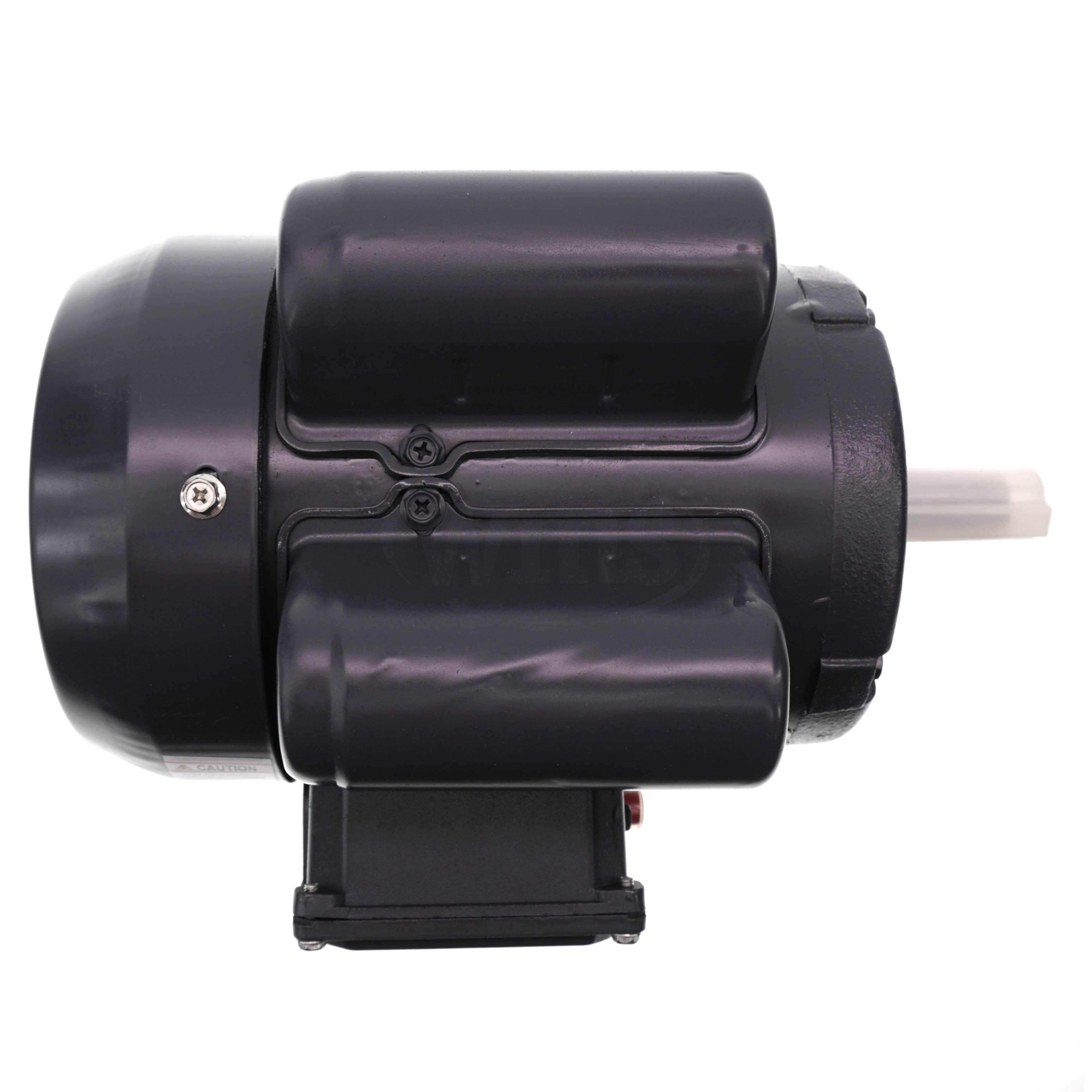

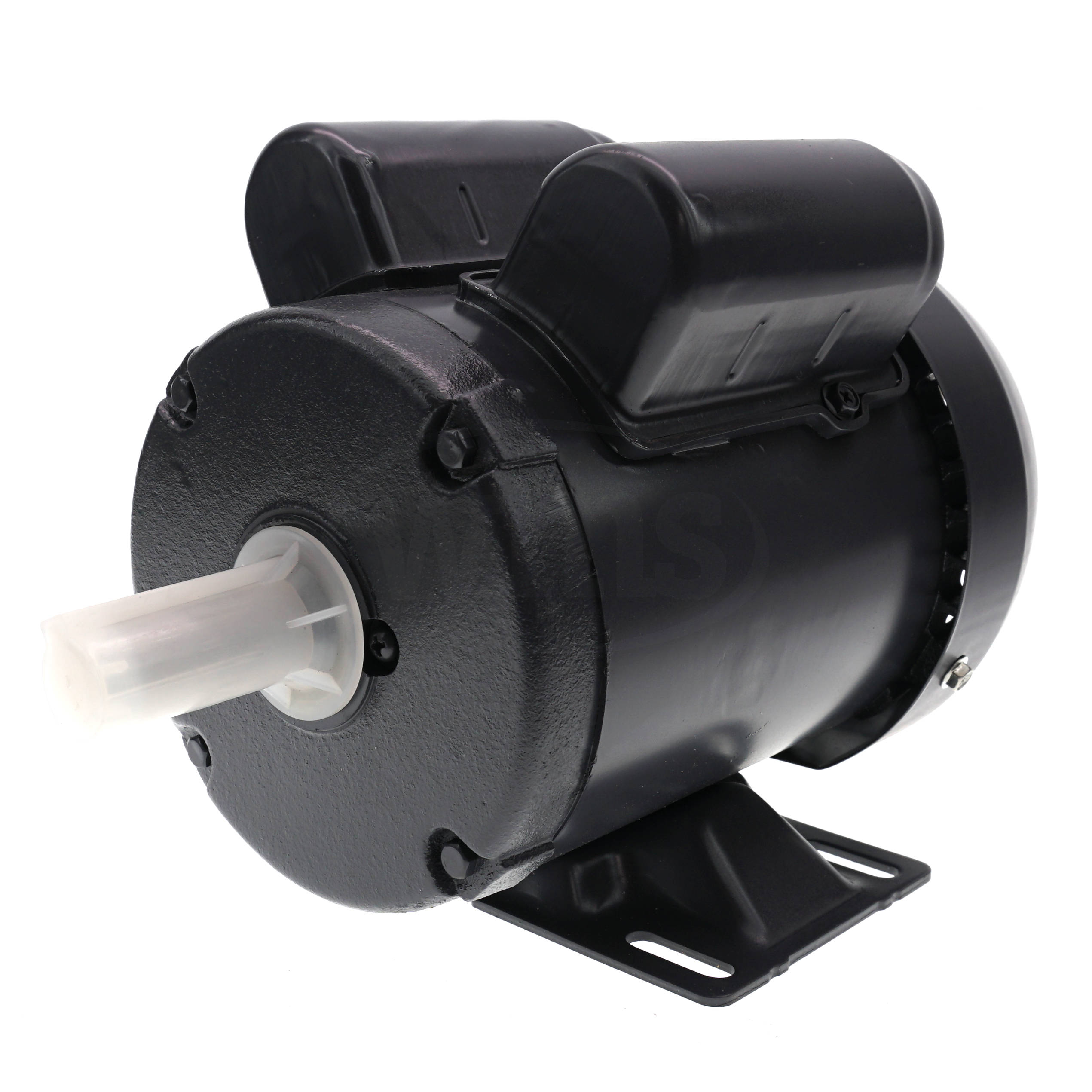

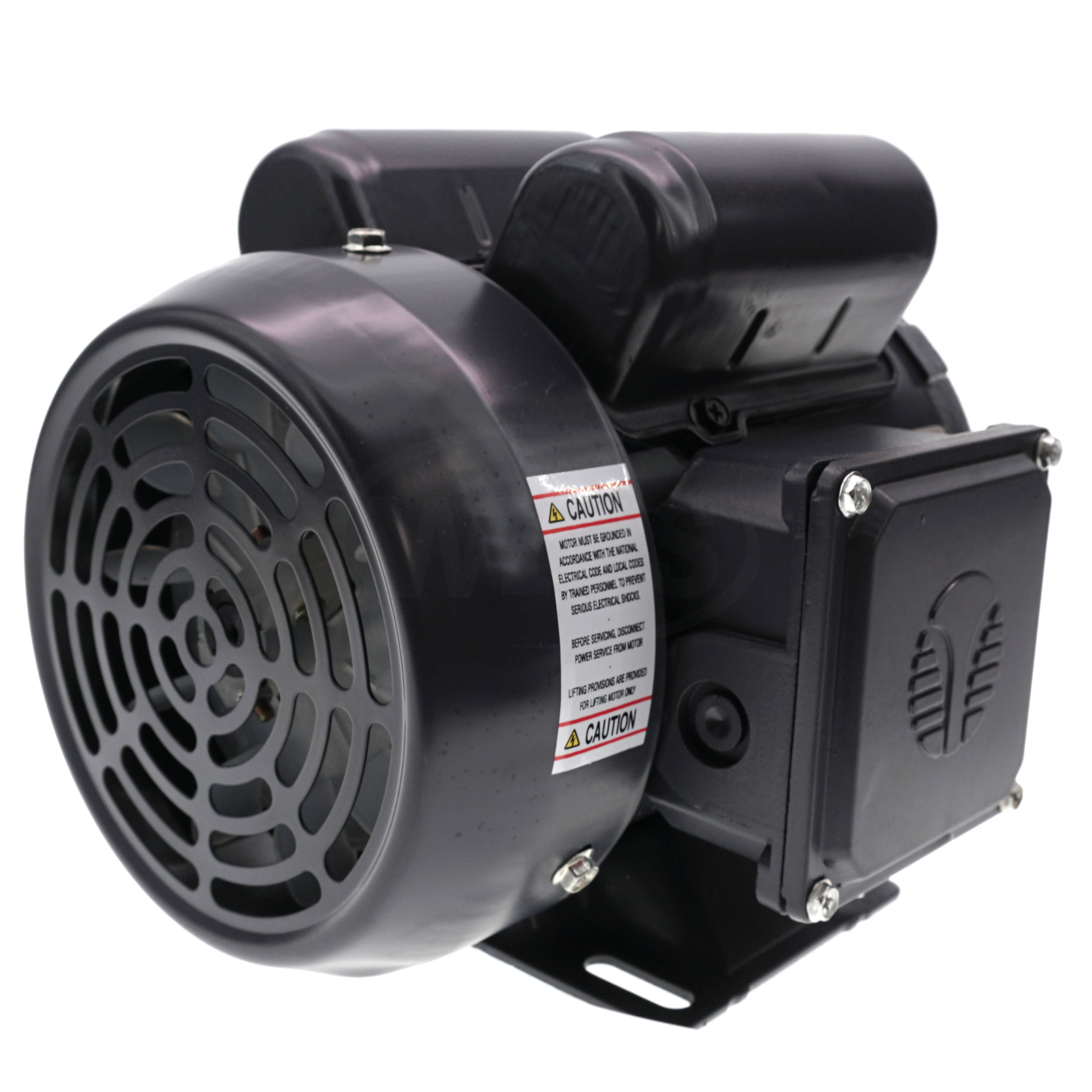

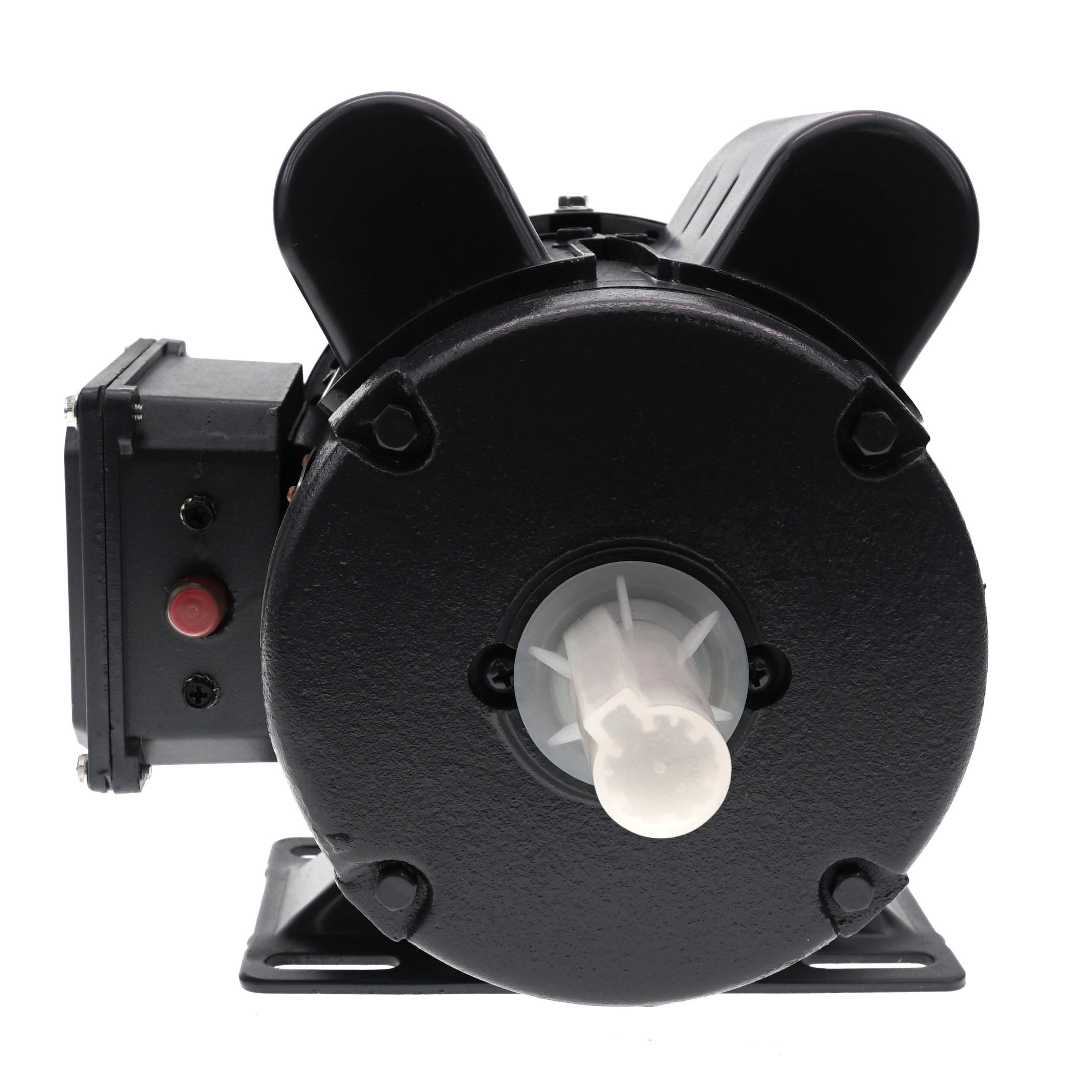

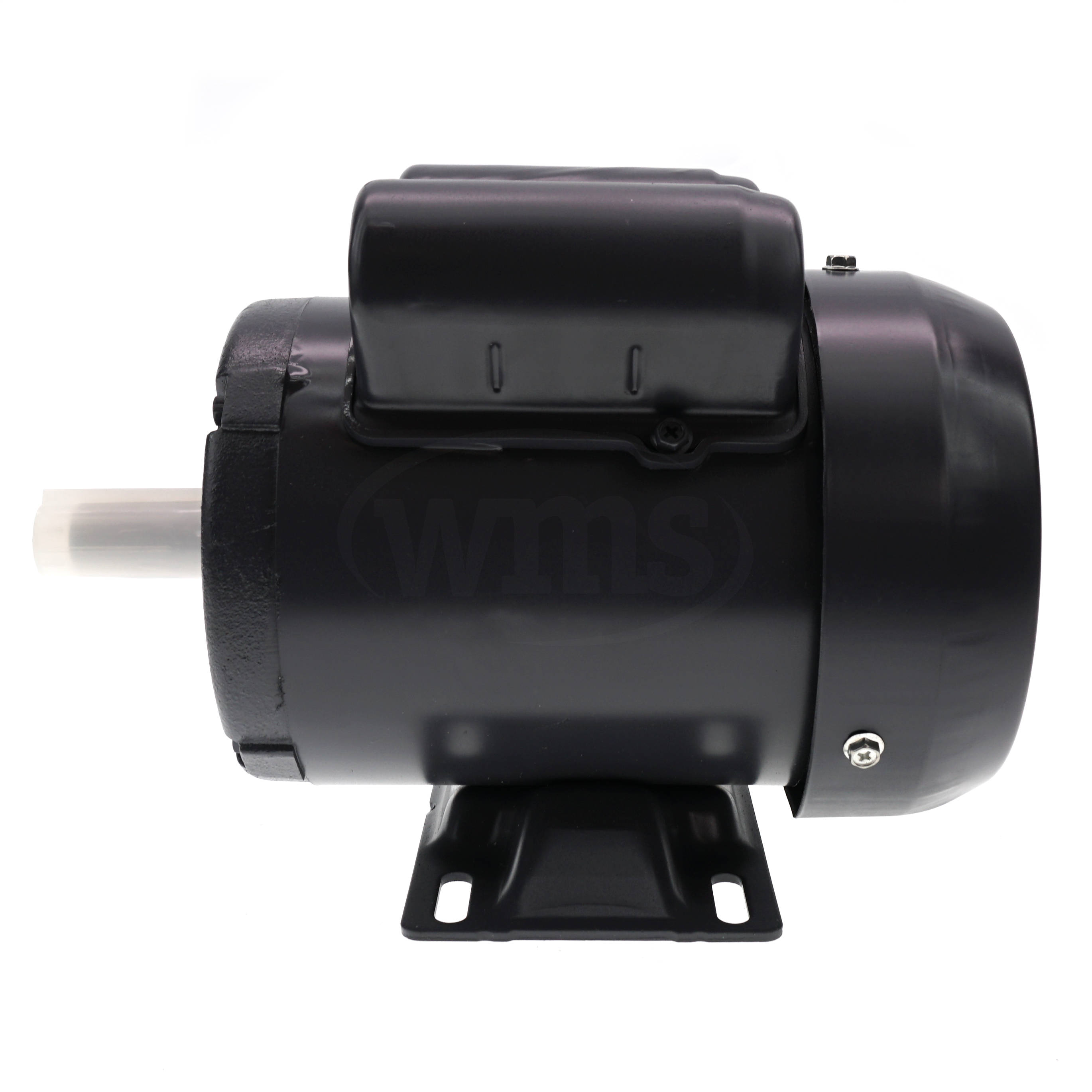

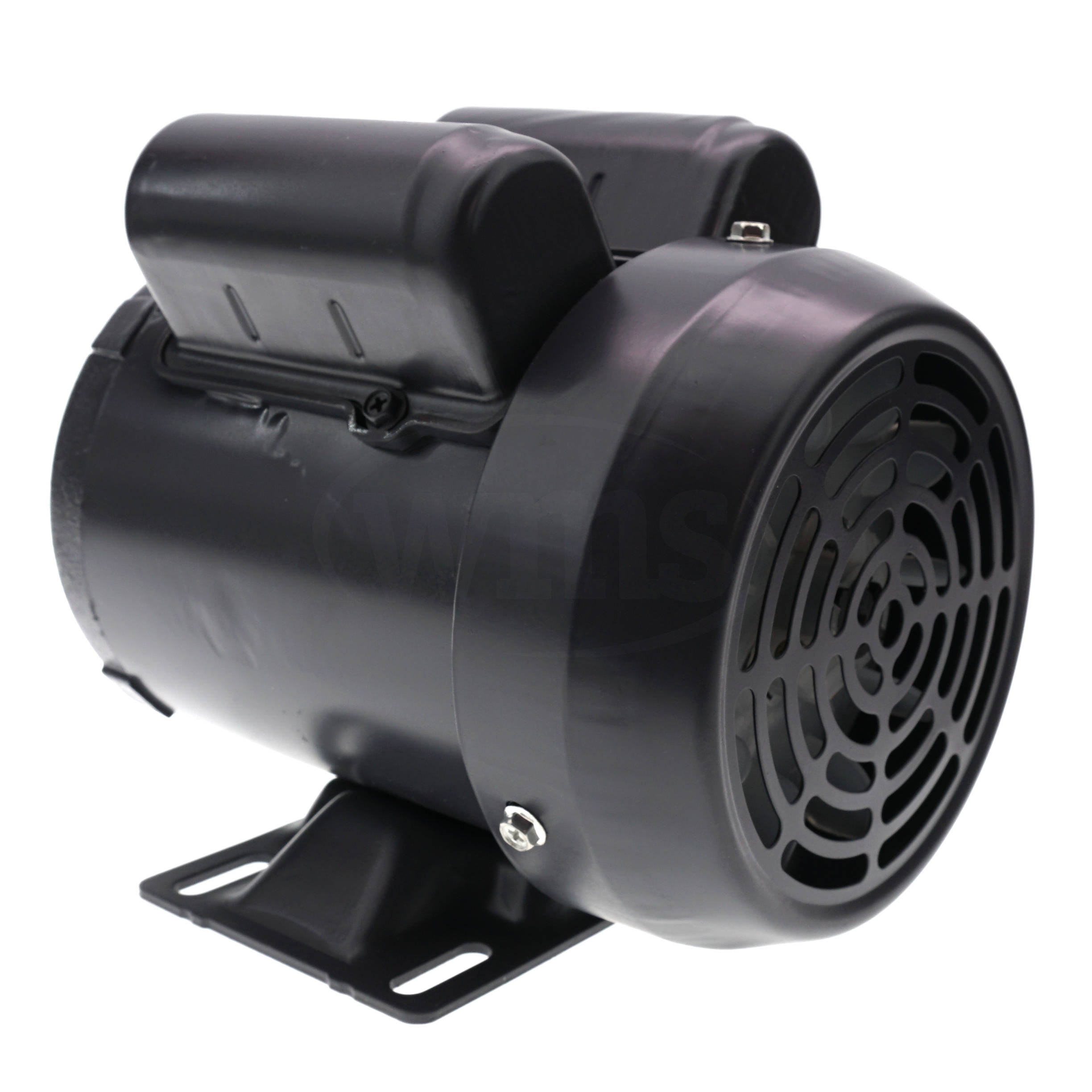

RD1RSTF564BC.33 Techtop 1/3HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1RSTF564BC.33

Selected accessories will also be added to cart

$218.02 / Each

Quantity:

Farm Duty, 1800RPM, TEFC, 56 Frame, 115/208-230V 1-Phase, Rigid Base, Rolled Steel

Details
Purchase Components

Standard Features:

Manual Reset Protector
High Efficiency Dual Cap Design
High Quality Molded Gaskets
Over 300% Starting Torque
Cast Iron End Bells
Dual Oversized Ball Bearings
Dependable Mechanical Starting Switch
18 Month Warranty

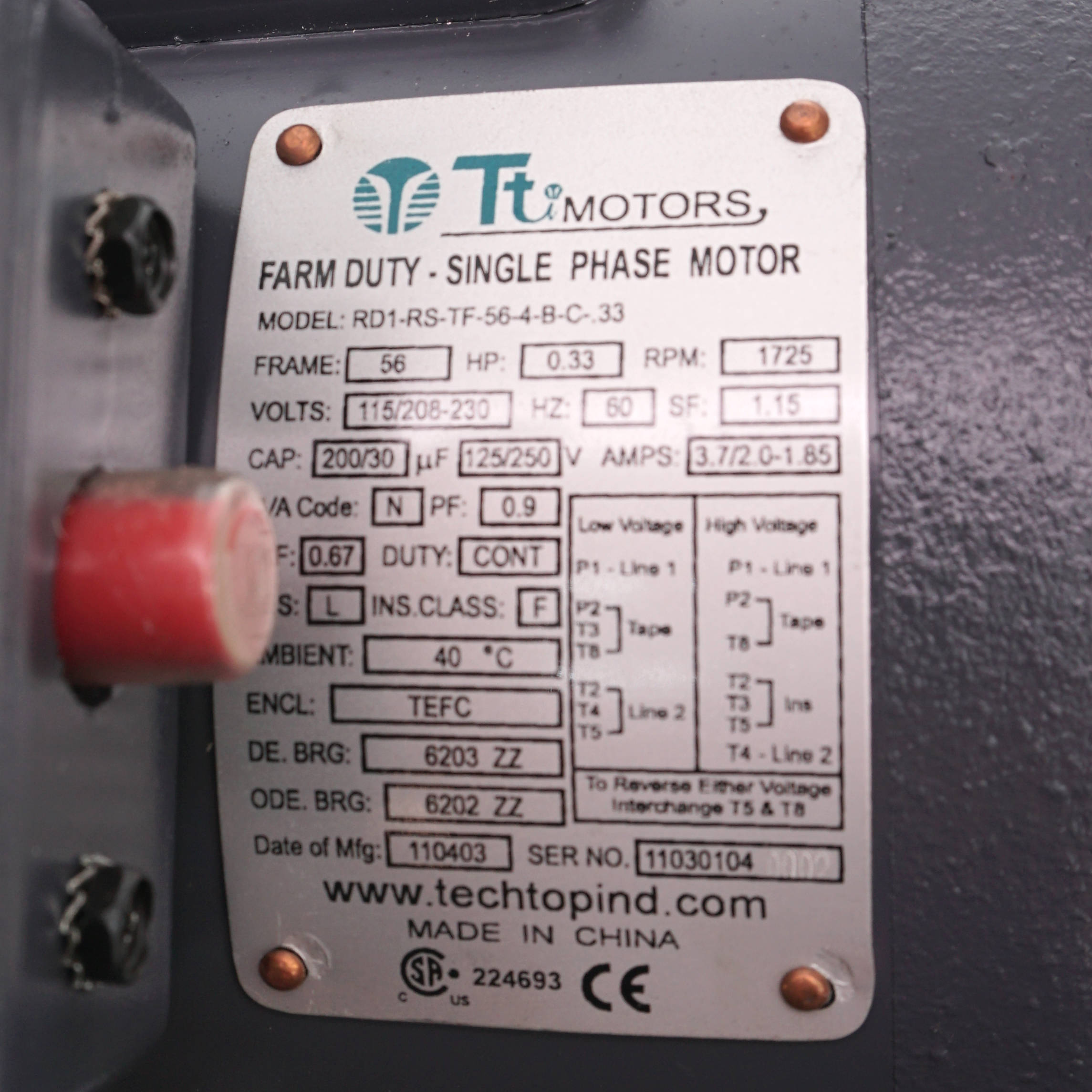

Electrical Data:

Manufacturer	Techtop
Part Number	RD1RSTF564BC.33 RD1-RS-TF-56-4-B-C-.33
Horsepower	1/3 HP
Speed	1740 RPM
Voltage	115/208-230V
Phase	Single (1)
Full Load Amps	3.7/2.0-1.85 A
Power Factor	0.90
Nominal Efficiency	67.0 %
Service Factor	1.15
KVA Code	K
LRC @ 60Hz HV	12.087
Start Capacitor	SCAP125V-200UF
Run Capacitor	RCAP250V-30UF
Number of Leads	7

General Data:

Frame Size	56
Frame Enclosure	TEFC
Mounting	Rigid
Insulation Class	F
Duty	Continuous / S1
NEMA Design	L
Frame Material	Rolled Steel
Ingress Protection	IP54
Cable Entry	0.88”
Double Drilled
Paint Color	Graphite Gray
Paint RAL	7024
Weight	23.0 lbs
