/Products/Ball Bearings/6200 Series Ball Bearings/62022RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6202-2RS

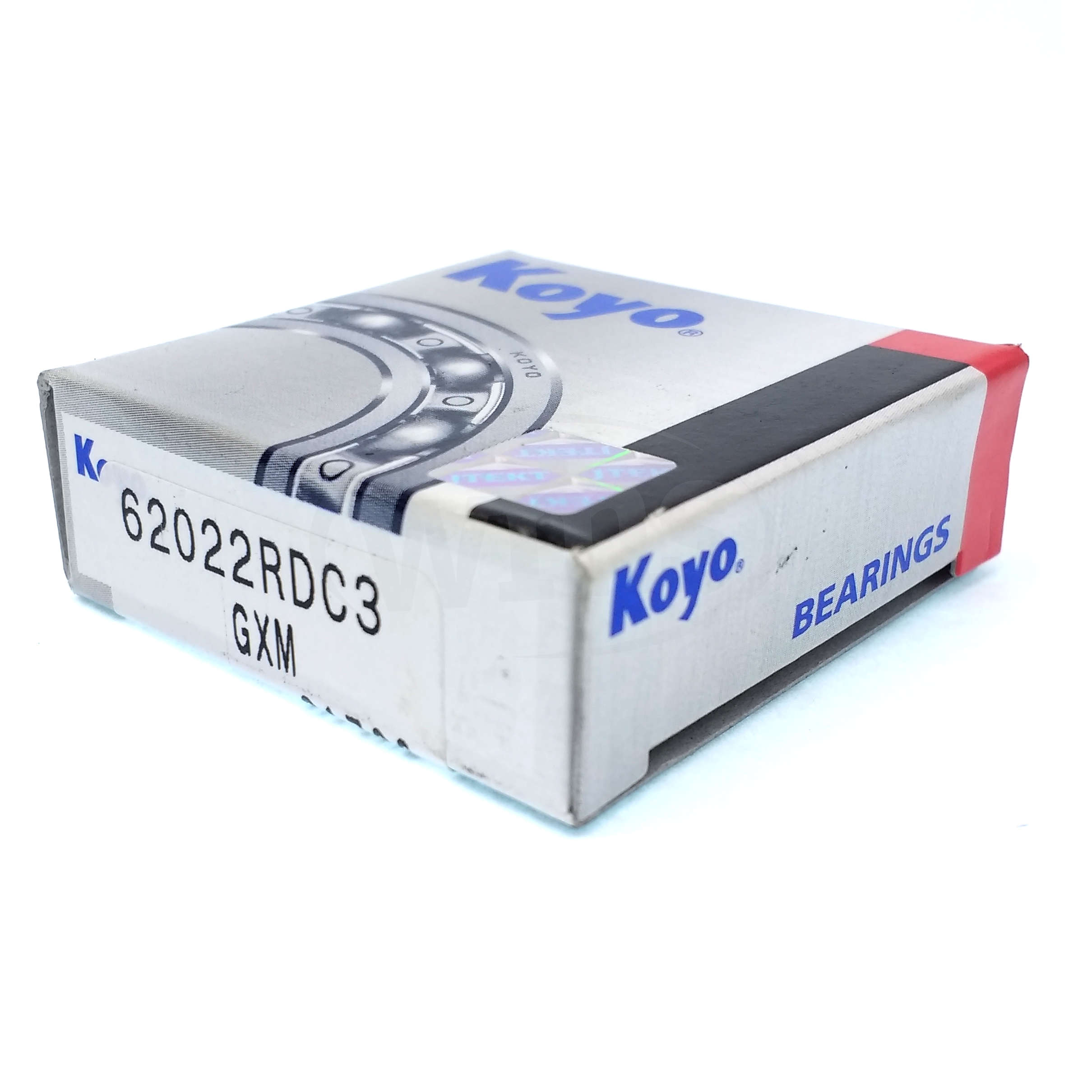

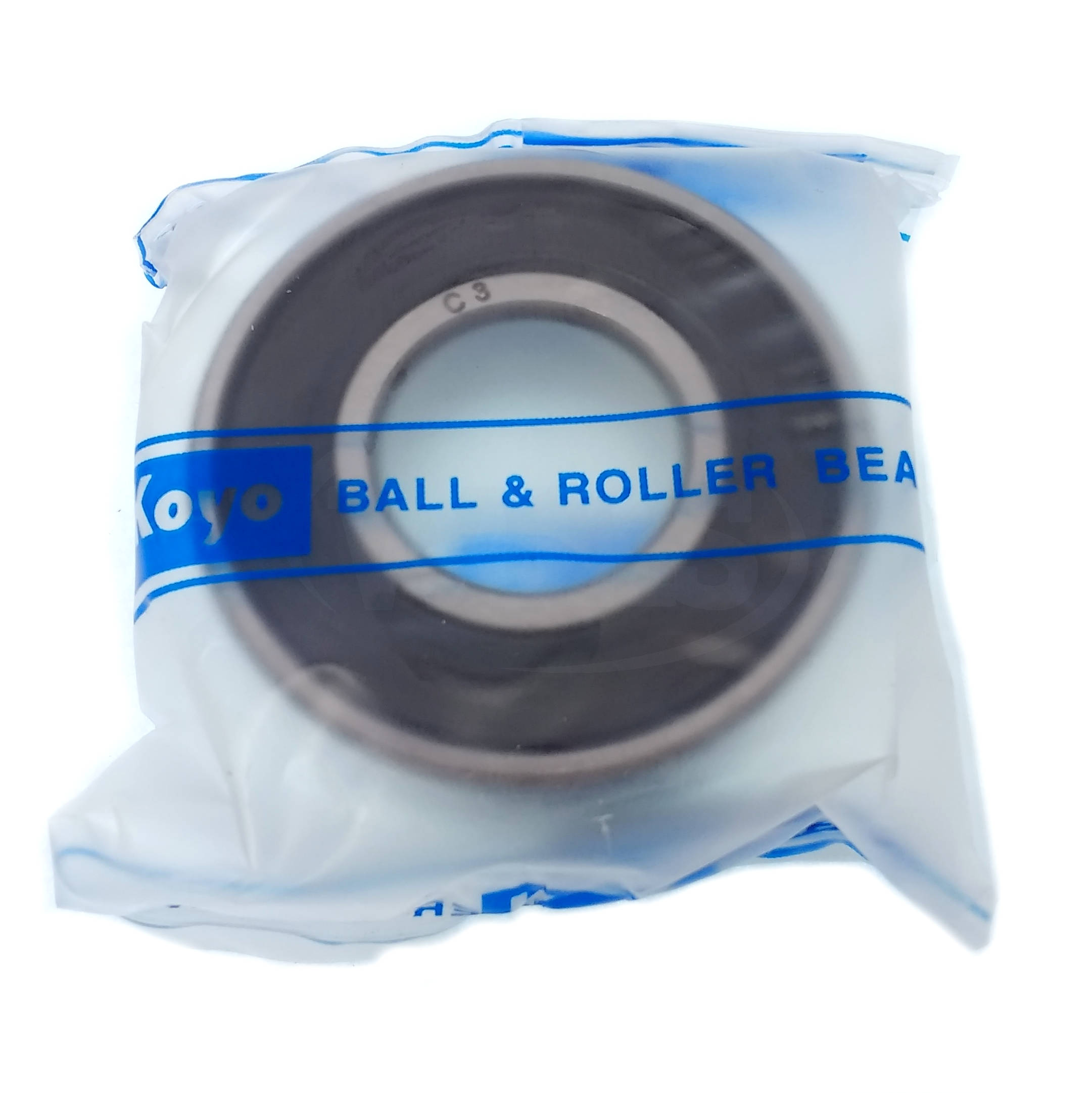

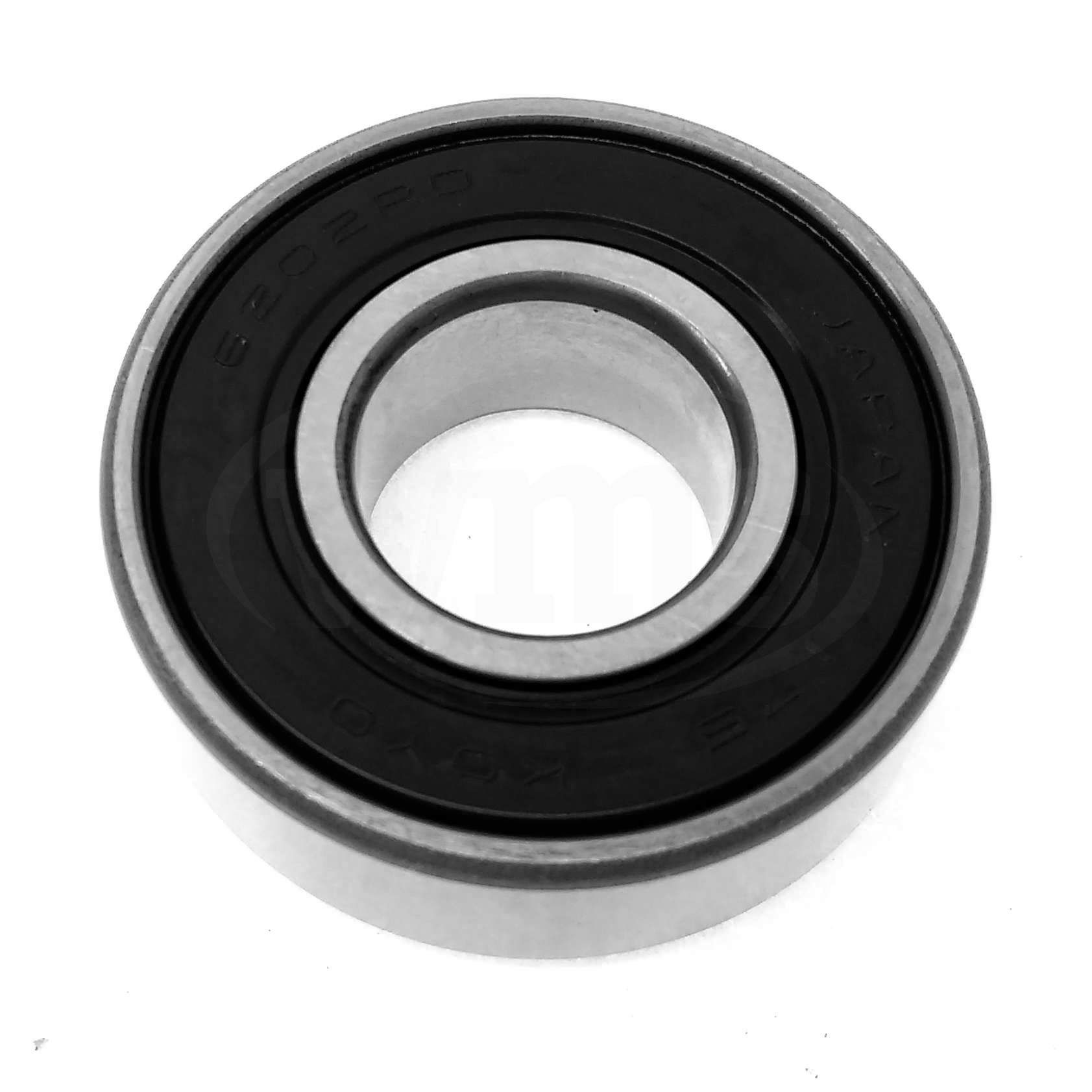

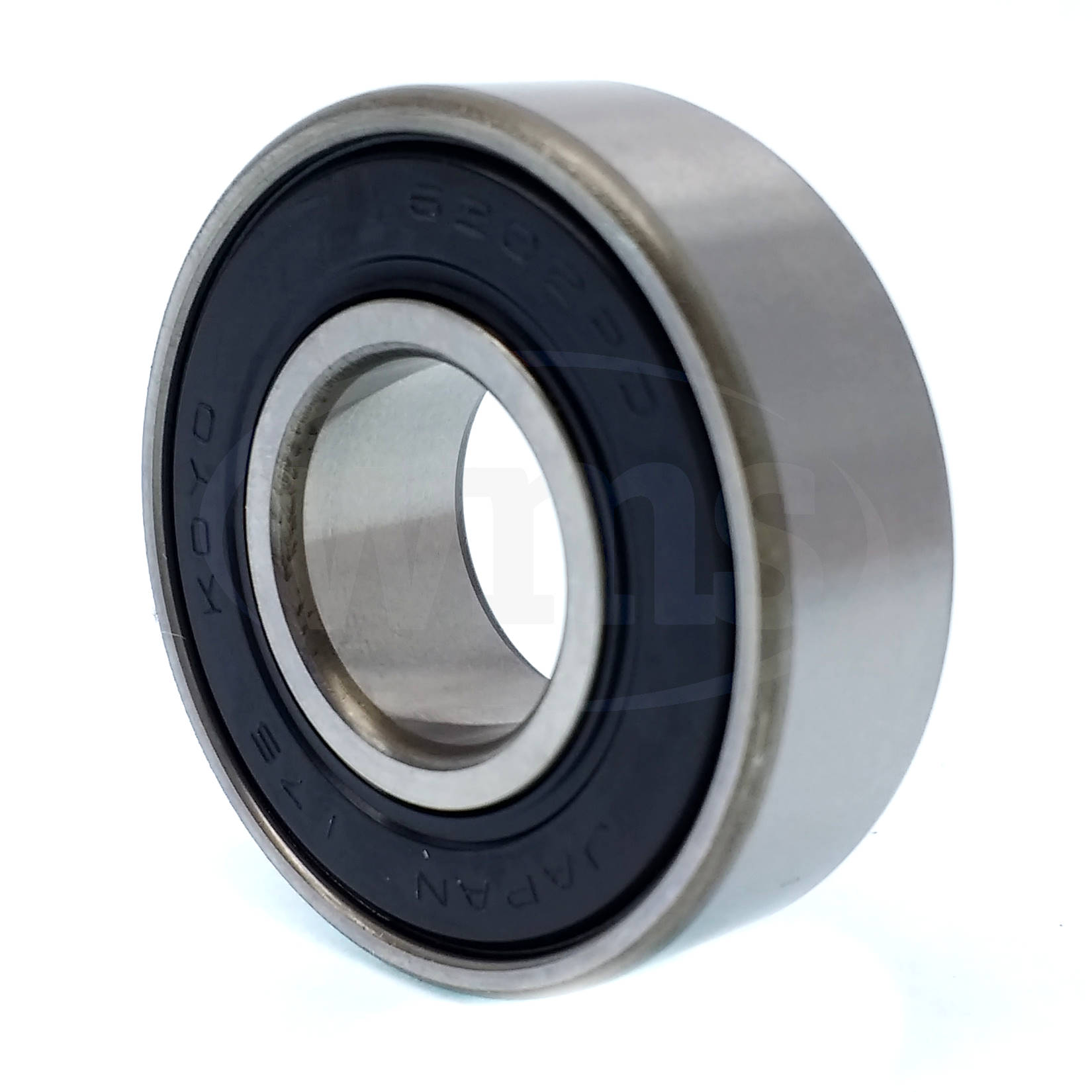

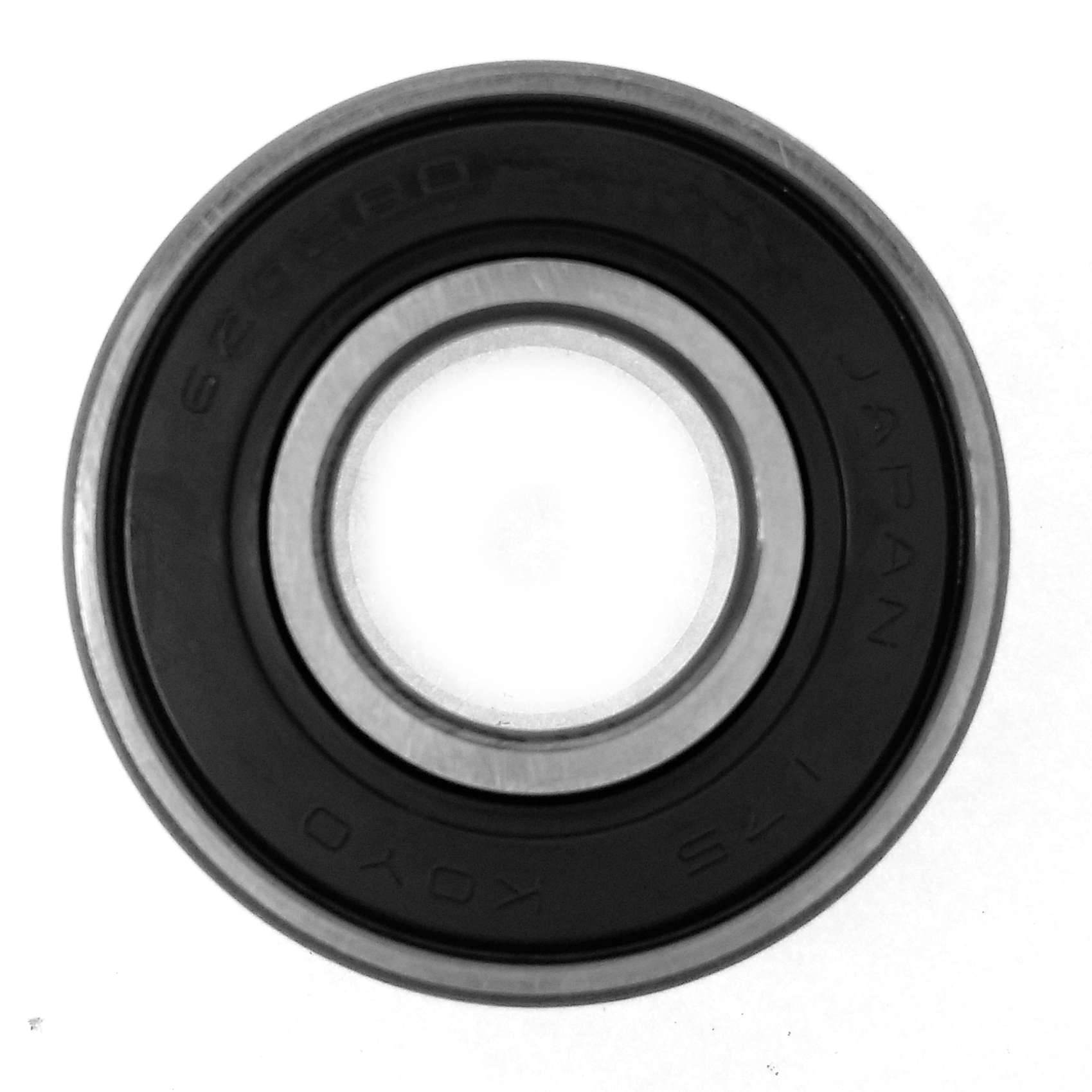

62022RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62022RDC3

Available Stock: 20
Selected accessories will also be added to cart
$8.32 / Each
Quantity:
6202-2RS, 15mm x 35mm x 11mm

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62022RDC3
Group Deep Groove Ball Bearings

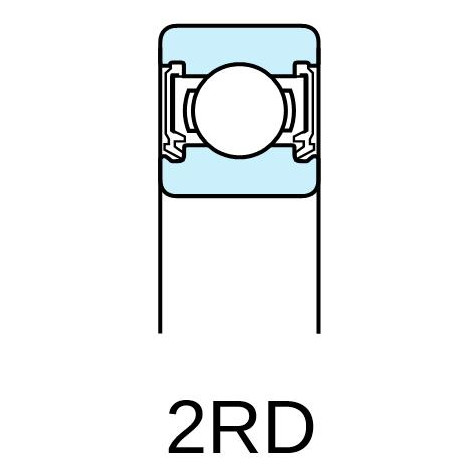

Type Extremely Light Contact Sealed (2RD)

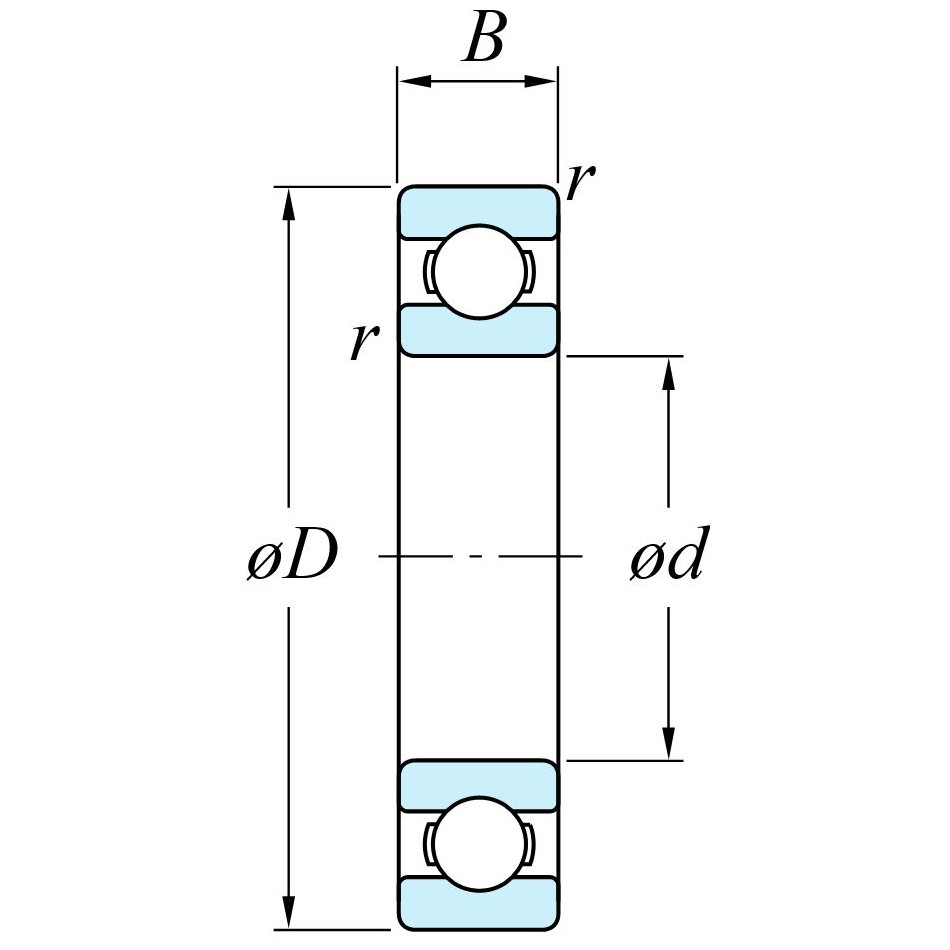

Bore / Inside Diameter (d) 15 mm
Housing / Outside Diameter (D) 35 mm
Width (B) 11 mm
Minimum Radius (r) 0.6 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 7.65 kN
C0r 3.75 kN
Limiting Speeds (Grease Lubrication) 18,000 min-1
Mass 0.045 kg
0.1 lbs
UPC 4549250152542
Country of Manufacture Japan
