/RD1-RS-TF-145T-4-B-C-1.5 Techtop 1.5HP Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: RD1RSTF145T4BC1.5

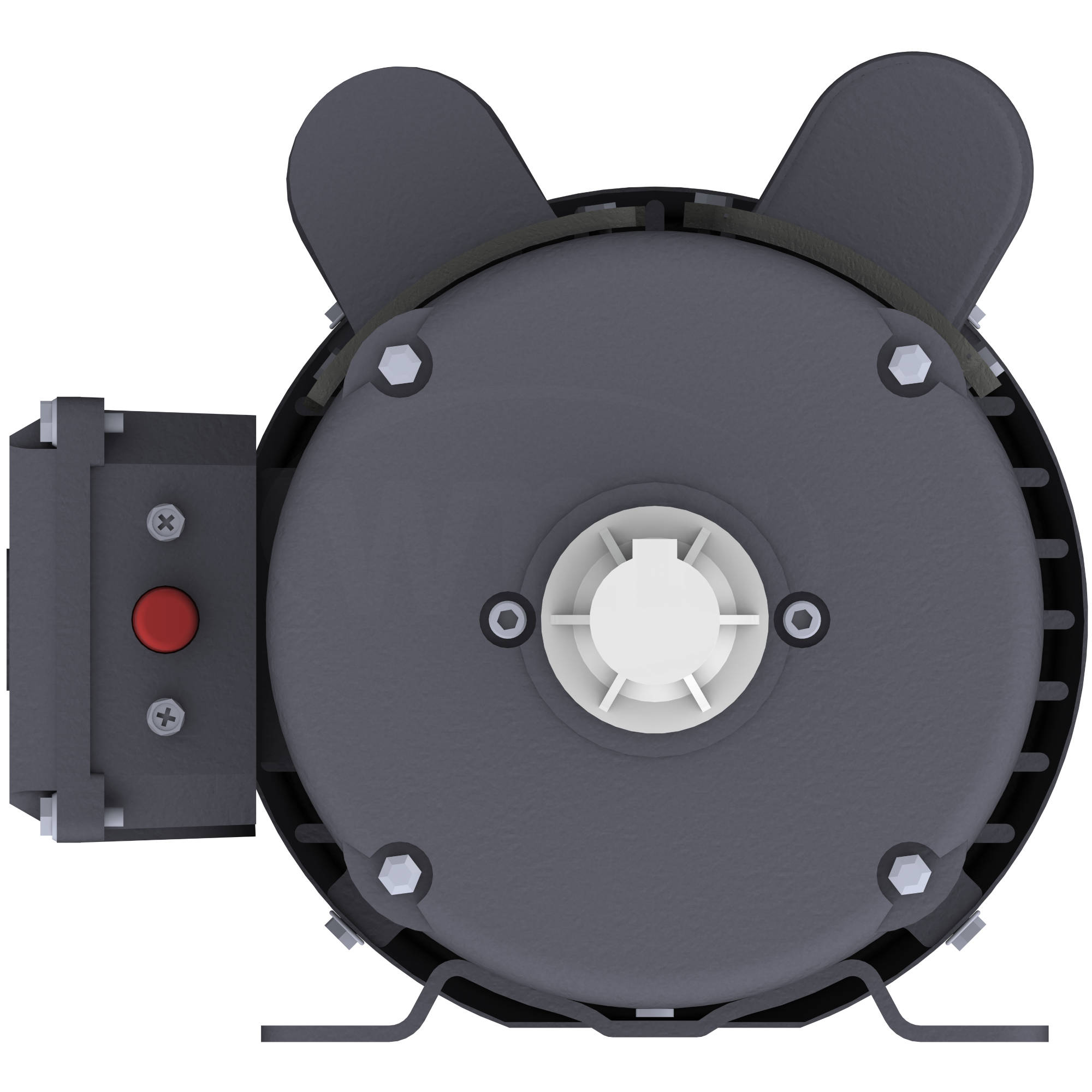

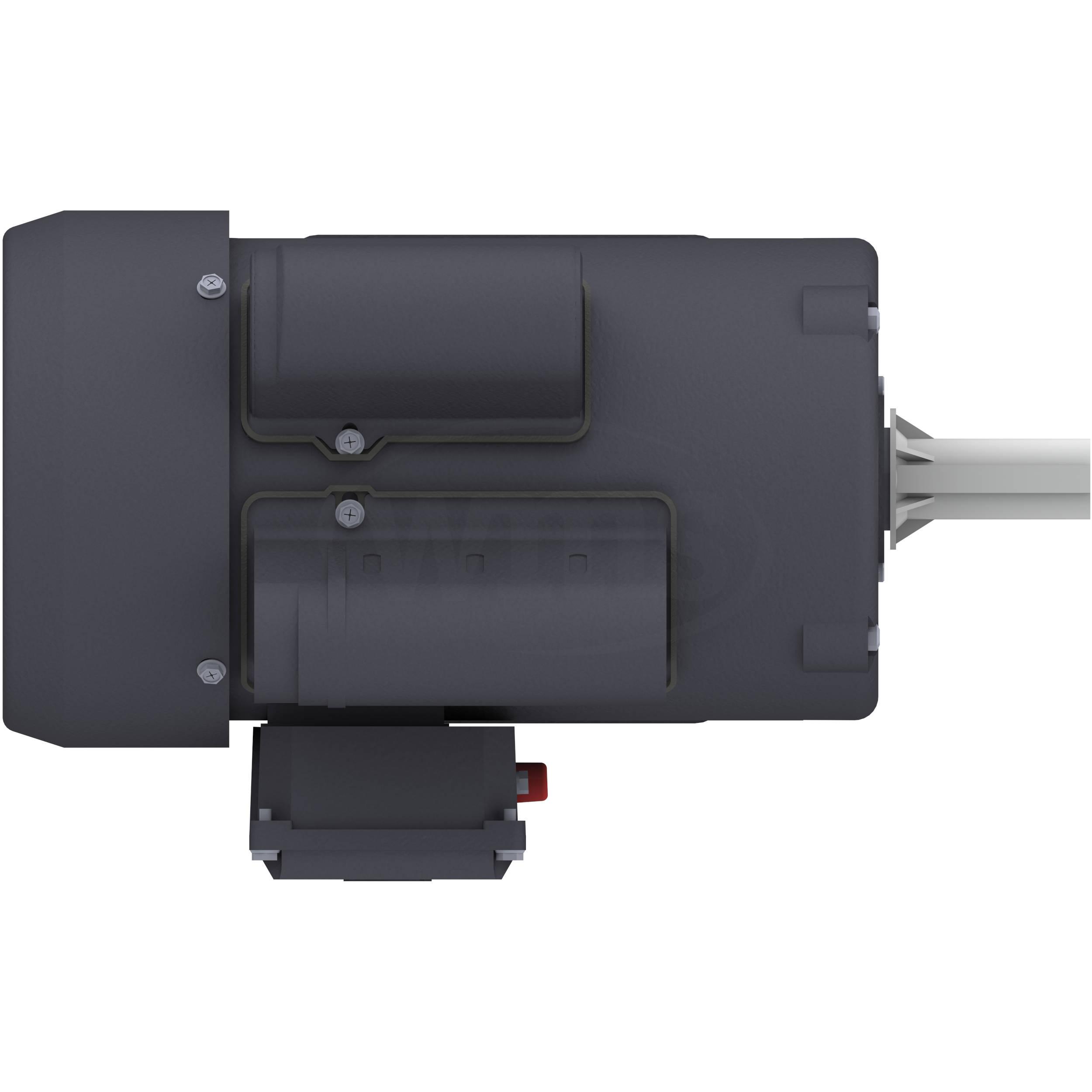

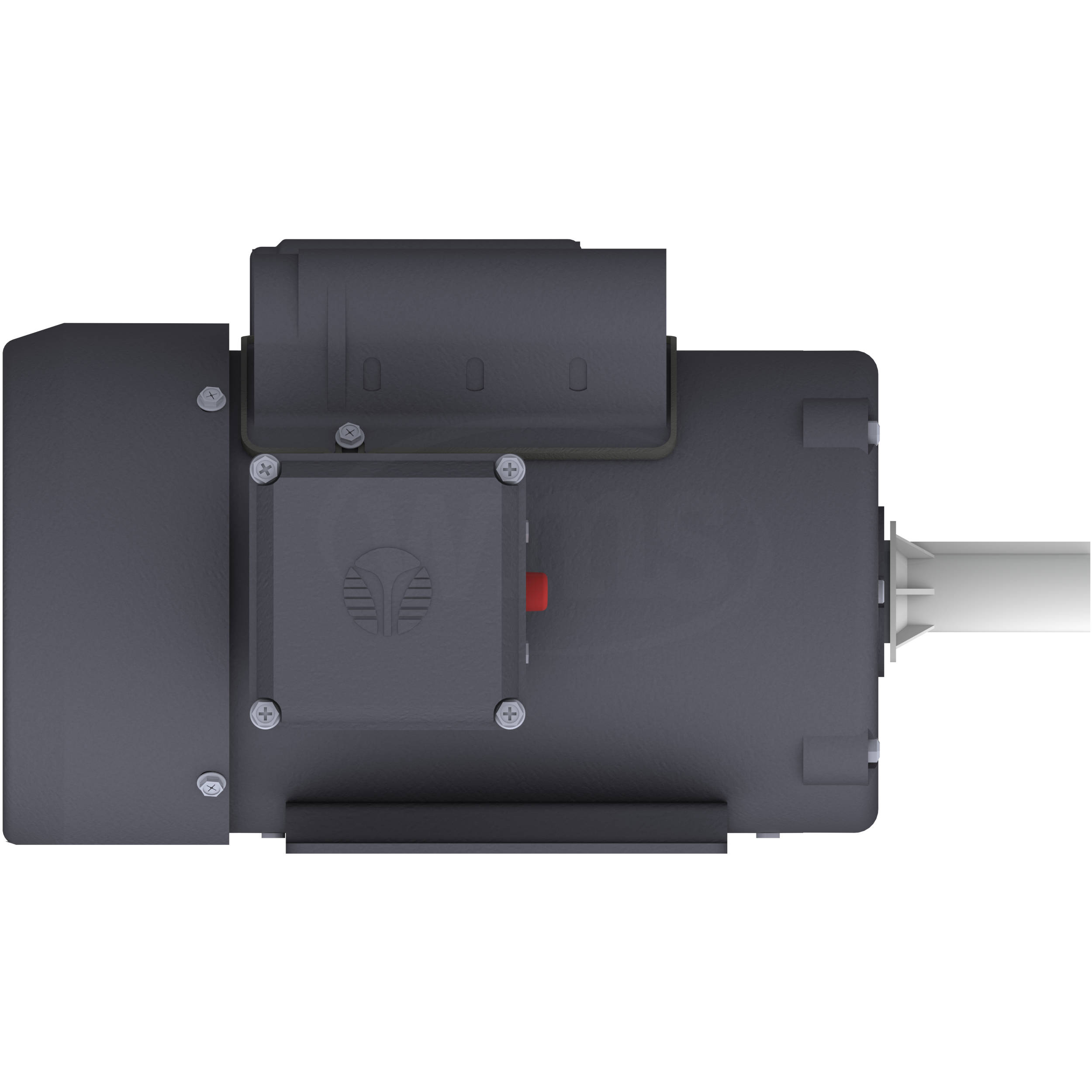

RD1-RS-TF-145T-4-B-C-1.5 Techtop 1.5HP Farm Duty Electric Motor, 1800RPM

MFG: TechTop Industries, Inc.
MFG Part Number: RD1RSTF145T4BC1.5

Selected accessories will also be added to cart

$374.09 / Each

Quantity:

TEFC, 145T Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel

Details
Purchase Components

Standard Features:

Manual Reset Protector
High Efficiency Dual Cap Design
High Quality Molded Gaskets
Over 300% Starting Torque
Cast Iron End Bells
Dual Oversized Ball Bearings
Dependable Mechanical Starting Switch
18 Month Warranty

Electrical Data:

Manufacturer	Techtop
Part Number	RD1RSTF145T4BC1.5 RD1-RS-TF-145T-4-B-C-1.5
Horsepower	1.5 HP
Speed	1740 RPM
Voltage	115/208-230V
Phase	Single (1)
Full Load Amps	13.3/7.2-6.65
Power Factor	0.92
Nominal Efficiency	79.5 %
3/4 Load Efficiency	-
Service Factor	1.15
KVA Code	H
Full Load Amps @ 208V	7.2 A
LRC @ 60Hz HV	43.3371
Start Capacitor	SCAP165V-400UF
Run Capacitor	RCAP250V-80UF
Number of Leads	7

General Data:

Frame Size	143T
Frame Enclosure	TEFC
Mounting	Rigid
Insulation Class	F
Duty	Continuous / S1
NEMA Design	L
Frame Material	Rolled Steel
Ingress Protection	IP54
Cable Entry	0.88”
Paint Color	Graphite Gray
Paint RAL	7024
Weight	48.0 lbs
