/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base/R403 Marathon 0.33HP/0.25kW IEC Metric Globetrotter Electric Motor, 3600RPM
Click Image to Expand

Product ID: 063T34FH5304

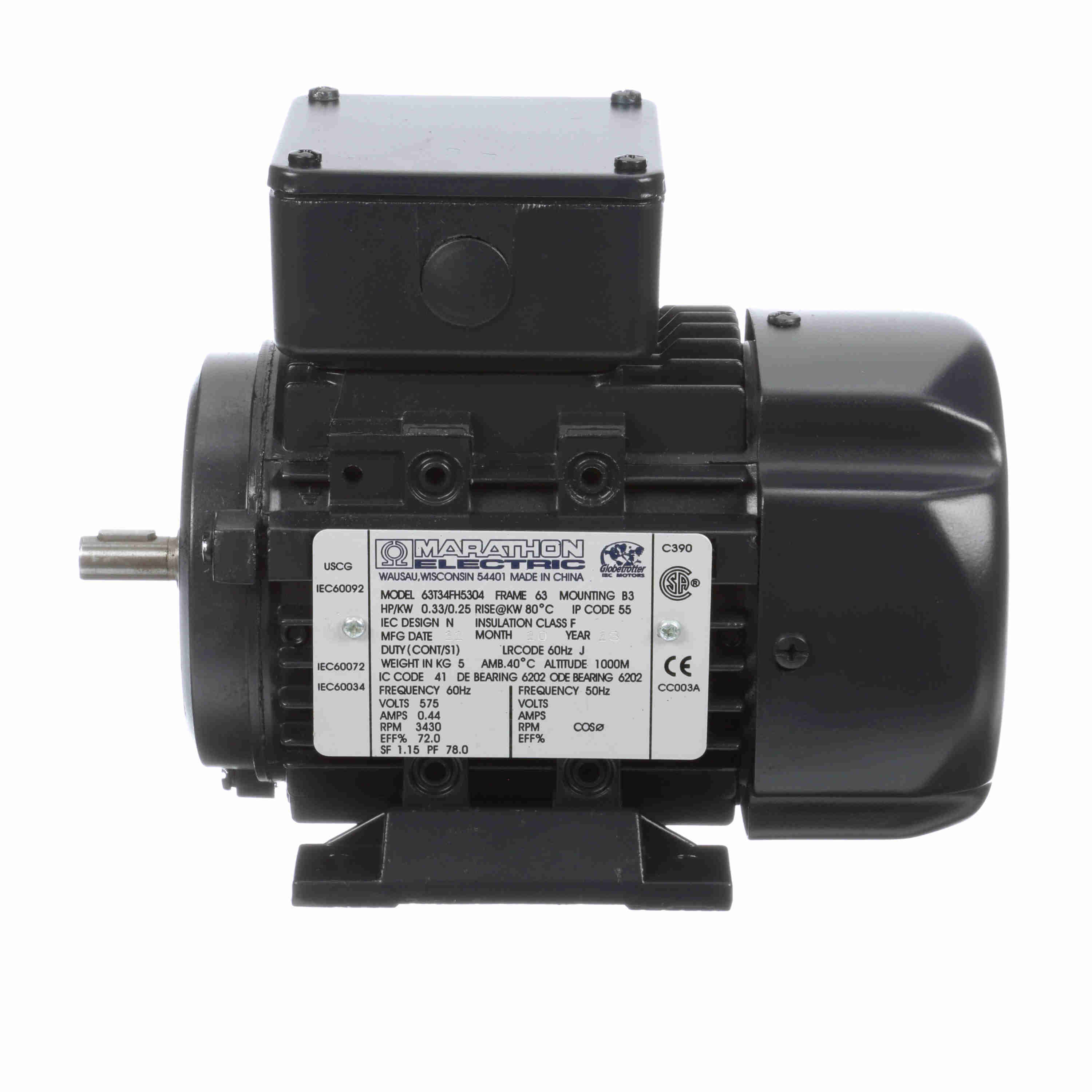

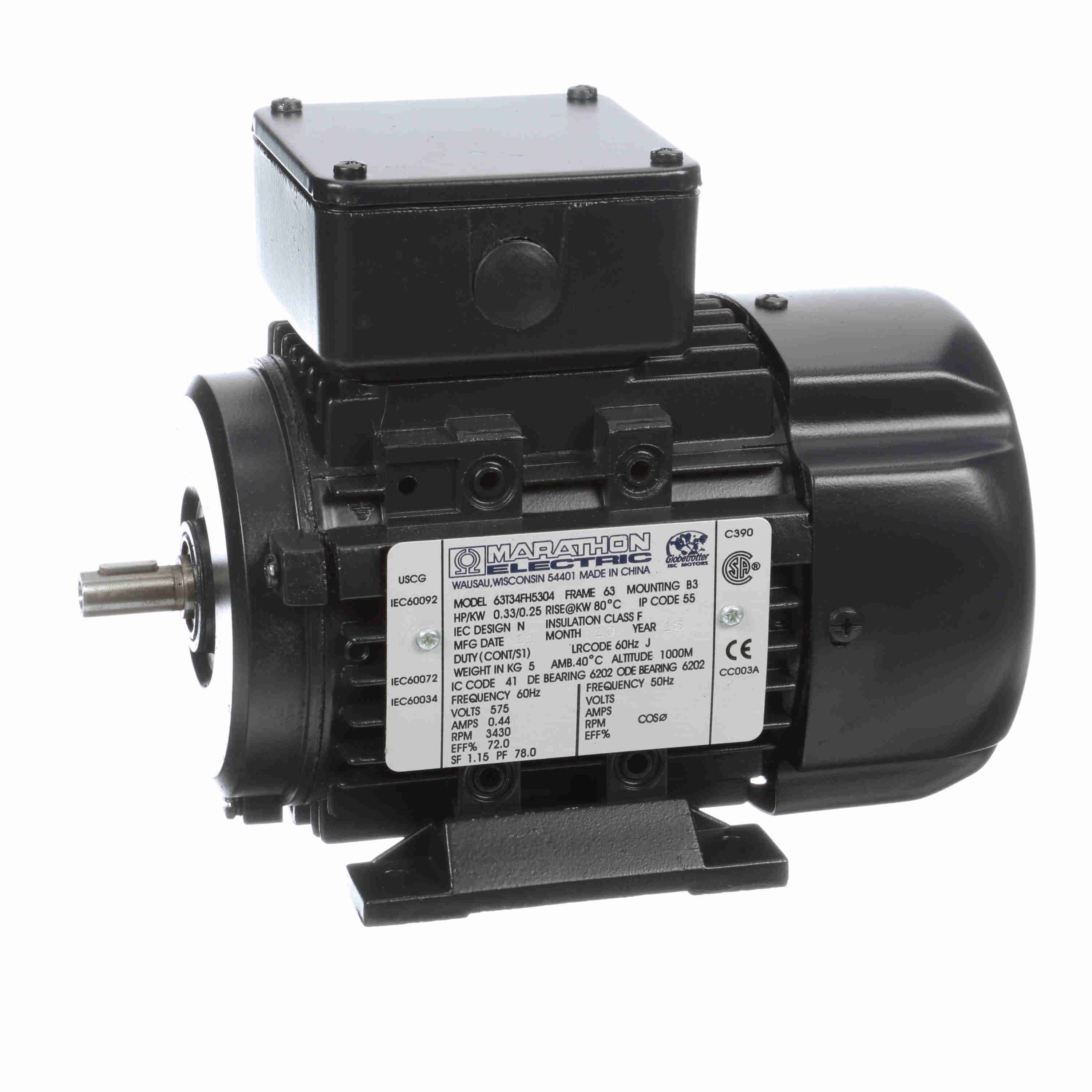

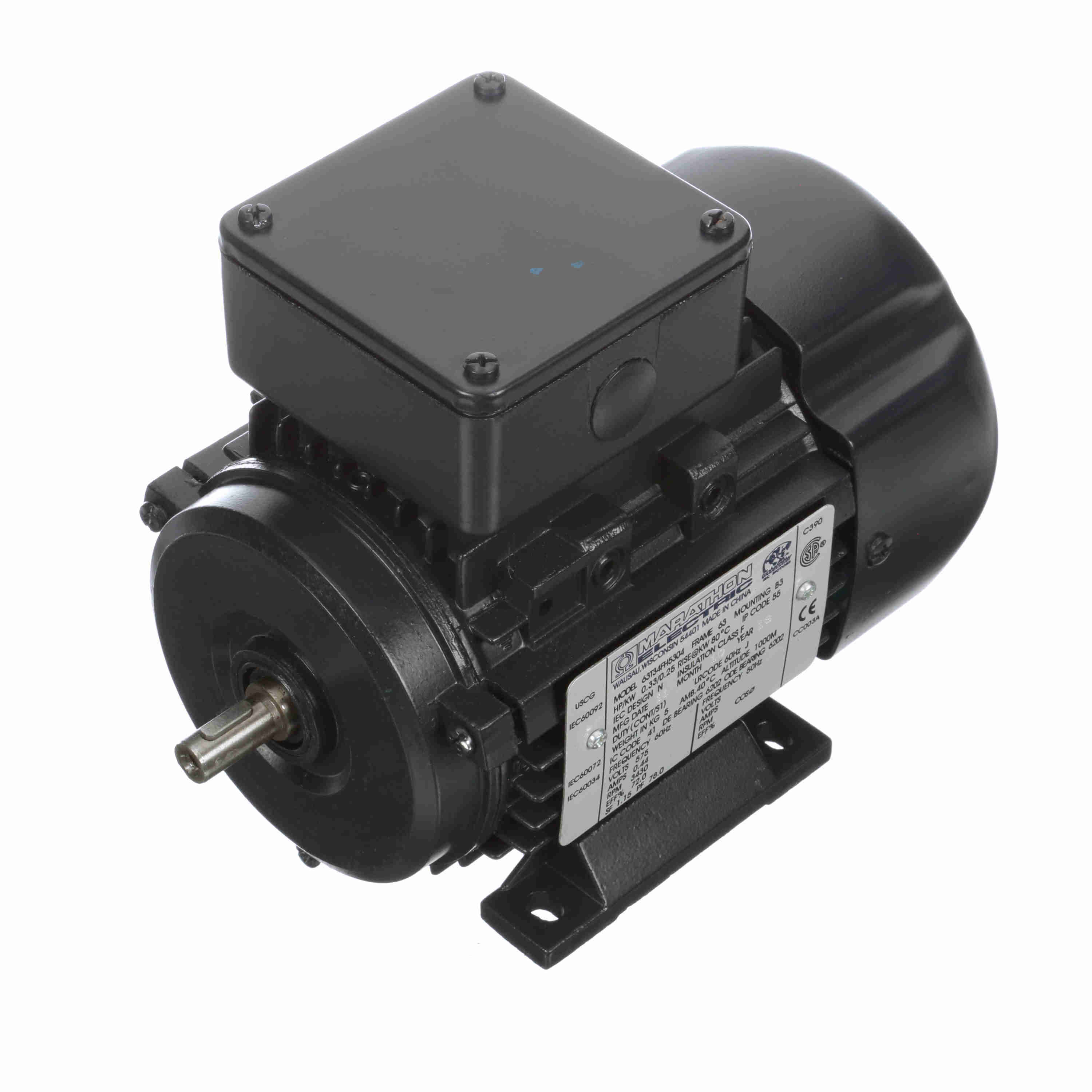

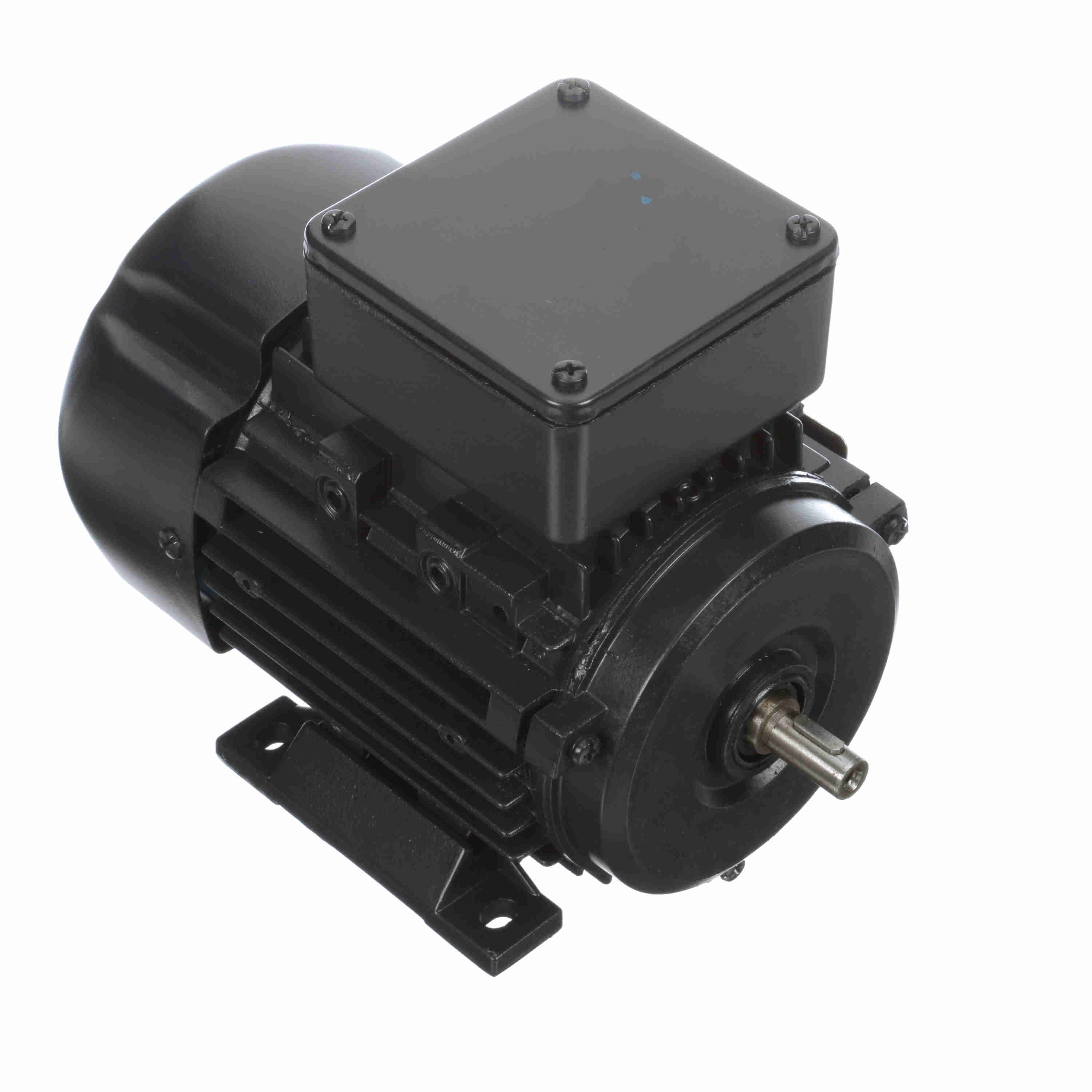

R403 Marathon 0.33HP/0.25kW IEC Metric Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 063T34FH5304

Selected accessories will also be added to cart
$78.97 / Each
Quantity:
TEFC, IP55, 63M Frame, 575VAC 3-Phase 60Hz, 063T34FH5304, Rigid Base, Aluminum Frame, 11mm Keyed Shaft

Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • Aluminum (63-90 frame) or Cast Iron (100-315 frame) frame construction
  • Nameplated 60/50 hertz at same HP, above 90 frame is 60/50 Hz at next lower HP
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • IP55 weatherproof enclosure, Rotatable/Removable Base (63-90 frame)
  • Wye Start-Delta Run on 160 Frame and larger
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD, IEC Design “N” with NEMA “B” Torques
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)

General Specifications

UPC: 722856026378 Weight: 15.00 LB
Packaged Length: 10.24 IN Packaged Width: 6.89 IN
Packaged Height: 7.48 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 575 V
Current: 0.44 A Speed: 3430 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 72 % Power Factor: 78
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 63M Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6202 Opp Drive End Bearing Size: 6202
UL: Recognized CSA: N
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 111.5 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 8.54 in
Frame Length: 4.44 in Shaft Diameter: 0.428 in
Shaft Extension: 23 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 2.60 591.0 23.20 290.0 0 0.00 0.0 0.33
Break-Down 0.00 0.0 28.00 350.0 0 0.00 0.0 0.33
Pull-Up 0.00 0.0 22.80 285.0 0 0.00 0.0 0.33
Full Load 0.44 100.0 8.00 100.0 0 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.28 0.29 0.34 0.40 0.44 0.52 0.60
Rated Output (KW) 0.05 0.14 0.20 0.28 0.34 0.42 0.50
Efficiency (%) 0.0 49.2 62.0 68.4 72.2 71.0 70.4
Power Factor (%) 18.6 47.1 59.4 69.3 78.0 80.1 84.2
Speed (RPM) 3,583 3,542 3,510 3,469 3,432 3,390 3,340
Temp. Rise @ FL 0.0 0.0 0.0 0.0 29.0 0.0 0.0
Torque (ft-lbs) 0.00 2.13 4.00 6.13 8.10 9.79 11.95
